Intellinet Industrial 8-Port Gigabit Ethernet PoE+ Layer 2+ Web-Managed Switch with 2 SFP Ports, IEEE 802.3at/af PoE Compliant, PoE Power Budget up to 240 W, Layer 2+/Layer 3 Lite, IP30-Rated

8-Port Gigabit Ethernet PoE+ L2+ Web-Managed Industrial Switch with 2 SFP Ports Managed High-Power PoE+ Connectivity for Harsh Industrial Environments

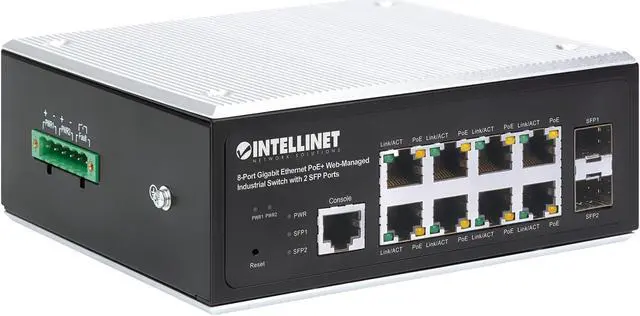

The 8-Port Gigabit Ethernet PoE+ Web-Managed Industrial Switch with 2 SFP Ports from Intellinet Network Solutions is designed to provide robust network connections and reliable device power in challenging environments. Encased in a rugged, IP30-rated metal housing, this switch operates efficiently and quietly in extreme temperatures ranging from -40 to 185°F (-40 to 85°C). The switch, with its DIN-rail mounting option and dual redundant DC power inputs featuring a power failure alarm, is an ideal solution for IoT applications in Industry 4.0 and beyond.

Self-Healing Network with Increased Reliability and Stability - Intellinet Powered Device Monitor (PDM)
This Power over Ethernet switch is equipped with Powered Device Monitoring (PDM), a self-healing PoE function. The PoE watchdog performs a PD alive check on all connected devices and automatically resets unresponsive devices, such as PoE security cameras, by cutting off and restoring power. The PDM function is particularly beneficial in scenarios where connected devices are critical to network operations, such as in industrial or surveillance settings. This feature also minimizes unnecessary technical support calls and costly field visits, as the functional reboot often brings unresponsive devices back online.

Gigabit Speeds Paired with a Large Power Budget

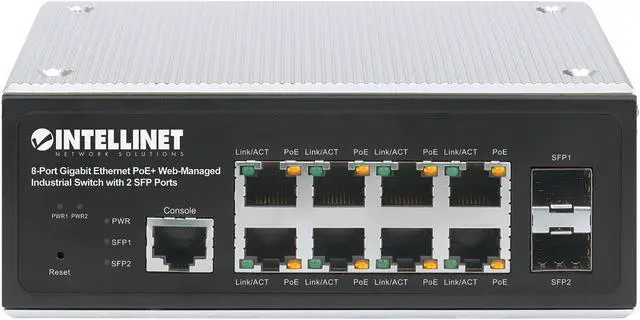

Featuring eight auto-sensing 10/100/1000 Mbps RJ45 Gigabit Ethernet ports, this managed switch delivers high performance for all network devices. It boasts a power budget of 240 W, distributing up to 30 W per port (per IEEE 802.3at standard). Additionally, two small form-factor pluggable GBIC module slots (SFP) provide fiber connectivity for extended distances.

Advanced Management and Security Features

This PoE switch offers an extensive range of advanced management functions for full network control and protection against ARP attacks. Features include VLAN, port aggregation, QoS, port mirroring, SNMP management, and Remote Monitoring (RMON). Port binding allows a specific MAC address to be linked to a port, granting exclusive network access to that MAC. With 802.1X port-based access control, user authorization is required for network access. The access control list (ACL) enables defining access privileges based on IP or port number.



- Provides power and data connections for up to eight PoE network devices

- Saves installation costs by delivering data and power over existing network cables

- Self-Healing Network - the Powered Device Monitor feature (PDM) restarts any connected PoE device that fails to respond or send out network traffic

- Domotz compatible for cloud management (may require firmware upgrade)

- IP30-rated metal housing to withstand harsh industrial conditions

- Wide operating temperature: -40 85 (-40 185°F)

- Option for DIN-rail installation

- 10/100/1000 auto-sensing ports that automatically detect optimal network speeds

- Two small form-factor pluggable GBIC module slots (SFP)

- IEEE 802.3at/af-compliant RJ45 PoE/PoE+ output ports

- Power output up to 30 watts per port

- PoE power budget of 240 watts (depending on the power supply used)

- Two redundant DC inputs (45 57 V) with I/O terminal block

- Power failure alarm (one-way relay output, current load capacity 1A @ 24 V DC)

- Port surge protection up to 6 kV

- Grounding point to protect equipment from external electrical surges

- Rated for shock (IEC 60068-2-27), freefall (IEC 60068-2-32), and vibration (IEC 60068-2-6)

- 20 Gbps switch fabric

- Supports IEEE 802.3at- and IEEE 802.3af-compliant PoE devices (wireless access points, VoIP phones, IP cameras, etc.)

- Supports IEEE 802.3at/af detection and short circuit, overload, and high-voltage protection

- PoE scheduling to help save energy

- Auto-MDIX and NWay auto-negotiation support on all RJ45 ports

- Complies with the IEEE 802.3az (Energy Efficient Ethernet EEE) specification

- Green Ethernet power-saving technology deactivates unused ports and adjusts power levels based on the cable length

- SNMP Management and Remote Monitoring (RMON)

- Supports VLAN (tag-based and port-based)

- Supports two types of QoS: port-based and DSCP

- Provides IEEE 802.1x port-based security

- Supports link aggregation (trunking)

- Supports bandwidth control per port

- Supports port mirroring

- IGMP Snooping for multicast filtering

- Broadcast storm control with multicast packet rate settings

- Supports 8k MAC address entries with Auto-learning and Auto-aging

- Supports jumbo frames up to 9 kBytes

- Supports Rapid Spanning Tree/Spanning Tree Protocol

- Store and forward switching architecture

- Full/half duplex operation

- IEEE 802.3x flow control for full duplex

- Configuration via Web browser, Telnet, SSH, or console port

- LEDs for power, link activity, PoE, and SFP

- Fanless design for silent operation

- Requires additional industrial power supply (not included)

- Fully NDAA-compliant

- Three-year warranty
