Question 1

How long are the cables?

Accepted Answer

The cables are 6 ft. long.

If you're interested, I am using it to share one of three monitors between a Windows 7 machine and a Windows XP machine that I have to keep around for two legacy tape drives for which there are no Win7 drivers.  The hot key switching works perfectly and was just what I was looking for.

Question 2

Would this product work with a wireless mouse or keyboard? Specifically in my case it would be the Logitech G602 and the logitech K800 keyboard.

Accepted Answer

I have a wireless Logitech mouse.  It seems to work fine.  Mine is a slightly older model than yours.  You may want to simply plug it into the regular USB plug and not the one designated for the mouse on this KVM switch.  But other than that, it should work for you.

Once in a while, the system will not pick it up.  Just cycle the switch again.  It should be okay on the rare occasion is does that.

Question 3

If i plug a backlit keyboard, like the corsair k90 with a usb passthrough and the mouse to the keyboard, does it work? And if its work, is it work with the (Scroll lock)+(Scroll lock) shortcut? I just need the backlit to work,no need the extra special key just need the 3 button mouse to.

Accepted Answer

I have a Maxkeyboard X7 backlit keyboard.  After working with tech support at IOGEAR, they told me that my keyboard isn't "standard" because of the backlight and that it won't work with the switch.  It appears that IOGEAR has a compatibility list they keep internally but there appears to be no way to confirm that a particular keyboard or mouse is compatible without buying the switch.  There is the possibility that the keyboard will work in one of the accessory ports on the back of the switch.  The only downside to this method is that hot key commands won't be accepted by the switch.

Question 4

How many computer connections does the IOGEAR GCS1102 support?

Accepted Answer

The IOGEAR GCS1102 supports 2 ports for computer connections.

Question 5

What is the maximum video resolution supported by the IOGEAR GCS1102 2-Port DVI KVMP Switch?

Accepted Answer

The maximum video resolution supported is up to 1920 x 1200 at 60Hz.

Type	DVI, USB

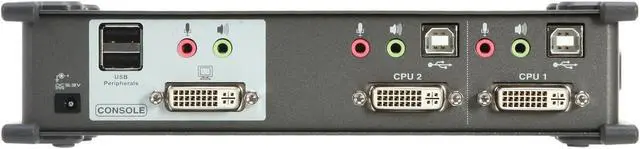

PC Connectors	Monitor: 2 x DVI-I ports (female) Microphone: 2 x Microphone jack Audio: 2 x Stereo earphone jack Keyboard & Mouse: 2 x USB Type B sockets
Console Connectors	Mouse 1 x USB Type A socket Keyboard 1 x USB Type A socket Monitor 1 x DVI-I (female) port Microphone 1 x Microphone jack Audio 1 x Stereo earphone jack
Computer Connections	2 Ports
Monitor Connections	1 Port
Video Resolution	Up to 1920 x 1200; DDC2B
PC Selection	Front Panel Switches; Hotkey
AutoScan Interval	1-99 secs (default: 5 secs)
Bandwidth	10.50
LED Indicators	Selected: 2 x Orange On Line: 2 x Orange USB Peripherals: 2 x Green

Dimensions	8.5" x 2" x 3.25"
Weight	4.34 lbs.
