IOGEAR GCS1108KIT2 8-Port DVI KVMP switch with VGA support and USB KV

Name: IOGEAR GCS1108KIT2 8-Port DVI KVMP switch with VGA support and USB KV
Brand: IOGEAR
SKU: N82E16817399112
Rating: 4 (1 reviews)

Overview

Specs

Reviews (1)

Any questions? Our AI beta will help you find out quickly.

Try me now

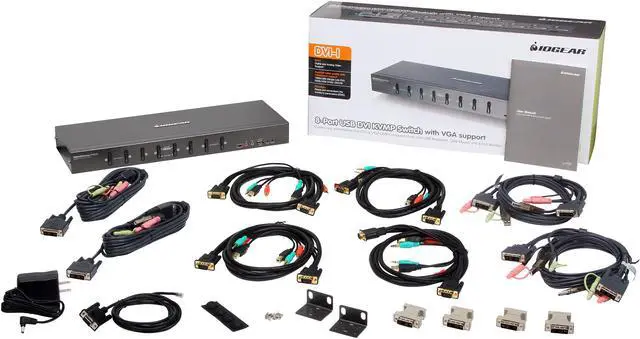

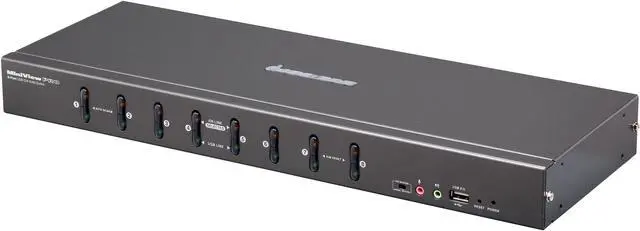

The IOGEAR 8-port USB DVI KVMP Switch is a control unit that allows access and control of up to 8 computers from a single USB keyboard, USB mouse, and dual-monitor (DVI-I and VGA) console. It can be cascaded to three levels - allowing up to 73 GCS1108s to control up to 512 computers - all from the original single console. In addition, GCS1108 comes with IOGEAR's Video DynaSync™ technology to optimize the display resolution. IOGEAR's DynaSync* technology reads and remembers the monitor's parameters (EDID) so there is no delay or change of video resolution when switching between, or booting computers.

Warranty & Returns

Return for refund within: 30 days

Return for replacement within: 30 days

Type	D-Sub, DVI, USB
PC Connectors	Monitor: 8 x DVI-I ports (female) Microphone: 8 x Microphone jack Audio: 8 x Stereo earphone jack Keyboard & Mouse: 8 x USB Type B sockets
Console Connectors	Mouse: 1 x USB Type A socket Keyboard: 1 x USB Type A socket Monitor: 1 x VGA port (female) / 1 x DVI-I port (female) Microphone: 2 x Microphone jack (1 x front panel, 1 x rear panel) Audio: 2 x Stereo earphone jack (1 x front panel, 1 x rear panel)
Computer Connections	8 Ports
Monitor Connections	2 Ports
Video Resolution	DVI: 1920 x 1200; VGA: 2048 x 1536
PC Selection	Push Buttons/Hot Keys/OSD
AutoScan Interval	1-255 secs (Default: 5 secs)
LED Indicators	Selected: 8 x Orange On Line: 8 x Orange USB Peripherals: 8 x Green Power On: 1 x Dark Green

Temperature	Operating: 0 - 50 degrees C Storage: -20 - 60 degrees C
Humidity	0 - 80% RH

Audio Features	Full bass response provides a rich experience for 2.1 channel surround sound systems
Features	One USB console controls eight DVI or VGA computers Supports both digital (DVI), analog (DVI) video and analog (VGA) Superior video quality: 1920x1200 (Single Link DVI), 2048x1536 (VGA); DDC2 Supports widescreen resolutions Multiplatform support - Windows, Linux, Mac, Sun Computer selection via front panel pushbuttons, hotkeys, and on-screen display (OSD) Includes two USB 2.0 peripheral sharing ports Independent switching of KVM and USB focus Two-level (Administrator / User) password authorization for enhanced security protection Cascadable to three levels - control up to 512 computers IOGEAR's DynaSync technology reads and remembers the monitor's parameters (EDID) so there is no delay or change of video resolution when switching between, or booting computers Complete keyboard emulation for error-free booting Console mouse port emulation / bypass feature supports most mouse drivers and multifunction mice Mac / Sun keyboard support and emulation Auto Scan Mode for monitoring all computers Broadcast mode - allows you to send commands from the console to all computers to perform operations simultaneously Firmware upgradable HDCP compatible Console audio ports on front panel for easy access

Model
Brand	IOGEAR
Model	GCS1108KIT2
