IOGEAR GCS1208 8-Port Dual Link DVI KVMP with VGA Support

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

The IOGEAR 8-port USB Dual Link DVI KVMP Switch is a control unit that allows access and control of up to 8 computers from a single USB keyboard, USB mouse, and either a DVI or VGA monitor console. It can be cascaded to three levels - allowing up to 73 GCS1208s to control up to 512 computers - all from the original single console. In addition, GCS1208 comes with IOGEAR's Video DynaSync™ technology to optimize the display resolution. IOGEAR's DynaSync technology reads and remembers the monitor's parameters (EDID) so there is no delay or change of video resolution when switching between, or booting computers.
Switching between computers can be easily accomplished either by manually pressing the front panel push buttons, entering hotkey combinations from the keyboard, or via on-screen display (OSD) system. A convenient auto-scan feature permits automatic scanning and monitoring of activities on all connected.

Model
Brand	IOGEAR
Model	GCS1208

Features
Features	One USB console controls eight DVI or VGA computers Supports both digital (DVI), analog (DVI) video and analog (VGA) Superior video quality: 2560x1600 (Dual Link DVI), 1920x1200 (Single Link DVI), 2048x1536 (VGA); DDC2 Supports widescreen resolutions Multiplatform support - Windows, Linux, Mac, Sun Includes two USB 2.0 peripheral sharing ports Independent switching of KVM and USB focus Two-level (Administrator / User) password authorization for enhanced security protection Cascadable to three levels - control up to 512 computers IOGEAR's DynaSync technology reads and remembers the monitor's parameters (EDID) so there is no delay or change of video resolution when switching between, or booting computers Audio enabled - Full bass response provides a rich experience for 2.1 channel surround sound systems Complete keyboard emulation for error-free booting Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice Mac / Sun keyboard support and emulation Auto Scan Mode for monitoring all computers Broadcast mode - allows you to send commands from the console to all computers to perform operations simultaneously Firmware upgradable HDCP compatible Console audio ports on front panel for easy access

Dimensions & Weight
Dimensions	1.75" x 6.3" x 17.2" (HXDXL)
Weight	6.4 lbs.

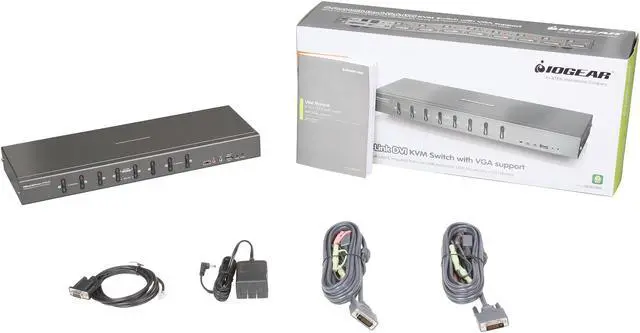

Package Contents
Package Contents	1 x GCS1208 8-port USB Dual Link DVI KVMP Switch 2 x Custom USB Dual Link DVI-D KVM Cable Sets (G2L7D02UD) 1 x Firmware Upgrade Cable 1 x Power Adapter 1 x Foot Pad Set (4 pcs) 1 x User Manual 1 x Rack Mounting Kit
