The GCS1716 KVM is a combo switch allowing access and control of up to 256 computers from a single console (keyboard, mouse, and monitor). As many as 16 additional switches can be cascaded bringing the total number of connected computers to 256 computers that can be controlled from a single keyboard-monitor-mouse console. A custom ASIC provides an auto-sensing function that recognizes the position of each station on the installation, eliminating the need to manually set the position with DIP switches. Additionally, the GCS1716 features high density SPHD 15-pin instead of the usual 25-pin connectors thus allowing for a compact design and installation in a 1U system rack.

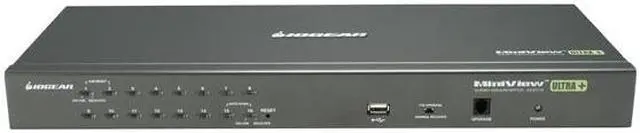

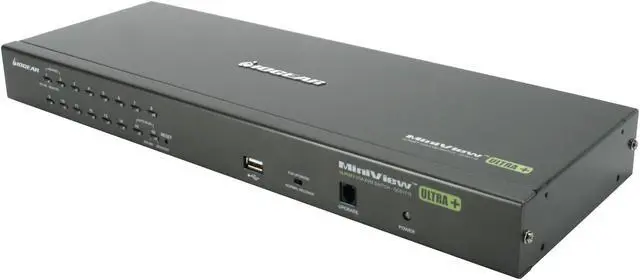

The GCS1716 includes one USB port located on the front panel for easy access and sharing of any USB peripherals. Setup is fast and easy; plugging cables into their appropriate ports is all that is needed. The switch supports both USB and PS/2 connections for the console and computers. The GCS1716 intercepts keyboard input directly, thus eliminating the need for any software configuration. Switching between computers can be easily accomplished either by manually pressing the front panel push button port LEDs, entering hotkey combinations from the keyboard, or via a menu driven multilingual on-screen display (OSD) system. A convenient auto-scan feature permits automatic scanning and monitoring of activities on all connected.
Learn more about the IOGEAR GCS1716KIT
Model
Brand
IOGEAR
Model
GCS1716KIT
Details
Type
D-Sub, USB, PS/2
PC Connectors

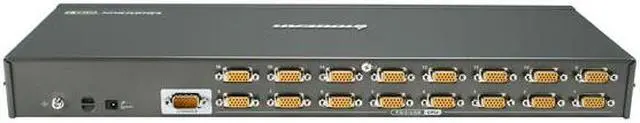

16 x SPHD-15 Female (Yellow)
Console Connectors
Console: 1 x SPHD-18 Male (Yellow) Power: 1 x DC Jack USB: 1 x USB 1.1 Type A Female
Computer Connections
16 Ports
Monitor Connections
1 Port
Video Resolution
VGA 2048 x 1536, DDC2B
PC Selection
Push Buttons/Hot Keys/OSD
AutoScan Interval
1-255 sec.
Environmental
Temperature
Operation: 0~50°C Storage: -20~60°C
Humidity
0% to 80%,Non-Condensing
Features
Power Features
Voltage DC 5.3V Amps 2.4A
Features
Multi platform OS support - Windows, Mac, Sun Solaris , and Linux Easy to operate - computer selection via front panel LED's, intuitive OSD (on screen display), and hotkeys Cascade up to 2 levels - control up to 256 computers from a single console Security - 2 level password protection for OSD Maximum video resolution: up to 2048 x 1536 Front USB Port (Only systems connected with the USB KVM cables will be able to access the front USB port for system upgrades and shared peripherals) - Fully compliant with USB 1.1 for system upgrades and shared peripherals Rack mountable in a 19" (1U) system rack Custom ASIC provides an auto-sensing function that recognizes the position of each station on the installation Fully Supports DDC2B
Dimensions & Weight
Dimensions
17" x 1.75" x 6.25"
Weight
6.02 lbs.
Package Contents
Package Contents

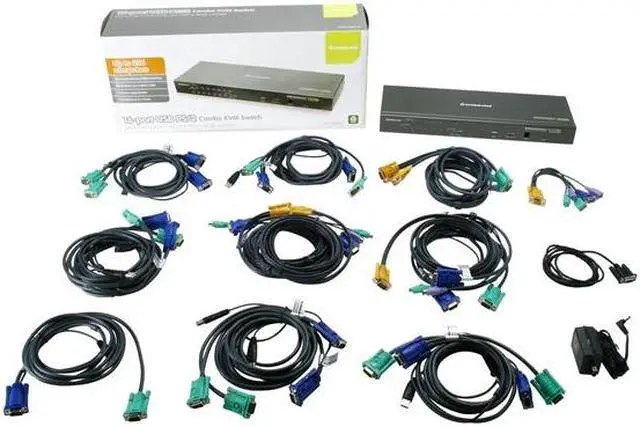

1 x GCS1716, 16-Port Combo KVM w/ Standard Rack Mounting Kit 6 x 2M USB KVM cable (G2L5202U) 6 x 3M USB KVM cable (G2L5203U) 2 x 2M PS/2 KVM cable (G2L5202P) 2 x 3M PS/2 KVM cable (G2L5203P) 1 x Console cable 1 x Cascade cable 1 x Firmware upgrade cable 1 x Grounding wire 1 x Foot pad set (4 pads) 1 x Power adapter 1 x Installation Guide 1 x Warranty Card
Additional Information
First Listed on Newegg
March 30, 2024
