Question 1

Will this work with Windows 10?

Accepted Answer

yes.  it took me a while but this is what I did.

installed win10 guest on linux host.
10 then using the HOT KEY keyboard i switch off the box to another cpu on a different port and back.
2. i also used the buttons on the unit its self.

TAKE CARE THAT THE VGA CABLE IS THE OLD SCHOOL TYPE SO IF YOUR ONLY DISPLAY INLET IS HDMI OR SOMETHING ELSE I DONT KNOW I ALSO DID NOT TRY THE SHARABLE USB PORT, I DONT FREQUENTLY USE IT.  I BOUGHT THIS MODEL AFTER USING ANOTHER MODEL FROM IOGEAR WHICH BROKE AFTER 10 YEARS OF HEAVY USE.

Question 2

VGA only?

Accepted Answer

Yes, VGA only. The switch is solid, but using DVI adapters, combined with different drivers on different machines results in having to reset the screen resolution  when swapping between machines.

Question 3

Will this KVM switch support a wireless mouse and keyboard.  Many other types do not...???

Accepted Answer

I have never tried this but I don't see why it wouldn't if the wireless transceivers are plugged into the IoGear unit.  However, the IoGear has a separate USB connection for the keyboard and mouse so you'd probably need separate transceivers. The IoGear needs to see a constant connection to the actual keyboard and mouse and I would think the transceivers would provide that.

Question 4

Can I assume that if you plug this KVM into your home network switch, you'll be able to access your networked printers?
Can I also assume that all the video, keyboard and mouse connections are contained in the single VGA cable that's plugged into the KVM? (I hate to assume anything, so I just wanted to nail these things down.)
Thanks.

Accepted Answer

KVM .. Stands for Keyboard - Video - Mouse ... Does not connect to network switch. Purpose is to connect 4 computers to a single keyboard, monitor and mouse. Saves hardware and space. If the computers are networked they retain whatever configuration you have set up.
It comes with 4 proprietary cables that have VGA connectors audio in and out, and a single USB at each end. The cable between the ends does look like a regular VGA cable.
The Unit works well and can be switched by hot key strokes from the keyboard or the switches on the unit itself.

Question 5

What are the cable length?, thanks.

Accepted Answer

Oops ... checked again and they are closer to 6 feet long.

Question 6

Can someone recommend a wireless mouse that is KNOW to work with this KVM?  The Logitech M310 does not.

Accepted Answer

My Razer Naga Epic (wireless) works.

Brand	IOGEAR
Model	GCS1734

Type	D-Sub, USB
PC Connectors	Audio: 4 x stereo speaker; 4 x Microphone Keyboard, Mouse, and Monitor: 4 x SPDB15 Peripherals: 2 x USB Type A
Console Connectors	Audio: 1 x stereo speaker; 1 x Microphone Flash ROM Upgrade: 1 x RJ11 socket Mouse: 1 x USB Type A Keyboard: 1 x USB Type A Monitor: 1 x HDB-15 Female (Std. VGA/SVGA)
Computer Connections	4 Ports
Monitor Connections	1 Port
Video Resolution	2048 x 1536
PC Selection	Push Buttons/Hot Keys
AutoScan Interval	5 seconds

USB Features	with USB support
Features	Multi functional switch allows four USB or PS/2 (additional cables needed for PS/2, IOGEAR Part No. G2L5302P) computers to share one USB console and two USB peripheral devices such as printers and scanners, as well as speakers and a microphone User can conveniently switch USB peripheral devices from one computer to another using Hot Keys USB peripheral devices and USB consoles can be switched asynchronously from one computer to another using Hot Keys Fully compliant with USB 1.1 specifications and delivers a 12 Mbps data transmission rate Complete keyboard and mouse emulation for error free booting Support special keys on Mac and Sun keyboard Allows PC keyboards to simulate Mac and Sun special keys through Hotkeys Features AutoScan mode to monitor all computers LED display for easy status monitoring Extra convenience offered through sharing of speakers and microphone Easy installation: no software required, hot swappable Compact design for easy placement

Dimensions	3.5" x 8" x 1.7"
Weight	1.1 lbs. (0.50 kg.)

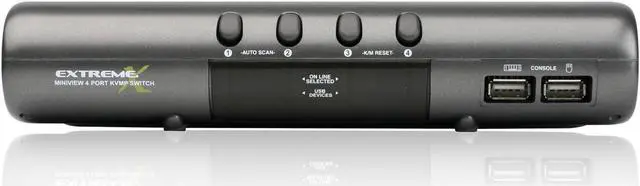

IOGEAR GCS1734 4-port MiniView Extreme Multimedia KVMP Switch Kit w/Cables
