As users grow in knowledge and experience with their computers, they frequently wind up with more than one system on or under the desk. Space limitations, however usually restrict the screens on your desk. A KVM (Keyboard/Video/Monitor) switch allows you to control four systems from one keyboard and screen.
The IOGEAR GCS1764 DVI KVMP Switch charts a revolutionary new direction in KVM switch function by adding USB peripheral sharing capabilities such as printers, scanners and portable hard drives, as well as audio sharing support. It further improves on previous designs with DVI (Digital Video Interface) connectors which support both digital and analog inputs for versatility.
The IOGEAR GCS1764 DVI KVMP Switch can emulate a keyboard on each PC to allow your systems to boot normally without a keyboard error, supports hot-swapping and can even be set to auto-scan, to alternate superior-quality video between computers at preset intervals. With an array of console ports and connectors to link to a wide array of systems and peripherals, the IOGEAR GCS1764 is ready to make sense of the forest of boxes under your desk!
As users grow in knowledge and experience with their computers, they frequently wind up with more than one system on or under the desk. Space limitations, however usually restrict the screens on your desk. A KVM (Keyboard/Video/Monitor) switch allows you to control four systems from one keyboard and screen.
The IOGEAR GCS1764 DVI KVMP Switch charts a revolutionary new direction in KVM switch function by adding USB peripheral sharing capabilities such as printers, scanners and portable hard drives, as well as audio sharing support. It further improves on previous designs with DVI (Digital Video Interface) connectors which support both digital and analog inputs for versatility.
The IOGEAR GCS1764 DVI KVMP Switch can emulate a keyboard on each PC to allow your systems to boot normally without a keyboard error, supports hot-swapping and can even be set to auto-scan, to alternate superior-quality video between computers at preset intervals. With an array of console ports and connectors to link to a wide array of systems and peripherals, the IOGEAR GCS1764 is ready to make sense of the forest of boxes under your desk!
Control Four PCs via One DVI Monitor, Keyboard and MouseShare one DVI monitor, USB keyboard and mouse between four USB-compatible computers using the IOGEAR GCS1764 KVMP switch. The built-in DVI-I connector supports DVI monitors with resolutions of up to 1920 x 1200.
Audio SupportWith audio support, share speakers and microphone between four computers. Enjoy multimedia playback and voice chatting on any computer using a single set of speakers and microphones.
USB Peripheral SharingWith two USB 2.0 peripheral ports, share your peripherals such as your printer, scanner, MP3 player and external hard drives between four computers.
Independent SwitchingWith the independent (asynchronous) switching of KVM and peripheral USB/audio ports, listen to music, voice chat and use USB peripherals from one computer while having full access to the other computer system resources.
Two Way SwitchingSwitch to a computer with keyboard hotkeys for convenience or by manually pressing the push button for simplicity.
Flash UpgradeAdd the latest firmware to your IOGEAR GCS1764 KVMP switch for consistent compatibility with the latest devices.
Learn more about the IOGEAR GCS1764
Model
Brand
IOGEAR
Model
GCS1764
Details
Type
DVI, USB
PC Connectors

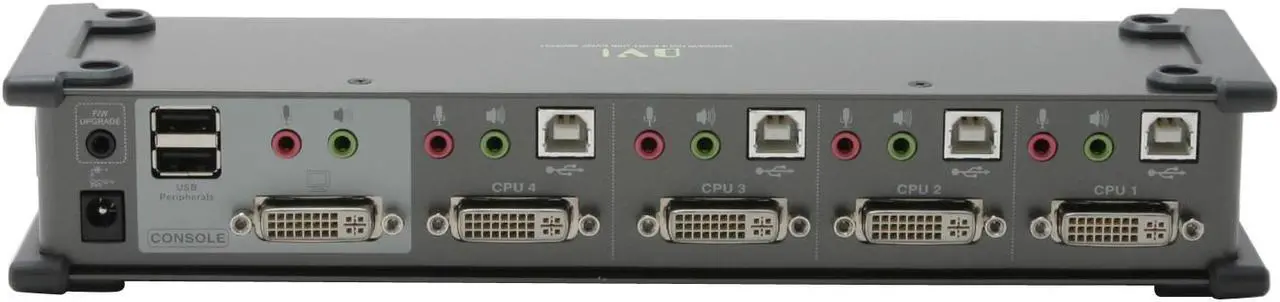

Microphone: 4 x Microphone jack Monitor: 4 x DVI-I ports (female) Audio: 4 x Stereo earphone jack Keyboard & Mouse: 4 x USB Type B sockets
Console Connectors
Keyboard: 1 x USB Type A socket Microphone: 1 x Microphone jack Monitor: 1 x DVI-I (female) port Audio: 1 x Stereo earphone jack Mouse: 1 x USB Type A socket
Computer Connections
4 Ports
Monitor Connections
1 Port
Video Resolution
1920 x 1200
PC Selection
Push Buttons/Hot Keys
AutoScan Interval
1-99 secs (default: 5 secs)
Monitors Supported
DVI monitor
Environmental
Temperature
0 - 50 C
Humidity
0-80% RH
Features
Audio Features
Requires 2-piece powered speaker system
Power Features
1 x DC 5V Jack
USB Features
with USB support
Features
Dual function KVMP/USB switch One console controls 4 computers Independent (asynchronous) switching of KVM and peripheral USB/audio ports Fully compliant with the USB 1.1 specification - supports transfer rates of up to 12 Mbps DVI digital and analog monitor support - fully compliant with the DVI specifications Computer selection via front panel switches and hotkeys LED display for easy status monitoring Auto Scan Mode for monitoring all computers Complete keyboard emulation for error free booting Superior Video quality - 1600 x 1200; DDC2B Easy installation Hot pluggable - add or remove computers for maintenance without powering down the switch Supports Windows and Mac host systems
Dimensions & Weight
Dimensions
10.25" x 1.65" x 2.93"
Weight
2.2 Lbs
Package Contents
Package Contents

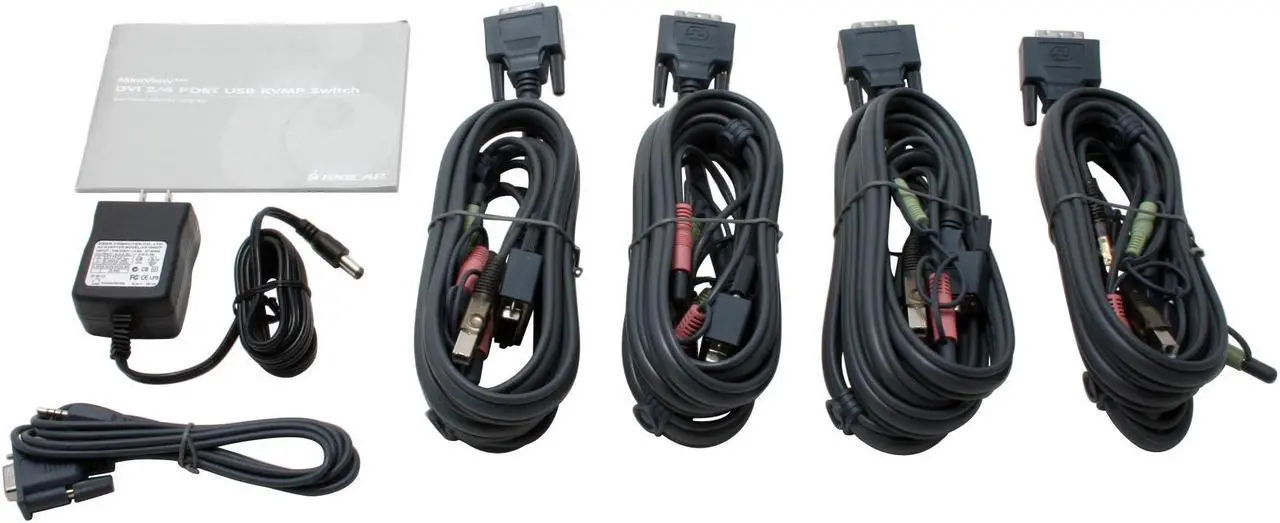

4-Port DVI KVMP Switch 4 x 6' custom cables 1 x Firmware upgrade cable 1 x Power Adapter User Manual
