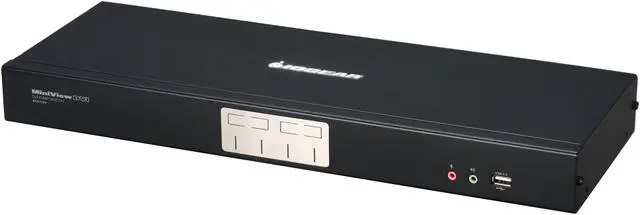

Main image of IOGEAR GCS1784 4-Port Dual Link DVI KVMP Switch with 7.1 Audio and Cables

Alt view image 2 of 5 - IOGEAR GCS1784 4-Port Dual Link DVI KVMP Switch with 7.1 Audio and Cables

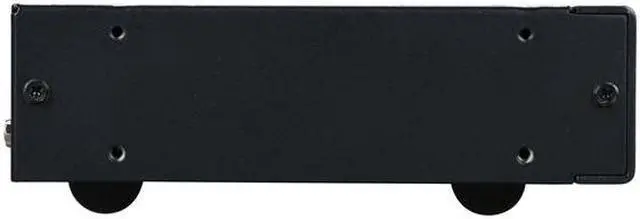

Alt view image 3 of 5 - IOGEAR GCS1784 4-Port Dual Link DVI KVMP Switch with 7.1 Audio and Cables

Alt view image 4 of 5 - IOGEAR GCS1784 4-Port Dual Link DVI KVMP Switch with 7.1 Audio and Cables

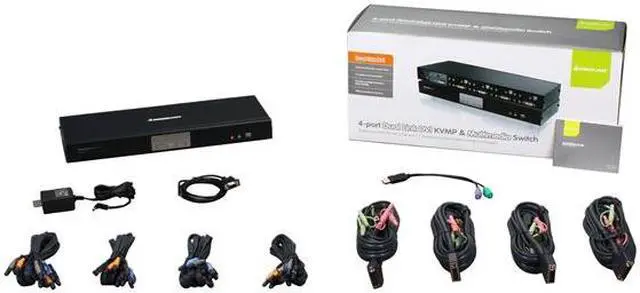

Alt view image 5 of 5 - IOGEAR GCS1784 4-Port Dual Link DVI KVMP Switch with 7.1 Audio and Cables

Shop All IOGEAR Products

IOGEAR GCS1784 4-Port Dual Link DVI KVMP Switch with 7.1 Audio and Cables

Name: IOGEAR GCS1784 4-Port Dual Link DVI KVMP Switch with 7.1 Audio and Cables
Brand: IOGEAR
SKU: N82E16817399043
Rating: 3 (5 reviews)

(5) Write a Review

4 Ports Computer Connections
1 Port Monitor Connections
AutoScan Interval 1-99 sec. (5 sec default)
Video Resolution DVI-D:
2560 x 1600 @60Hz (Dual Link)
1920 x 1200 @60Hz (Single Link)
3840 x 2400 @13Hz (Single Link)
DVI-A: 2048 x 1536

Overview

Specs

Reviews (5)

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

4-Port Dual-Link DVI KVMP Switch with 7.1 Audio and Cables (TAA Compliant)

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 3 years
Limited Warranty period (labor): 3 years
Read full details

Return Policies

Return for refund within: 30 days
Return for replacement within: 30 days
This item is covered by Newegg.com's 30-Day Return Policy.
Read full return policy for details.

Type	DVI, USB
PC Connectors	Keyboard & Mouse 4 x USB Type B Female Monitor 4 x Dual Link DVI-I Female Connectors-Audio Center/Subwoofer 1 x Mini Stereo Jack Female (Orange) Line In 1 x Mini Stereo Jack Female (Blue) Line Out 1 x Mini Stereo Jack Female (Green) Microphone 1 x Mini Stereo Jack Female (Pink) Rear Speaker Out 1 x Mini Stereo Jack Female (Black) Side Speaker Out 1 x Mini Stereo Jack Female (Grey)
Console Connectors	Mouse 1 x USB Type A Female Keyboard 1 x USB Type A Female Monitor 1 x Dual Link DVI-I Female Flash ROM Upgrade 1 x 4-conductor 3.5mm Jack (Black) Connectors-Audio Center/Subwoofer 1 x Mini Stereo Jack Female (Orange) Line In 1 x Mini Stereo Jack Female (Blue) Line Out 1 x Mini Stereo Jack Female (Green) Microphone 1 x Mini Stereo Jack Female (Pink) Rear Speaker Out 1 x Mini Stereo Jack Female (Black) Side Speaker Out 1 x Mini Stereo Jack Female (Grey)
Computer Connections	4 Ports
Monitor Connections	1 Port
Video Resolution	DVI-D: 2560 x 1600 @60Hz (Dual Link) 1920 x 1200 @60Hz (Single Link) 3840 x 2400 @13Hz (Single Link) DVI-A: 2048 x 1536
PC Selection	Push Buttons/Hot Keys
AutoScan Interval	1-99 sec. (5 sec default)

Temperature	Operation: 0~50°C Storage: -20~60°C
Humidity	0% to 80%,Non-Condensing

Audio Features	with 7.1 Audio and Cables
Power Features	Voltage DC 5.3V Amps 2.4A
Features	One console controls four computers 2-port USB 2.0 peripheral hub (backward compatible with USB 1.1) Share a 7.1 audio surround sound system Asynchronous hotkey switching between KVM focus, USB peripheral, and Audio ports Switching "Beep", mutable via hotkeys Complete keyboard and mouse emulation for error free booting and real-time switching IOGEAR's Display Emulation Technology reads and remembers the monitor's parameters (EDID) so the user doesn't experience delays or change in video resolution when switching between or booting computers Supports MAC keyboards and special keys Full support for DDC, DDC2, and DDC2B monitors Firmware upgradeable DVI compatible, HDCP Compliant Out-of-Box solution including all cabling This advanced KVMP can increase efficiency and save equipment cost for applications where high resolution, large or widescreen monitors are required, such as: CAD (Computer Aided Design) and CAM (Computer Aided Manufacturing) Desktop Publishing / Graphic Design / Video Editing Medical / Surgical / Diagnostic Displays High-End Gaming, where high and ultra-high video resolution is demanded

Dimensions	17" x 2.25" x 6.125"
Weight	10.8 lbs. (w/accessories)
