IOGEAR GCS1784DPKIT 4-Port Dual-Link DVI and DisplayPort KVMP Kit with 7.1 Audio (TAA Compliant)

Be the first to review this product...

Switch between 4 computers with the push of a button
Offers the flexibility to mix and match computer connections: DVI and DisplayPort

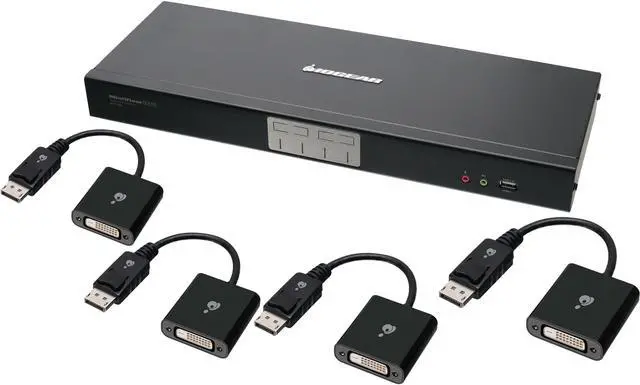

Kit includes 4 x DisplayPort to DVI Active adapters (GDPDVI4KA)
Switching via pushbutton or hotkey
Cost effective: Plug-N-Play solution and cables are included

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

MAIN OVERVIEW FEATURES: Number of Computers Supported: 4Number of Local Users Supported: 1Maximum Video Resolution: 3840 x 2160USB: YesDVI: YesNumber of USB Ports: 8Number of DVI Ports: 5Input Voltage Range: 5.3 V DCHeight: 9.6"Width: 22.1"Depth: 8.3"Weight (Approximate): 6 lbPackage Contents: 4-Port Dual-Link DVI KVMP Pro with 7.1 Audio (GCS1784) 4 x Active DisplayPort to DVI Adapters(GDPDVI4KA) 4 x Dual-Link DVI-D KVM Cable 4 x 7.1 Audio Cable 1 x Firmware Upgrade Cable 1 x Power Adapter 1 x Installation Guide 1 x Warranty Card Environmentally Friendly: YesEnvironmental Certification: RoHS,WEEETAA Compliant: YesLimited Warranty: 3 Year

Model
Brand	IOGEAR
Model	GCS1784DPKIT

Details
Type	Accessories
Console Connectors	Monitor:1 x Dual Link DVI-I Female Keyboard: 1 x USB Type A Female Mouse: 1 x USB Type A Female Flash ROM Upgrade: 1 x 4-conductor 3.5mm Jack (Black) Connectors-Audio(console): Center/Subwoofer : 1 x Mini Stereo Jack Female (Orange) Line In: 1 x Mini Stereo Jack Female (Blue) Line Out: 1 x Mini Stereo Jack Female (Green) Microphone: 1 x Mini Stereo Jack Female (Pink) Rear Speaker Out: 1 x Mini Stereo Jack Female (Black) Side Speaker Out: 1 x Mini Stereo Jack Female (Grey)
Computer Connections	Monitor: 4 x Dual Link DVI-I Female Keyboard & Mouse: 4 x USB Type B Female Connectors-Audio(PC): Center/Subwoofer : 1 x Mini Stereo Jack Female (Orange) Line In: 1 x Mini Stereo Jack Female (Blue) Line Out: 1 x Mini Stereo Jack Female (Green) Microphone: 1 x Mini Stereo Jack Female (Pink) Rear Speaker Out: 1 x Mini Stereo Jack Female (Black) Side Speaker Out: 1 x Mini Stereo Jack Female (Grey)
Monitor Connections	1 Port
Video Resolution	DVI-D: 2560x1600 @60Hz (Dual Link); 1920x1200 @60Hz (Single Link); 3840x2400 @13Hz (Single Link - with special monitors only) DVI-A: 2048x1536; DDC2B
PC Selection	Hotkey, Push Button
AutoScan Interval	1-99 sec (5 sec default)
LED Indicators	On Line: 4 x Orange KVM : 4 x Green Audio: 4 x Green USB Peripherals: 4 x Green

Environmental
Temperature	0ºC to 50ºC(32ºF to 122ºF)
Humidity	0% to 80%,Non-Condensing

Features
Power Features	DC 5.3V 2.4A
Features	Share a professional quality monitor between four computers DynaSync technology reads and remembers the monitor's parameters to eliminate delay or change of video resolution when switching between or booting computers Compatible with gaming keyboards Supports high-end 3D graphics Maximum video resolutions: 4K UHD: 3840x2160 (depends on source and compatible monitors) DVI-D Dual link: 2560x1600 DVI-D Single link: 1920x1200 Share a 7.1 surround sound system between two computers Built-in USB 2.0 hub - share USB peripherals between all connected computers Asynchronous hotkey switching between KVM focus, USB peripheral, and audio ports Complete keyboard and mouse emulation for error free booting and real-time switching Mouse emulation may be disabled to allow programmable buttons to function Supports MAC keyboard and special keys Firmware upgradeable All cables are included Convert your DisplayPort to DVI using the included Active DisplayPort to DVI Adapters Supports up to 3840x2160 @30Hz resolution based on source and monitor capabilities Compatible with AMD Radeon Eyefinity Graphics Processing Units (GPUs) DisplayPort 1.2 and HDMI 1.4 Compliant Plug-N-Play Solution, No Software or Driver installation necessary Powered by DisplayPort Output- No external power adapter needed NOTE: 1 IOGEAR's DynaSync provides EDID support for Windows 2 Requires DVI to HDMI (4K) adapter

Dimensions & Weight
Dimensions	17.00" x 6.13" x 2.25" (H x L x D)
Weight	6.00 lbs.

Package Contents

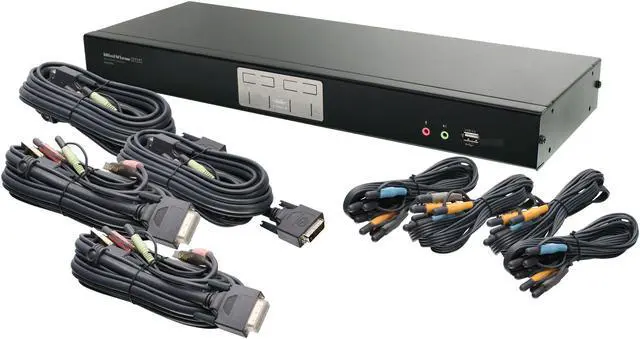

Package Contents	1 x 4-Port Dual-Link DVI KVMP Pro with 7.1 Audio (GCS1784) 4 x Active DisplayPort to DVI Adapters(GDPDVI4KA) 4 x Dual-Link DVI-D KVM Cable 4 x 7.1 Audio Cable 1 x Firmware Upgrade Cable 1 x Power Adapter 1 x Installation Guide 1 x Warranty Card

Additional Information
First Listed on Newegg	December 13, 2017

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 3 years
Limited Warranty period (labor): 3 years
Read full details

Return Policies

Return for refund within: 30 days
Return for replacement within: 30 days
This item is covered by Newegg.com's 30-Day Return Policy.
Read full return policy for details.
