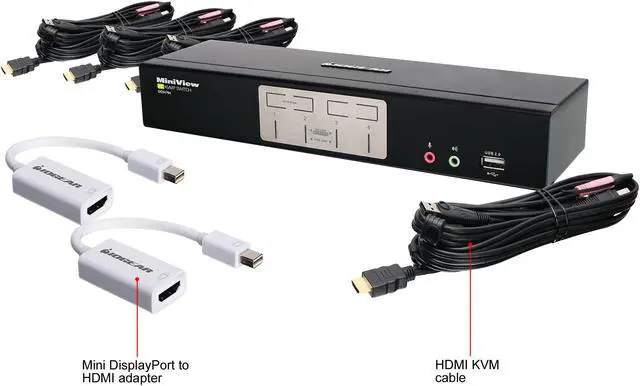

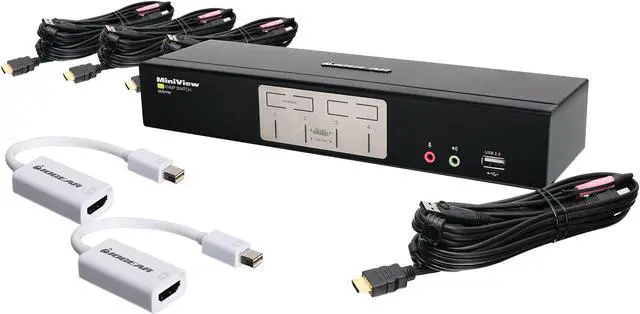

Main image of IOGEAR GCS1794MDPKIT 4-Port HDMI and Mini DisplayPort KVMP Kit with USB Hub and Audio

100%

Alt view image 2 of 8 - IOGEAR GCS1794MDPKIT 4-Port HDMI and Mini DisplayPort KVMP Kit with USB Hub and Audio

Alt view image 3 of 8 - IOGEAR GCS1794MDPKIT 4-Port HDMI and Mini DisplayPort KVMP Kit with USB Hub and Audio

Alt view image 4 of 8 - IOGEAR GCS1794MDPKIT 4-Port HDMI and Mini DisplayPort KVMP Kit with USB Hub and Audio

Alt view image 5 of 8 - IOGEAR GCS1794MDPKIT 4-Port HDMI and Mini DisplayPort KVMP Kit with USB Hub and Audio

Alt view image 6 of 8 - IOGEAR GCS1794MDPKIT 4-Port HDMI and Mini DisplayPort KVMP Kit with USB Hub and Audio

Alt view image 7 of 8 - IOGEAR GCS1794MDPKIT 4-Port HDMI and Mini DisplayPort KVMP Kit with USB Hub and Audio

Alt view image 8 of 8 - IOGEAR GCS1794MDPKIT 4-Port HDMI and Mini DisplayPort KVMP Kit with USB Hub and Audio

360^°

Shop All IOGEAR Products

IOGEAR GCS1794MDPKIT 4-Port HDMI and Mini DisplayPort KVMP Kit with USB Hub and Audio

Be the first to review this product...

AutoScan Interval 1 - 99 seconds
Video Resolution 1080p; 1920x1200

Overview

Specs

Reviews

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

MAIN OVERVIEW FEATURES: Number of Computers Supported: 4Number of Local Users Supported: 1Maximum Video Resolution: 1920 x 1200USB: YesHDMI: YesNumber of USB Ports: 8Number of HDMI Ports: 5Height: 10.3"Width: 3"Depth: 1.6"Weight (Approximate): 1.88 lbPackage Contents: 4-Port HDMI KVMP Switch 2 x Mini DisplayPort Adapters 4 x HDMI KVM Cables 1 x Firmware Upgrade Cable 1 x Power Adapter 1 x Installation Guide 1 x Warranty Card Environmentally Friendly: YesEnvironmental Certification: RoHS,WEEELimited Warranty: 3 Year

Model
Brand	IOGEAR
Model	GCS1794MDPKIT

Details
Type	USB

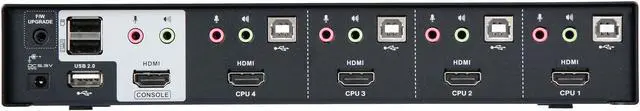

PC Connectors	Monitor: 4 x HDMI; 2 x Mini DisplayPort (with adapters) Keyboard: & Mouse 4 x USB Type B Female Audio: 4 x Mini Stereo Jack Female (Green) Microphone: 4 x Mini Stereo Jack Female (Pink)
Console Connectors	Monitor: 1 x HDMI Female Keyboard: 1 x USB Type A Female Mouse: 1 x USB Type A Female Audio: 2 x Mini Stereo Jack Female (Green; 1 x Front Panel, 1 x Rear Panel); through HDMI Type A Female if CPU's audio is sending through HDMI port along with Video Microphone: 2 x Mini Stereo Jack Female (Pink; 1 x Front Panel, 1 x Rear Panel) Flash ROM Upgrade: 1 x 4-conductor 3.5mm Jack (Black)
Video Resolution	1080p; 1920x1200
PC Selection	Hotkeys or Front Panel Switch Button
AutoScan Interval	1 - 99 seconds
LED Indicators	USB Peripherals: 4 x Green On Line: 4 x Orange

Environmental
Temperature	Operation Temperature: 0 to 50 degree C Storage Temperature: -20 to 60 degree C
Humidity	0% to 80%,Non-Condensing

Features
Power Features	Voltage: 5.3V Amps: 2.4A
Features	Share a Keyboard, Mouse, Surround Sound System, USB device(s) and an HDTV or HD display between 4 computers Video Resolutions: 480i, 480p, 720i, 720p, 1080i and 1080p ?Maximum video resolution: 1920 x 1200 2 x USB 2.0 peripherals sharing ports Dolby True HD and DTS HD Master Audio Support Multi-platform OS support - Windows, Mac, Sun Solaris , Linux HDCP compliant IOGEAR's DynaSync reads and remembers the monitor's parameters (EDID) so there is no delay or change of video resolution when switching between, or booting computers* Power-on Detection - If one of the computers is powered off, it will automatically switch to the next powered-on computer Asynchronous hotkey switching between KVM focus, USB peripherals, and Audio ports Complete keyboard and mouse emulation for error free booting and real time switching Console mouse port can support emulation or bypass Firmware upgradeable Plug & Play - No software installation required Mini DisplayPort to HD Adapters: Converts your Mini DisplayPort to HD so you can connect to a HD projector, TV or monitor. Works with Apple iMac or MacBook Compliant with Mini DisplayPort Specification 1.1a for both 1.62 Gbps and 2.7 Gbps Support full Mini DisplayPort link tracking Supported resolutions: ?Full HD 1080p 1920x1200 Compliant with HDMI up to 2.25Gbps Support interrupt request output for expansion function Supports Deep Sleep Mode (suspend mode) IOGEAR's DynaSync provides the EDID support for Windows 7

Dimensions & Weight
Dimensions	10.25" x 3.00" x 1.63"
Weight	1.88 lbs.

Package Contents

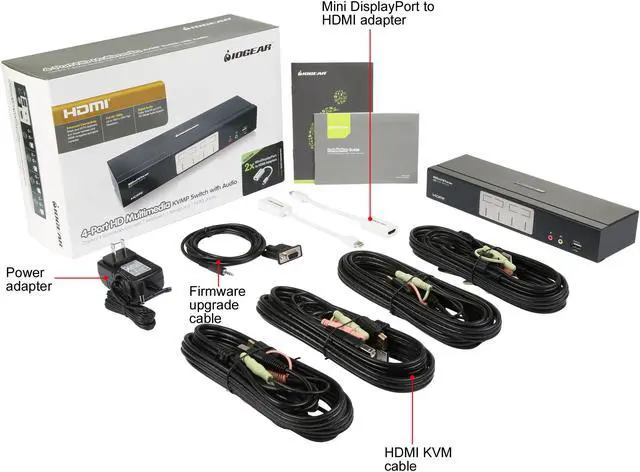

Package Contents	1 x 4-Port HDMI KVMP Switch 2 x Mini DisplayPort Adapters 4 x HDMI KVM Cables 1 x Firmware Upgrade Cable 1 x Power Adapter 1 x Installation Guide 1 x Warranty Card

Additional Information
First Listed on Newegg	March 10, 2017
