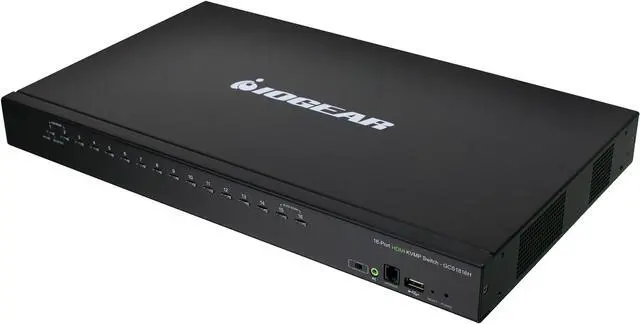

Main image of IOGEAR GCS1816H 16-Port USB HDMI KVM Switch with Audio (TAA Compliant)

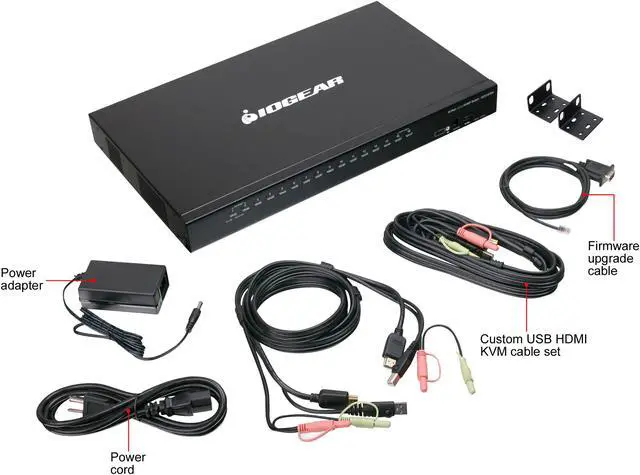

Alt view image 2 of 5 - IOGEAR GCS1816H 16-Port USB HDMI KVM Switch with Audio (TAA Compliant)

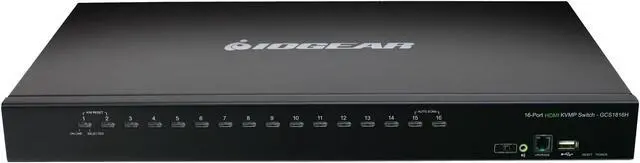

Alt view image 3 of 5 - IOGEAR GCS1816H 16-Port USB HDMI KVM Switch with Audio (TAA Compliant)

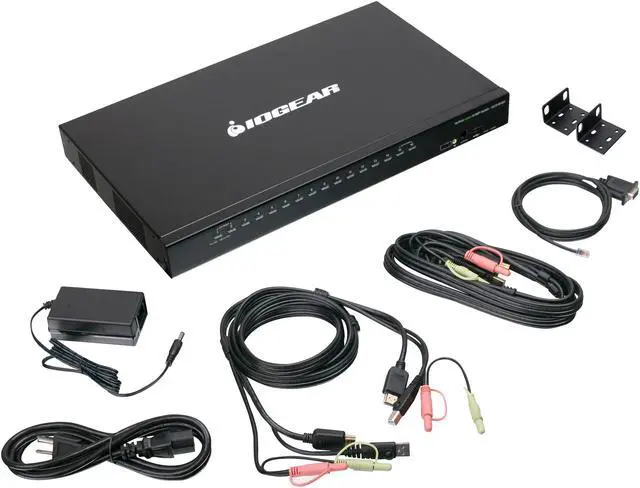

Alt view image 4 of 5 - IOGEAR GCS1816H 16-Port USB HDMI KVM Switch with Audio (TAA Compliant)

Alt view image 5 of 5 - IOGEAR GCS1816H 16-Port USB HDMI KVM Switch with Audio (TAA Compliant)

Shop All IOGEAR Products | Visit BTE Outlet Store

IOGEAR GCS1816H 16-Port USB HDMI KVM Switch with Audio (TAA Compliant)

Controls up to 16 HDMI sources while sharing 2 additional USB 2.0 devices
Supports up to 1080p (1920 x 1200) HD video resolution
Cascade up to 2 levels - control up to 256 computers from a single console
Features 2 built-in USB 2.0 ports for USB peripheral sharing
Multi-display feature allows viewing of up to 8 monitors when stacking up to (8) GCS1816H together

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

16-Port USB HDMI KVM Switch with Audio (TAA Compliant)

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
Read full details
CONTACT

Return Policies

Return for refund within: 30 days
This item is covered by BTE Outlet Return Policy

Manufacturer Contact Info

For a directory of all our manufacturers, please click below.
Manufacturers Directory

Type	HDMI, USB
PC Connectors	16 x HDMI Female 16 x USB Type-B Female 16 x 3.5mm Stereo Jack Female
Console Connectors	1 x HDMI Female 1 x USB Type-A Female 1 x USB Type-A Female 2 x 3.5mm Stereo Jack Female (1 x Front Panel; 1 x Rear Panel)
Computer Connections	16 Ports
Video Resolution	1920 x 1200
PC Selection	Push Buttons/Hot Keys/OSD
AutoScan Interval	1 - 255 Seconds (Default: 5 sec)
Monitors Supported	480i, 480p, 720p, 1080i, and 1080p (HDTV) / 1920 x 1200 @60Hz
LED Indicators	USB Peripherals: 16 (Green) On Line: 16 (Orange) Power On: 1 (Dark Green)

Temperature	0ºC to 50ºC(32ºF to 122ºF)
Humidity	0% to 80%,Non-Condensing

Audio Features	with Audio
Power Features	DC 5.0V; 12.2W
Features	Controls up to 16 HDMI sources while sharing 2 additional USB 2.0 devices Supports up to 1080p (1920 x 1200) HD video resolution Cascade up to 2 levels - control up to 256 computers from a single console Features 2 built-in USB 2.0 ports for USB peripheral sharing Multi-display feature allows viewing of up to 8 monitors when stacking up to (8) GCS1816H together Independent KVM and USB focus switching Supports 2 level password protection security for On-Screen Display (OSD) OSD Backup/Restore configuration and user profile information Broadcast Mode sends commands to all connected computers Auto Scan Mode monitors connected computers HDMI input connectors equipped with screw lock for secure connection Rack mountable in a 19" (1U) system rack Multi-platform OS support - Windows, Mac, Oracle Solaris and Linux Easy-to-operate computer selection via front panel LEDs, intuitive multi-lingual On-Screen Display (OSD), and hotkeys Video DynaSync - An exclusive IOGEAR technology, optimizes resolution when booting-up or switching between ports Console mouse port emulation & bypass feature supports most mouse drivers and multifunction mice Complete keyboard emulation for error-free booting Mac/Sun keyboard support and emulation Multilingual OSD supports English, German, Japanese, Chinese, Spanish, Russian, and French Multilingual keyboard mapping supports English (US), English (UK), German, Japanese, Traditional Chinese, Spanish, Korean, and French HDCP compatible Firmware upgradable 1. Cascade only with another GCS1816H for control over 256 computers 2. The built-in USB 2.0 hub cannot be accessed from sources on the second or third level of a cascaded installation 3. IOGEAR's DynaSync Display Emulation Technology provides the DDC support for Windows 7 4. PC keyboard combinations emulate Mac/Sun keyboards; Mac/Sun keyboards work only with their own OS

Dimensions	1.75" x 17.00" x 10.00"
Weight	8.80 lbs.
