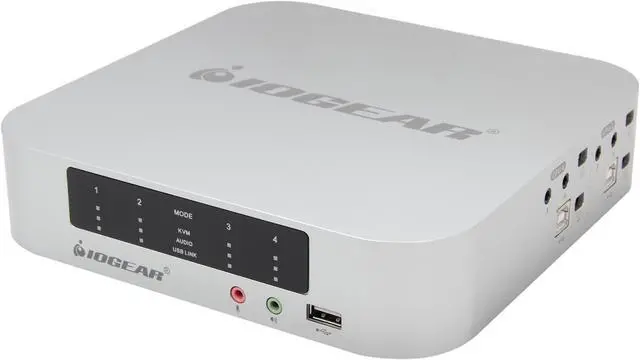

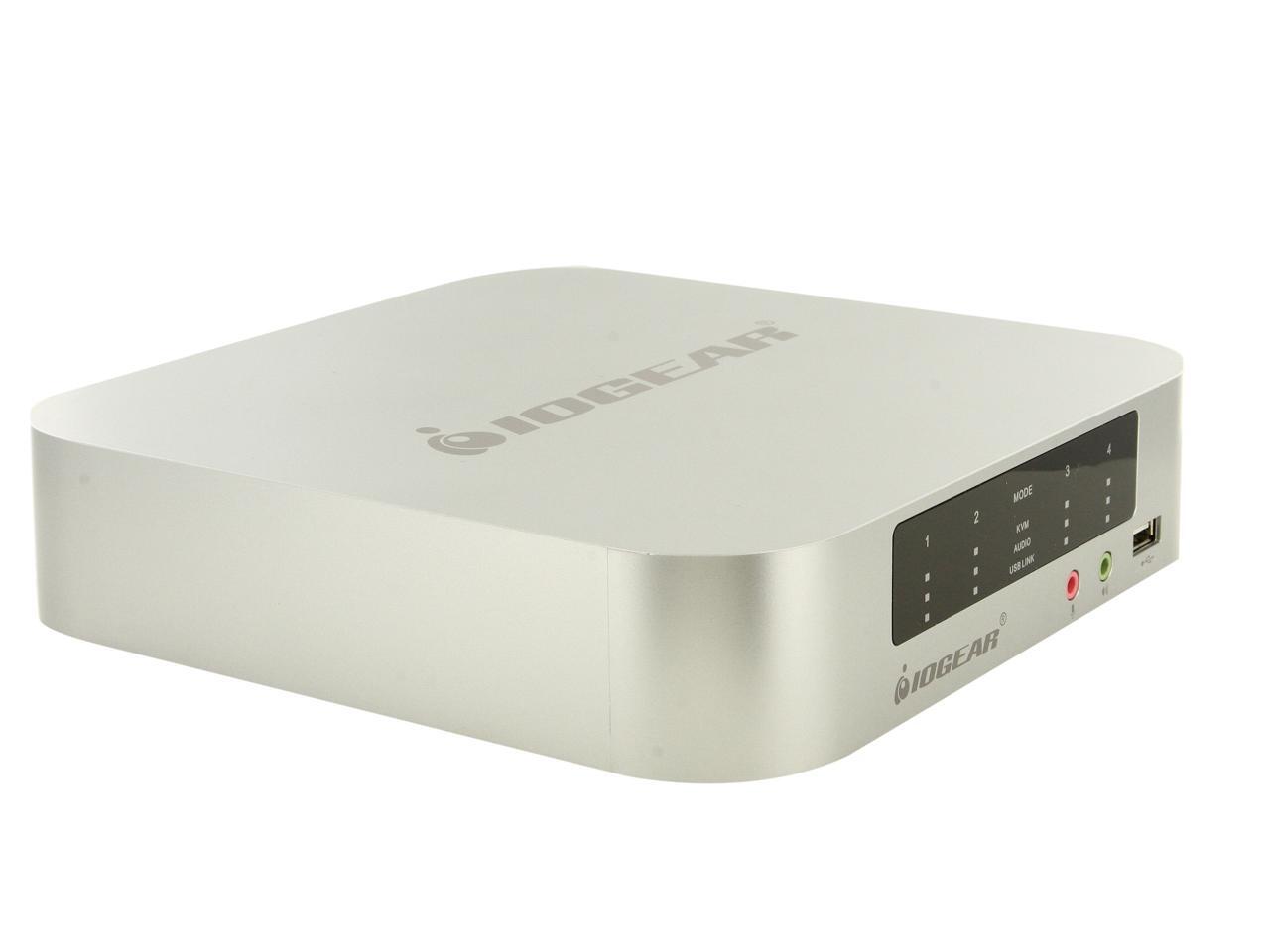

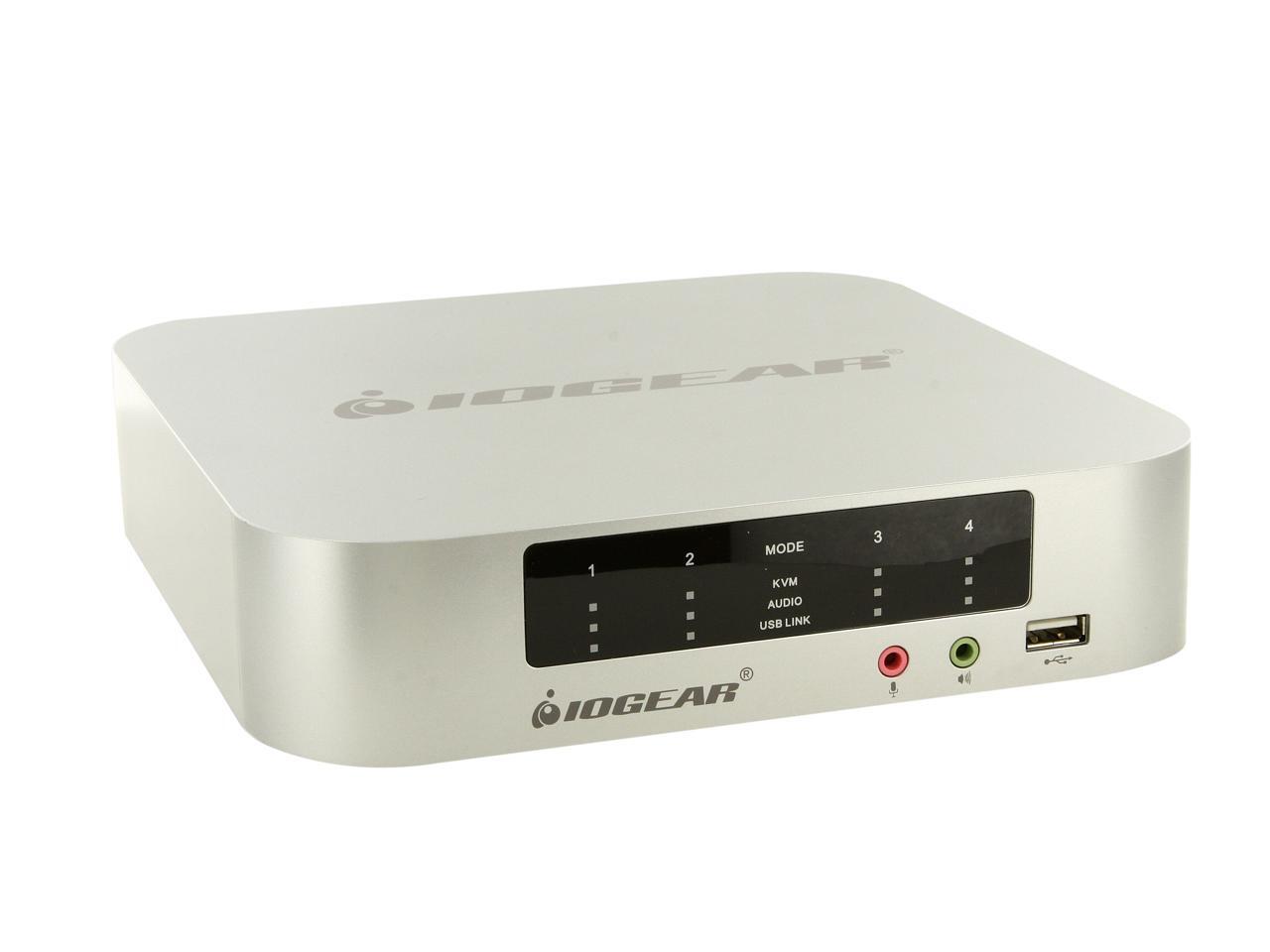

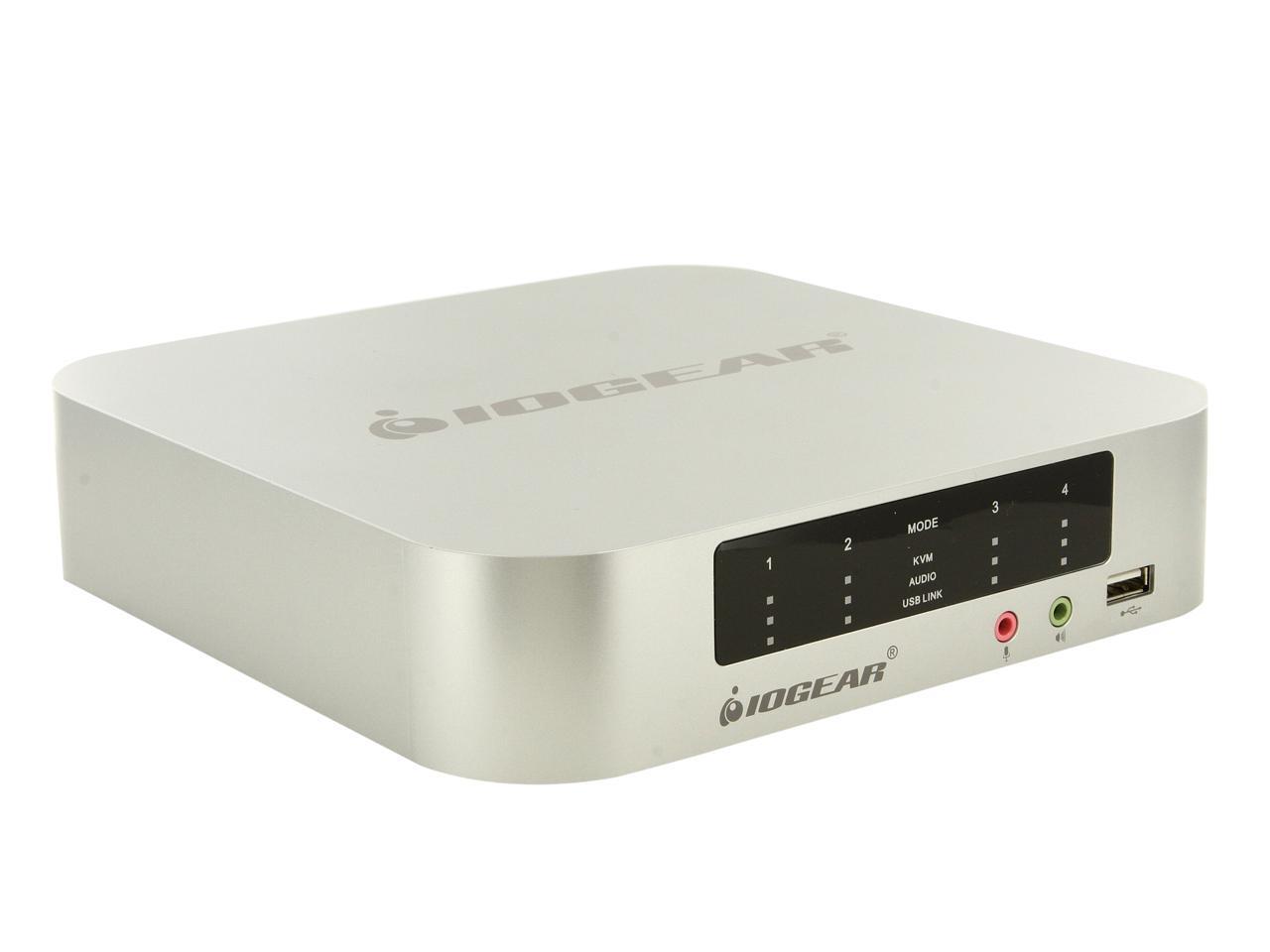

SWITCH 4P DUALVIEW MINI DISPLAYPORT KVMP
Innovative functionThe IOGEAR GCS1924 enables you to control 4 Mini DisplayPort computers with2 Mini DisplayPort monitors, 1 keyboard, 1 mouse, 1 microphone and speaker/HD Stereo.
Multiplatform OS supportThe IOGEAR GCS1924 supports PCs with Windows, Mac and Linux. Control 4 computers with different operating system only with the IOGEAR GCS1924.
2 USB 2.0 portsThe IOGEAR GCS1924 has 2 USB 2.0 ports to permits each computer to access connected peripherals, such as printer, scanner or storage drive.
Mini-DisplayPort and Mini-TOSLINK connectorsIt features DisplayPort dual-link resolutions of 2560x1600 and single link resolution of 1920 x 1200. The equipped Mini-TOSLINK connector ensure ultra-high definition audio signal.
Charge smart mobile devicesThe front USB port is designed to connect smart phones and smart tablets for quick power charge.
Learn more about the IOGEAR GCS1924
Model
Brand
IOGEAR
Model
GCS1924
Details
Type
DisplayPort, USB
PC Connectors

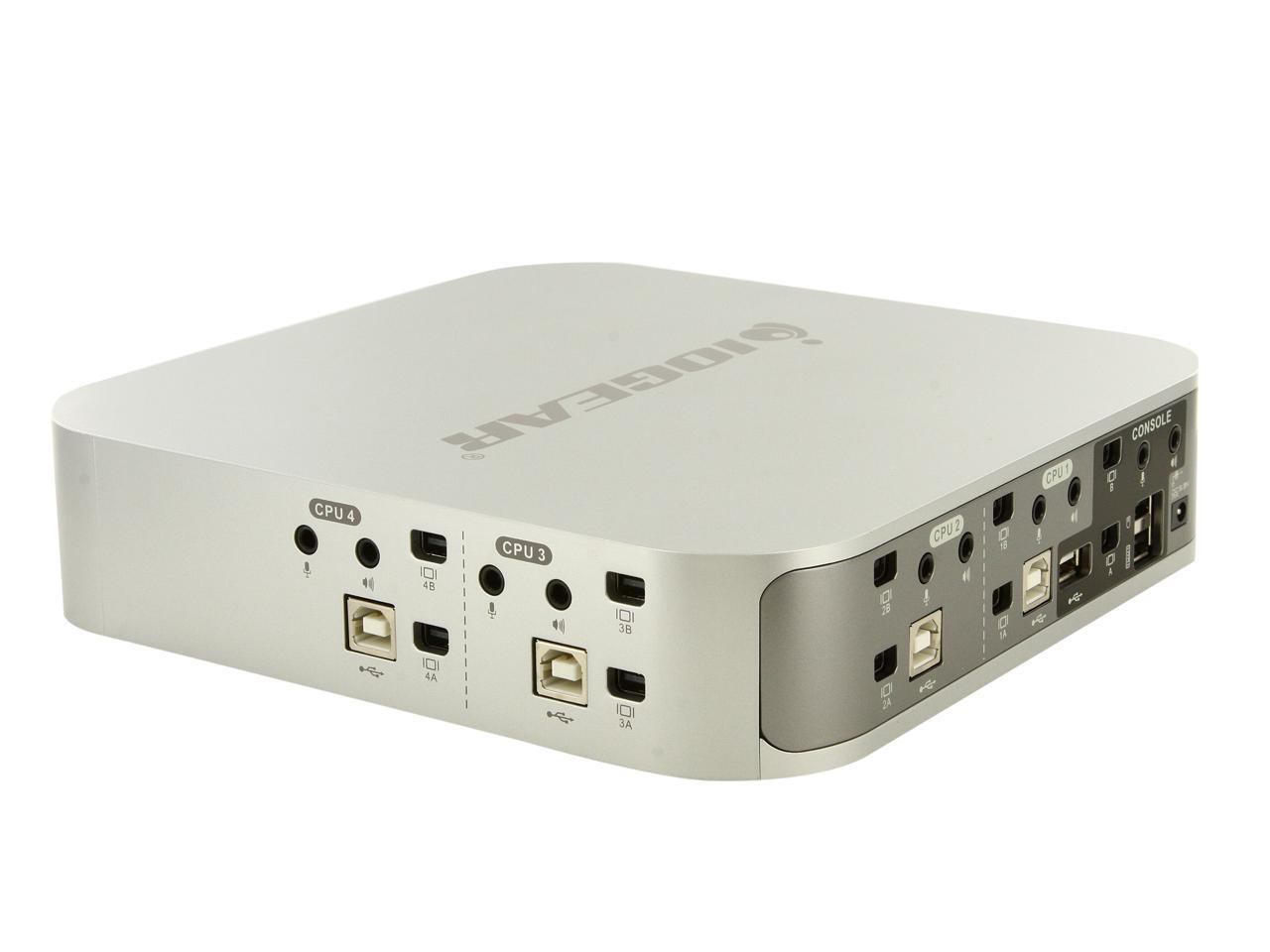

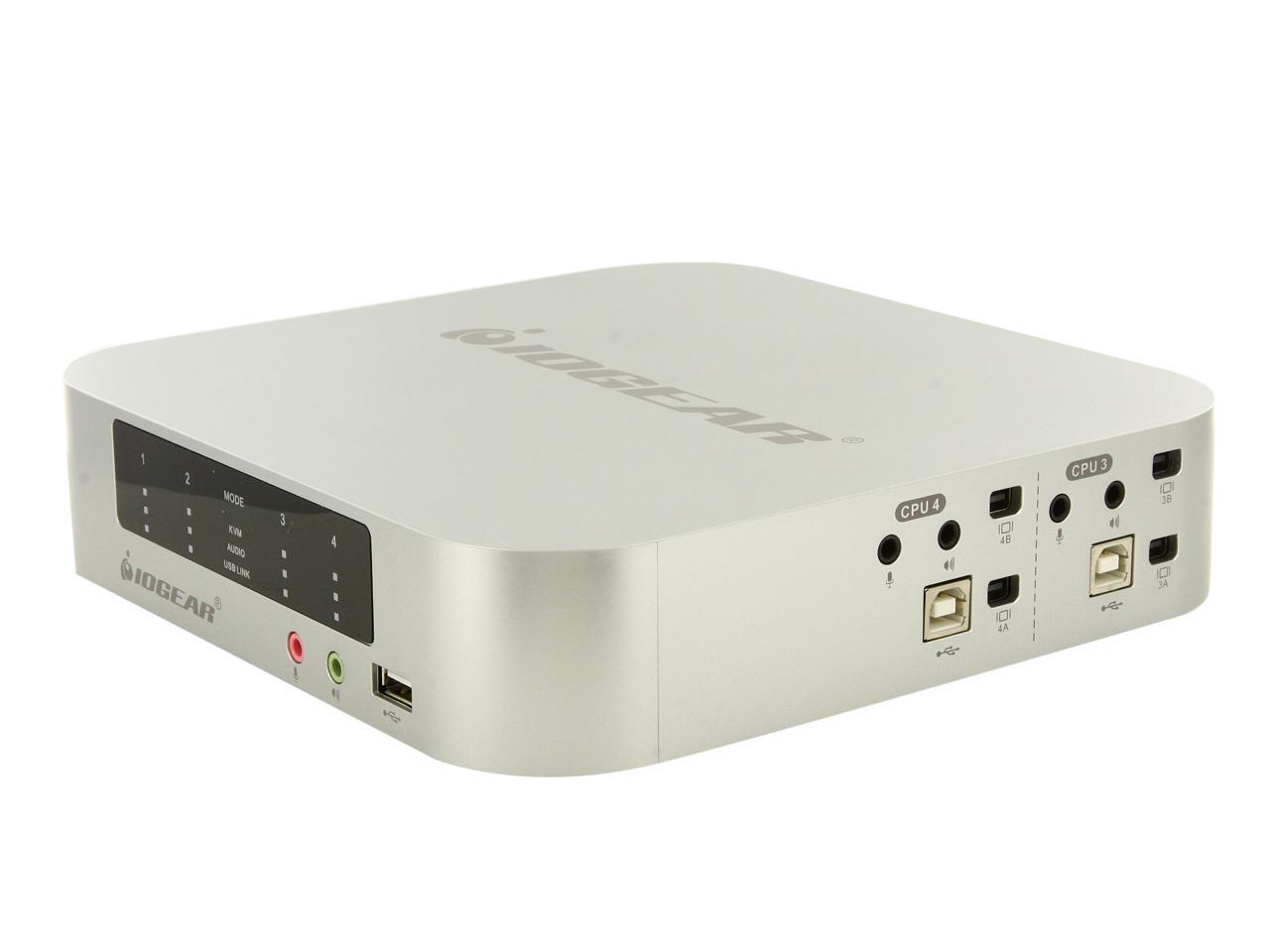

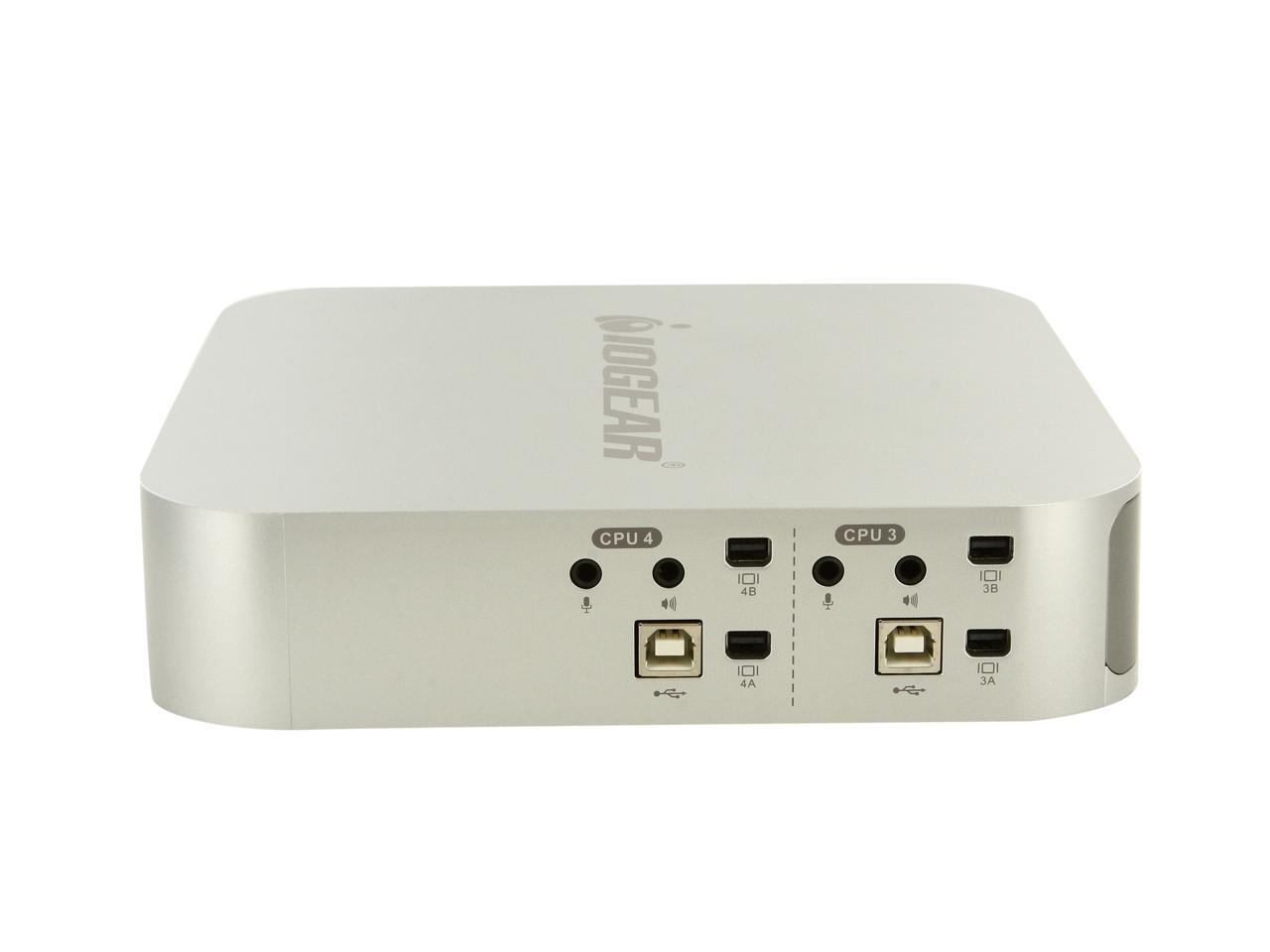

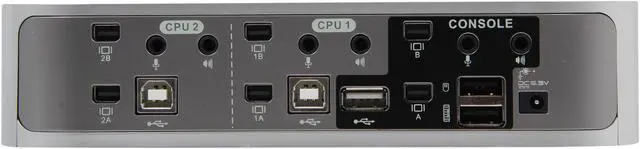

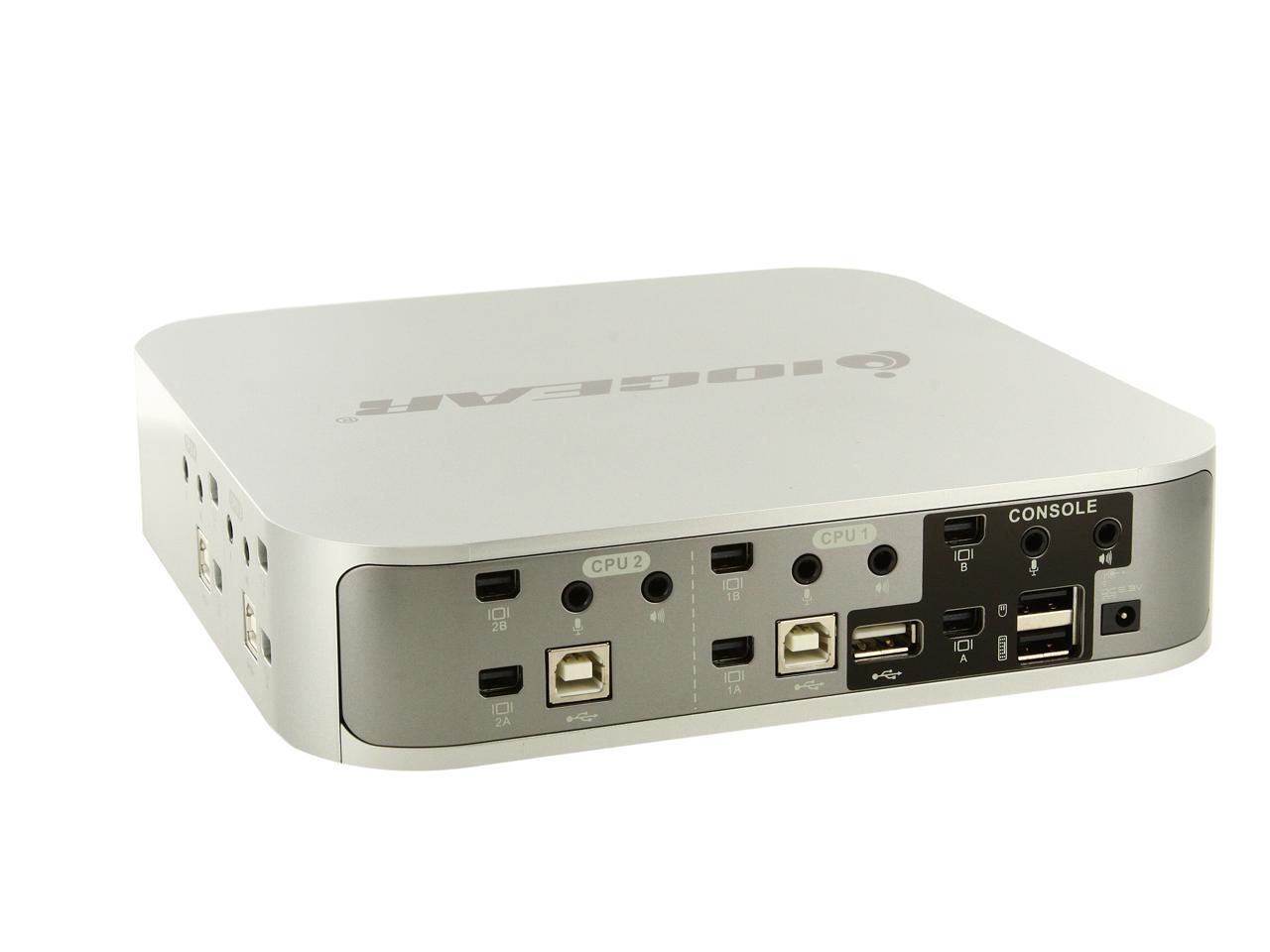

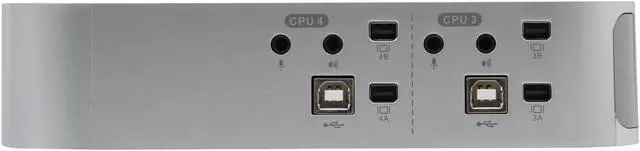

Monitor: 8 x Mini DisplayPort Keyboard: 4 x USB Type B Female Mouse: 4 x USB Type B Female Audio: 4 x Mini Stereo Jack Female (Green) Microphone: 4 x Mini Stereo Jack Female (Pink)
Console Connectors

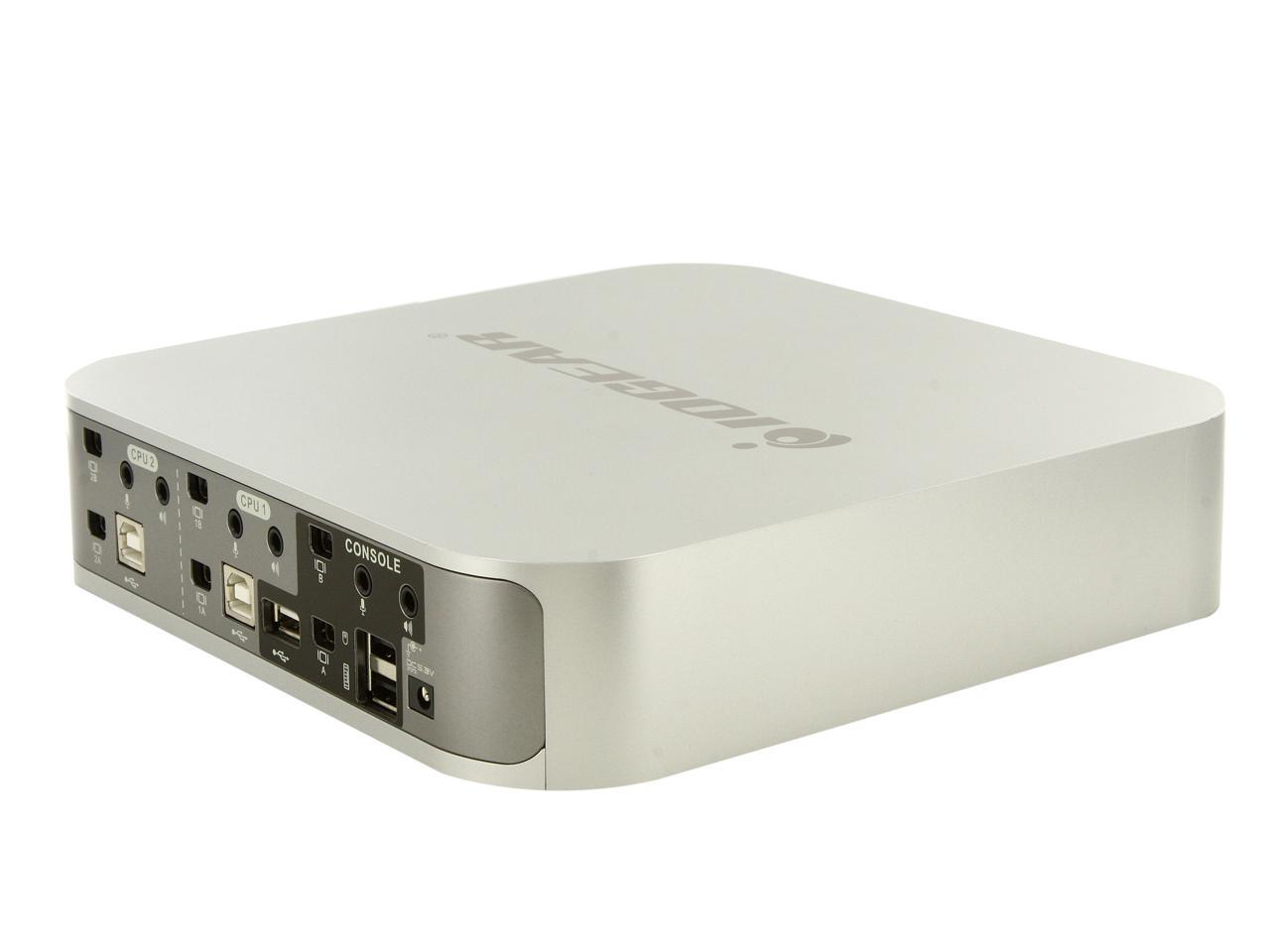

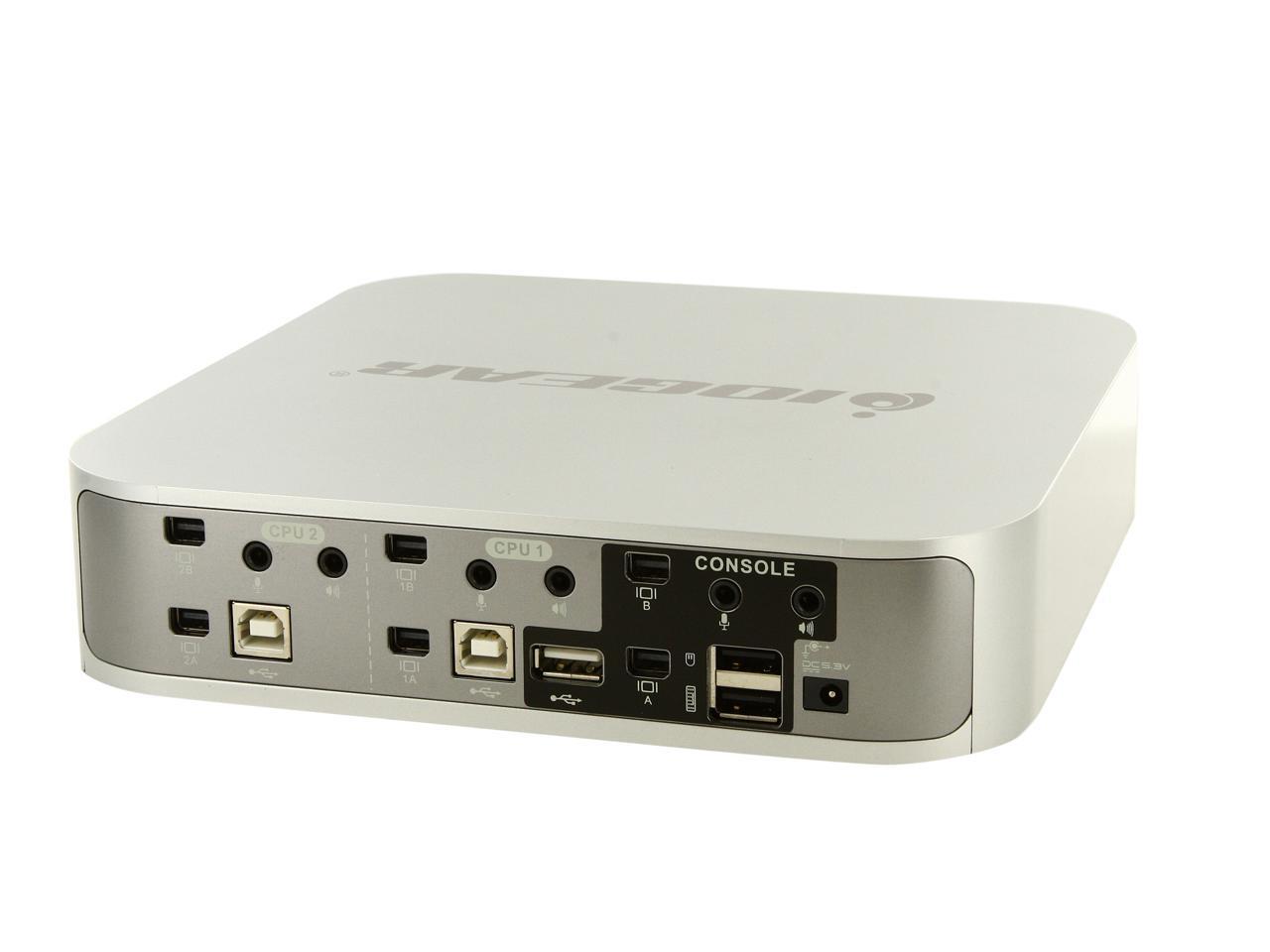

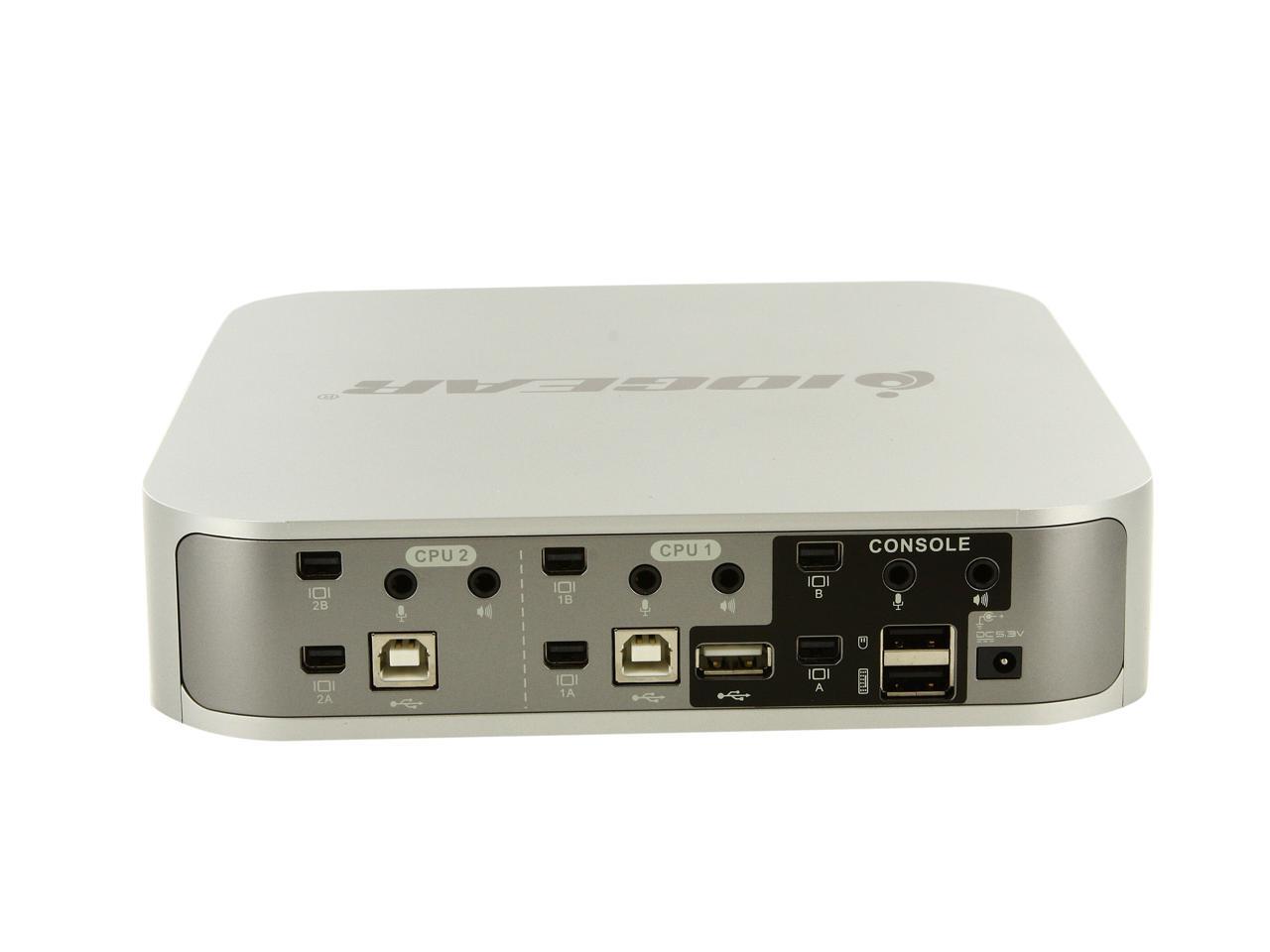

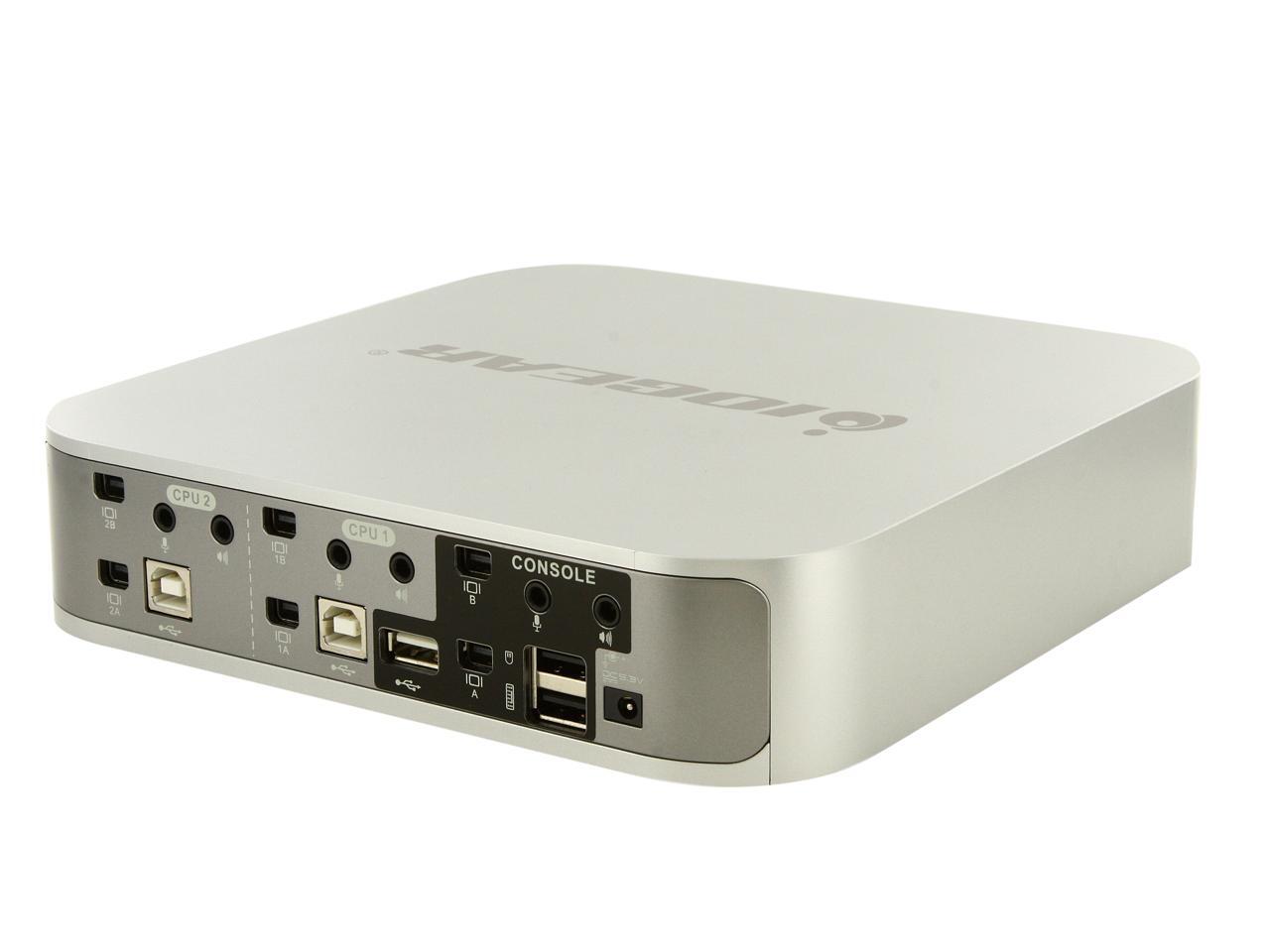

Monitor: 2 x Mini DisplayPort Keyboard: 1 x USB Type A Female Mouse: 1 x USB Type A Female Audio: 1 x Mini Stereo Jack Female (Green) Microphone: 1 x Mini Stereo Jack Female (Pink)
Computer Connections
4 Ports
Monitor Connections
2 Ports
Video Resolution
2560 x 1600
PC Selection
Hotkeys, TouchPanel
Features
Features
Share 2 DualView Mini DisplayPort monitors a keyboard, mouse and speakers between 4 Mini DisplayPort computers with dual monitor support
Video resolutions: - Single Link 1920x1200 - Dual-Link 2560x1600
Supports special monitors with 3840x2400
2 USB 2.0 ports for peripheral sharing
Audio Support for digital and analog: - Mini TOSLINK: High Definition digital audio signals - 3.5mm audio jack: Supports 2.1 stereo with full bass response
Multiplatform OS support - Windows, Mac, and Linux
IOGEAR's DynaSync reads and remembers the monitor's parameters (EDID) so there is no delay or change of video resolution when switching between, or booting computers

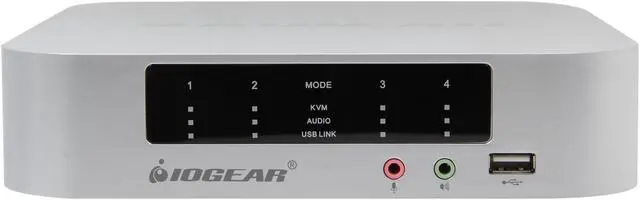

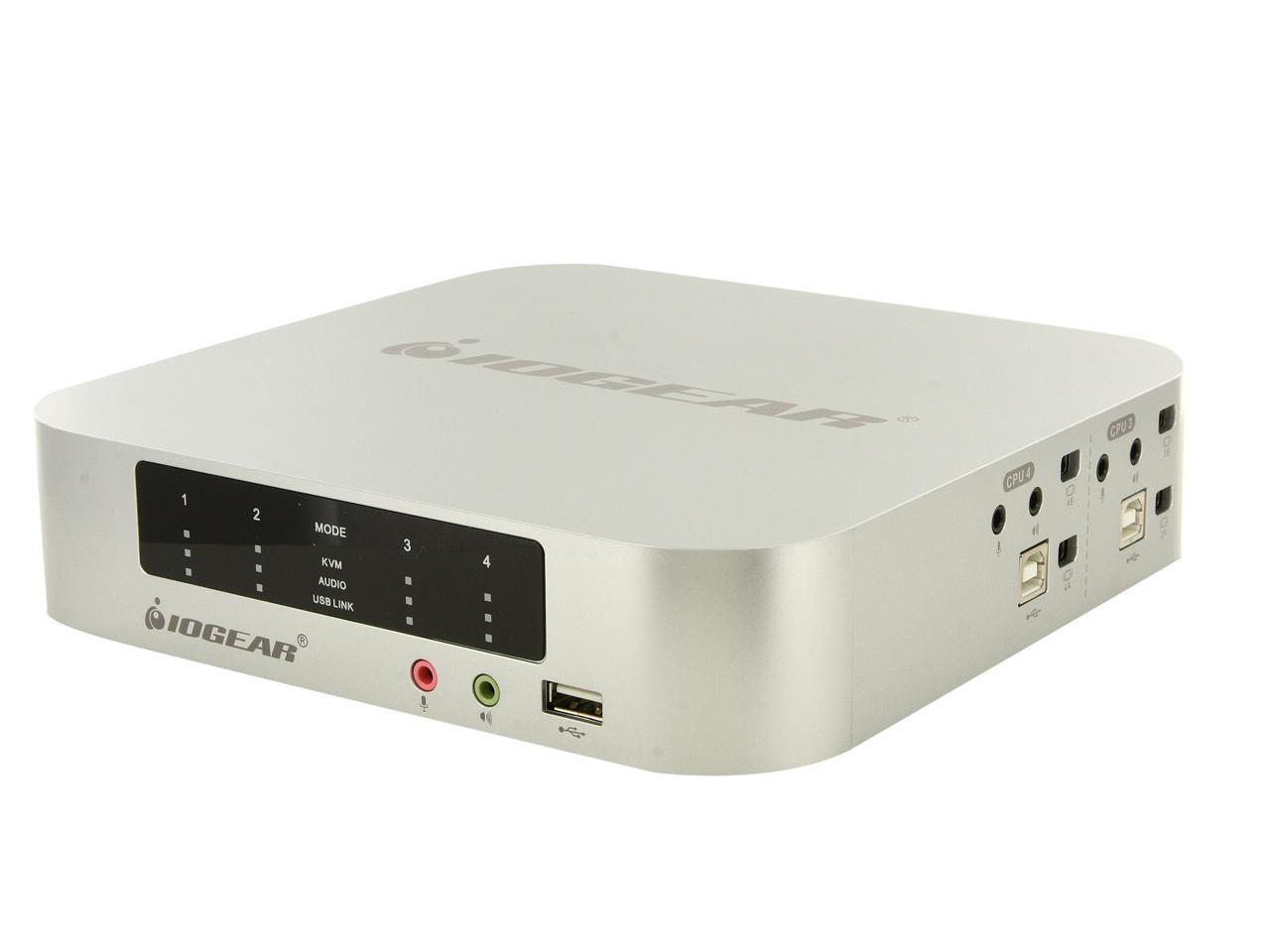

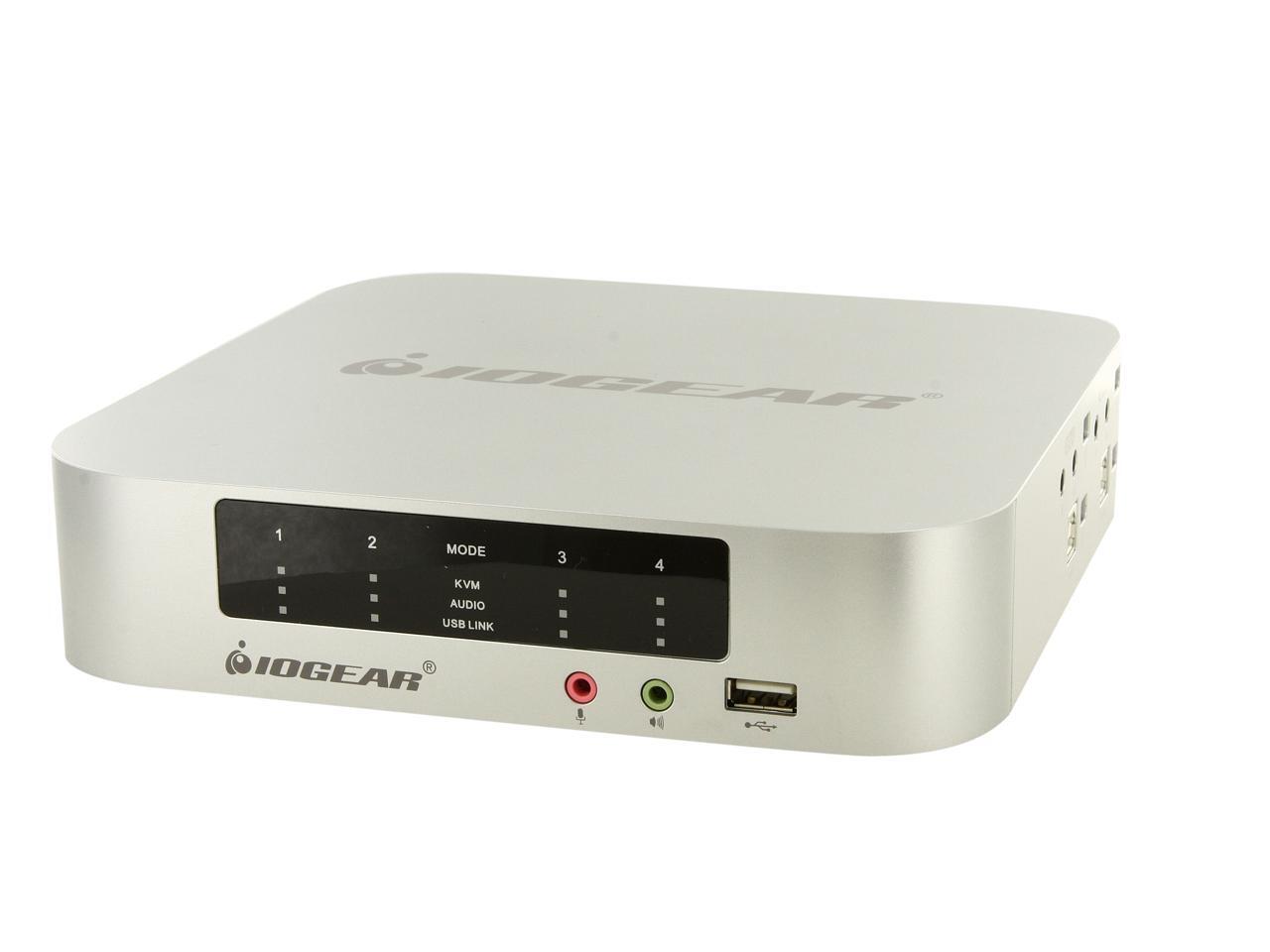

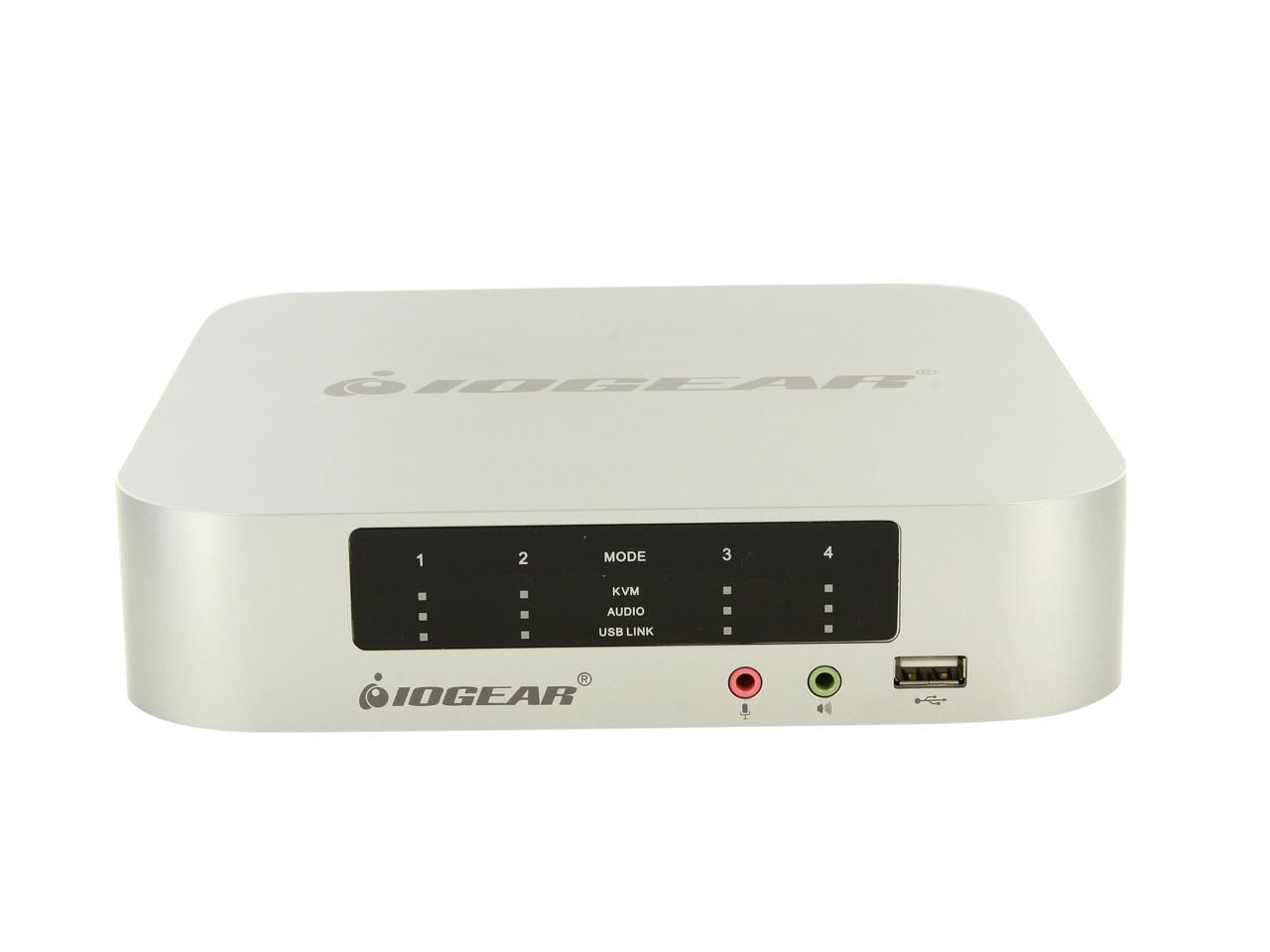

Port switching made easy with front-panel touch pad, hotkeys or USB mouse
Asynchronous hotkey switching between KVM focus, USB peripheral, and audio ports
Mini DisplayPort 1.1a & HDCP compatible
Complete keyboard and mouse emulation for error free booting and real-time switching
Front USB port designed for charging smart phones and smart tablets
Dimensions & Weight
Dimensions
1.7" x 7.8" x 7.8"
Weight
1.6 lbs.

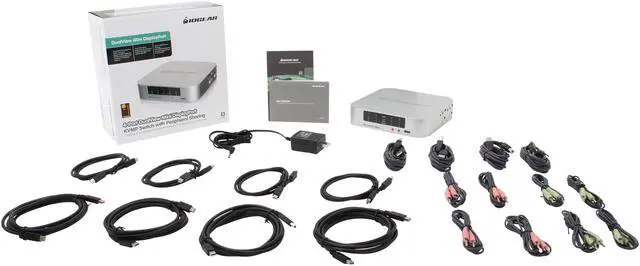

Package Contents
Package Contents
1 x 4-port USB 2.0 Mini DisplayPort Dual View KVMP Switch 8 x Mini DisplayPort 1.1a Cable 4 x Custom Cable Sets 1.8m (USB2.0 x 1, 3.5mm audio Jack x 2) 1 x User Manual 1 x Power Adapter 1 x Quick Start Guide
