Up to 4K DCI for one monitor or 4K UHD for two monitors
Switch between 4 DisplayPort computers easily
RS-232 Command Control
Full cable set included for out-of-the-box setup
+
+
Overview
Specs
Reviews (1)
Any questions? Our AI beta will help you find out quickly.
Try me now
Featuring a revolutionary combination of 4K DCI resolution and enhanced user-friendly operation, IOGEAR's 4-Port 4K DisplayPort KVMP Switch with Dual Video Out and RS-232 provides the latest innovations in DisplayPort KVM technology. Connect your powerhouse computers and experience 4K DCI resolution while switching between two computers and sharing two USB peripherals with the push of a button. Control two DisplayPort desktops or laptops with ease using a single keyboard, mouse, HDMI and/or DisplayPort monitors. Expand your USB 3.0 peripherals' connectivity with faster data transfer rates, and eliminate redundant hardware.
Learn more about the IOGEAR GCS1934M
Model
Brand
IOGEAR
Model
GCS1934M
Details
Type
DisplayPort, USB
PC Connectors

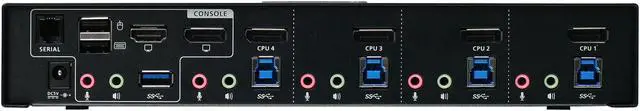

Monitor: 4 x DisplayPort (Black) Keyboard & Mouse: 4 x USB 3.0 Type B (Blue) Audio: 4 x 3.5mm Mini Stereo Jack (Green) Microphone: 4 x 3.5mm Mini Stereo Jack (Pink)
Console Connectors
Monitor: 1 x DisplayPort; 1 x HDMI Keyboard: 1 x USB Type A (Black) Mouse: 1 x USB Type A (Black) Audio: 2 x 3.5mm Mini Stereo Jack (Green; Front and Rear) Microphone: 2 x 3.5mm Mini Stereo Jack (Pink; Front and Rear)
Computer Connections
4 Port DisplayPort
Video Resolution
Up to 4096 x 2160 @60 Hz (4K DCI)
PC Selection
Push Buttons/Hot Keys
AutoScan Interval
1 - 99 seconds (5 seconds default)
LED Indicators
On Line: 4 x Orange Selected: 4 x Orange Audio: 4 x Orange USB Peripherals: 4 x Green
Environmental
Temperature
0 - 50 C
Humidity
0% to 80%,Non-Condensing
Features
Power Features
DC 5V
Features
Control and switch 4 computers with 1 keyboard, mouse, and monitor(s)
Expand 1 DisplayPort input to 2 video outputs (DisplayPort/HDMI)
With DisplayPort 1.1 Graphic Cards: Dual 4K UHD (DisplayPort/HDMI) - mirrored screen only
With DisplayPort 1.2 Graphic Cards: 1 Monitor: Up to 5K Resolution 2 Monitors: Up to 4K UHD (DisplayPort/HDMI) 3 Monitors: Shared video bandwidth
Convenient computer selection via front panel push-buttons, hotkeys, mouse, and RS-232 commands
2-Port built-in USB 3.1 Gen 1 Hub for peripheral sharing with SuperSpeed 5 Gbps data transfer
Independent switching of KVM, USB Peripherals, and 2.1 analog audio
Supports Ultra Wide Monitors
DisplayPort 1.2 and HDCP compliant
DP++ (Dual-Mode DisplayPort) technology supports HDMI and DVI adapters
Support 7.1 HD audio through DisplayPort connection
Power on Detection - GCS1934M automatically switches to the next powered-on computer
Hot pluggable - Add or remove computers without powering down the connection
Mouse emulation supports most mouse drivers and multifunction mice
Mac keyboard support and emulation
Multilingual keyboard mapping supports English, French, and German keyboards
Firmware upgradable
All KVM and audio cables are included
Note: 1. 3 Monitors setup example: Monitor #1 up to 3840 x 2160, Monitor #2 up to 2560 x 1600, Monitor #3 Up to 1920 x 1200 2. Supported alongside mouse emulation mode using a USB 3-button mouse wheel 3. DB9 to RJ-11 cable not included 4. Dual-Mode DisplayPort (DP++) requires active HDMI and DVI adapters for most display setups 5. HD audio through DisplayPort cannot be switched independently 6. PC keyboard combinations emulate Mac keyboards.
Dimensions & Weight
Dimensions
2.94" x 10.25" x 1.69"
Weight
1.90 lbs.
Package Contents
Package Contents

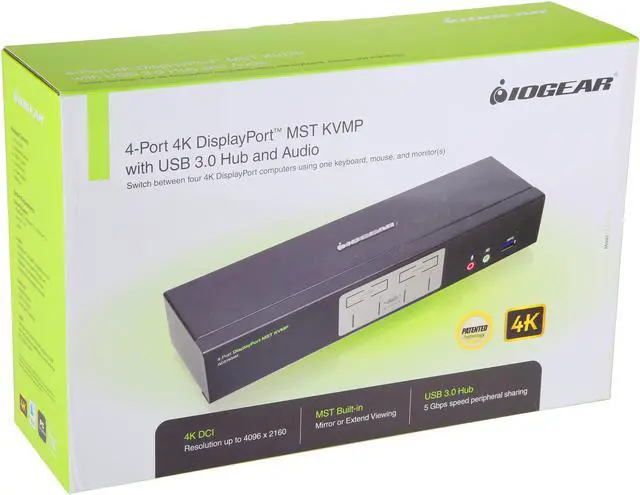

1 x GCS1934M 4K KVMP Dual Video Out Switch 4 x DisplayPort Cables 4 x USB 3.0 Cables 4 x Audio Cable Sets 1 x Power Adapter 1 x Manual 1 x Warranty
