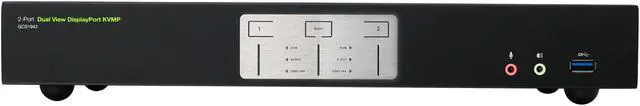

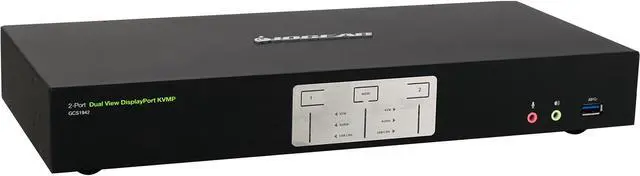

IOGEAR 2-Port 4K Dual View DisplayPort KVMP with USB 3.0 and Audio(TAA). KVM switch only

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

2-PORT 4K DUAL VIEW DP KVM (KVM ONLY )

Model
Brand	IOGEAR
Model	GCS1942NC

Details
Type	DisplayPort, USB

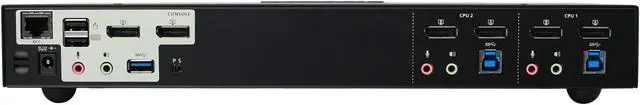

PC Connectors	CPU Connectors Monitor: 2 x DisplayPort (Black) Keyboard & Mouse: 2 x USB 3.0 Type B (Blue) Audio: 2 x 3.5mm Mini Stereo Jack (Green) Microphone: 2 x 3.5mm Mini Stereo Jack (Pink) Switches F/W Upgrade: 1 x USB Type B Port Selection: 2 x Pushbutton
Console Connectors	Monitor: 2 x DisplayPort (Black) Keyboard: 1 x USB Type A (Black) Mouse: 1 x USB Type A (Black) Audio: 2 x 3.5mm Mini Stereo Jack (Green; Front and Rear) Microphone: 2 x 3.5mm Mini Stereo Jack (Pink; Front and Rear)
Computer Connections	Direct: 2 Daisy Chain or Cascading: 2
Video Resolution	4096 x 2160 @60 Hz (4K DCI)
PC Selection	Pushbuttons, Hotkey, Mouse (mouse port switching only works with 3-key USB mouse wheel in emulation mode), or RS-232 commands
LED Indicators	On Line: 2 x Orange Selected: 2 x Orange Audio: 2 x Green USB Peripherals: 2 x Green

Environmental
Temperature	0ºC to 40ºC(32ºF to 104ºF)
Humidity	0% to 80%,Non-Condensing

Features
Power Features	Power Consumption: DC 12V

Dimensions & Weight

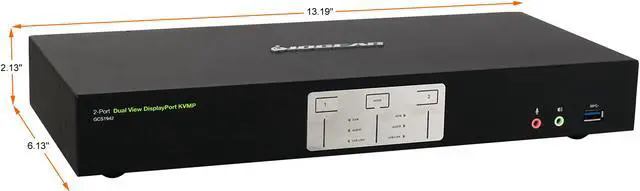

Dimensions	2.13" x 13.19" x 6.13"
Weight	3.50 lbs.

Package Contents
Package Contents	1 x 2-Port 4K Dual View DisplayPort KVMP Switch with USB 3.0 Hub and Audio 1 x Power Adapter 1 x Quick Start Guide 1 x Warranty Card
