IOGEAR GCS1944 4-Port 4K Dual View DisplayPort KVMP with USB 3.0 Hub and Audio (TAA)

(3) Write a Review

Maximize your high-end multi-monitor workstation with superior video resolution
Share dual Cinema 4K DisplayPort monitors (4096 x 2160 @60Hz)
Operate 4 DisplayPort computers with 1 keyboard, mouse, and 2 monitors
Add another GCS1944 to expand up to four 4K monitors
DisplayPort 1.2 compliant, HDCP compliant

Overview

Specs

Reviews (3)

Any questions? Our AI beta will help you find out quickly.

Try me now

Maximize your high-end dual DisplayPort workstations by connecting them to the 4

Model
Brand	IOGEAR
Model	GCS1944

Details
Type	DisplayPort, USB

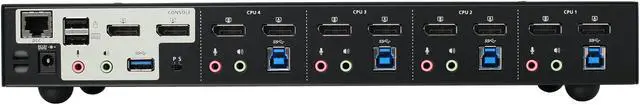

PC Connectors	4 x DisplayPort (Black) 4 x USB 3.0 Type B (Blue) 4 x 3.5mm Mini Stereo Jack (Green) 4 x 3.5mm Mini Stereo Jack (Pink)
Console Connectors	2 x DisplayPort (Black) 1 x USB Type A (Black) 1 x USB Type A (Black) 2 x 3.5mm Mini Stereo Jack (Green; Front and Rear) 2 x 3.5mm Mini Stereo Jack (Pink; Front and Rear)
Monitor Connections	4 Ports
Video Resolution	4096 x 2160 @60 Hz (4K DCI)
PC Selection	Push Buttons
AutoScan Interval	1~255 seconds (5 seconds default)
LED Indicators	On Line: 4 x Orange Selected: 4 x Orange Audio: 4 x Green USB Peripherals: 4 x Green

Environmental
Temperature	0 - 40 C
Humidity	0 - 80% RH, Non-condensing

Features
Power Features	DC 12V
Features	Maximize your high-end multi-monitor workstation with superior video resolution Share dual Cinema 4K DisplayPort monitors (4096 x 2160 @60Hz) Operate 4 DisplayPort computers with 1 keyboard, mouse, and 2 monitors Add another GCS1944 to expand up to four 4K monitors DisplayPort 1.2 compliant, HDCP compliant Allows independent switching of the KVM, USB, and audio devices Control/share USB3.0 peripherals between 4 computers; save money on duplicate devices Work on computer "A" without interrupting USB peripheral connectivity on computer "B" SuperSpeed 5Gbps transfer rate MST (Multi-Stream Transport)1 DP++ supports HDMI and DVI output2 Computer selection via front panel pushbuttons, hotkeys, or mouse3 Supports 7.1 HD audio through DisplayPort4 Full bass response for high quality 2.1 channel audio Mouse emulation or bypass feature supports most mouse drivers and multifunction mice Multi-platform support – Windows7, Windows 8.1, Windows 10, Mac OS, and Linux Multilingual keyboard mapping supports English, French, and German keyboards Mac keyboard support and emulation5 RS-232 Commands6 Auto-Scan Mode to monitor all computers Power on detection Hot pluggable Firmware upgradable Includes all KVM and audio cables 1. MST requires two monitors capable of DisplayPort 1.2 daisychaining, or use of an external DisplayPort MST Hub. PC Source must be DisplayPort 1.2 compliant. A DisplayPort 1.1a monitor can be the last monitor in a DP1.2 chain. 2. Dual-Mode DisplayPort (DP++) requires active HDMI and DVI adapters for most display setups. 3. Mouse port switching supported alongside mouse emulation mode using a USB 3-button mouse wheel. 4. HD audio through DisplayPort cannot be switched independently. 5. PC keyboard combinations emulate Mac® keyboards. 6. DB9 to RJ-45 cable not included.

Dimensions & Weight
Dimensions	13.19" x 6.13" x 2.13"
Weight	3.55 lbs.

Package Contents

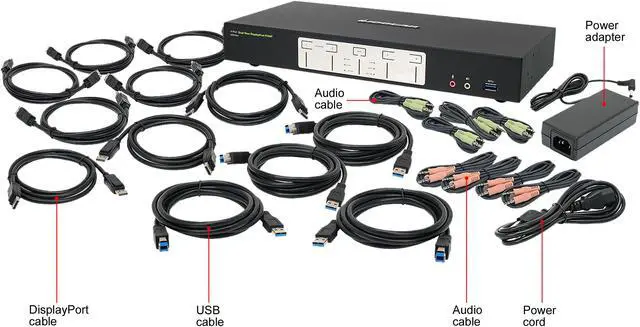

Package Contents	1 x 4-Port 4K Dual View DisplayPort KVMP Switch with USB 3.0 and Audio 8 x DisplayPort Cables 4 x USB 3.0 Cables 4 x Audio Cable Set 1 x Power Adapter 1 x Manual
