$91.99
Sold by Newegg
Shipped by Newegg
Add to Wish List(Found on 1 wish list)

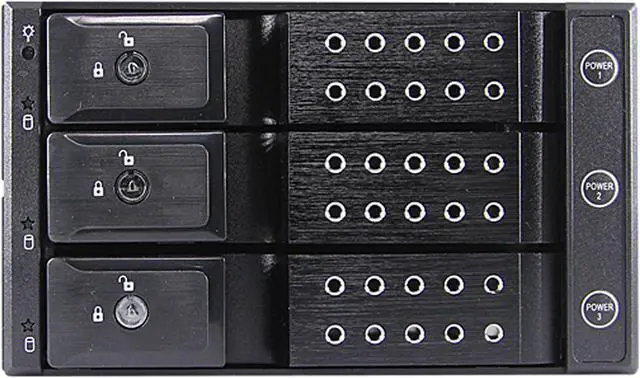

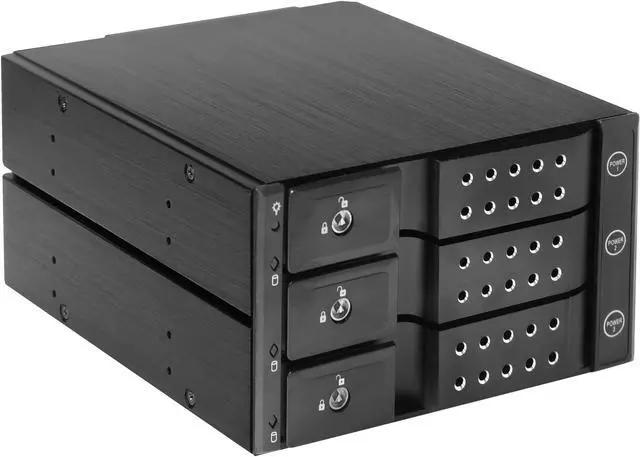

iStarUSA BPN-DE230P-BLACK Trayless 2x 5.25" to 3x 3.5" 12Gb/s HDD Hot-swap Rack with Independent HDD Power Switch
- BPN-DE230P-BLACK
+
+
Learn more about the iStarUSA Inc. BPN-DE230P-BLACK
| Brand | iStarUSA |
|---|---|
| Model | BPN-DE230P-BLACK |
| Specifications | Standard Drive Bays: Hotswap 3.5": 3 5.25" Drives: 2 Hotswap HDD Type: 3.5" SAS I/II/III & SATA I/II/III Indicators: Blue for Power on/ Purple for HDD Access/LED Indicating On/Off Switch Security: Key Lock Material of Front Bezel: Aluminum Material of Handle: Aluminum Material of Main Chassis: Aluminum Color of Front Bezel: Black/ Blue/ Red/ Silver Color of Main Chassis: Black Cooling Fan: 1x70mm Dimensions (WxHxD): 5.71" x 3.35" x 7.64" |
|---|
| Features | Aluminum Frame, designed for heavy-duty purpose Support SAS I/II/III and SATA I/II/III Hard Drives High Performance Transfer Rate up to 12Gb/s Integrative shaping aluminum design for quickest heat sink Aluminum front bezel with metal key lock mechanism for double safety Removable fan cover for easy maintenance Multi-functional LED Indication Support Hot-Swap & RAID Configuration (need an additional RAID controller) Low-noise Design with Fan-speed Control 14TB Hard Drives Compatible Independent HDD Power Switch |
|---|
| First Listed on Newegg | March 24, 2020 |
|---|
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 1 year
- Limited Warranty period (labor): 1 year
- Read full details
Return Policies
- Return for refund until: January 31, 2027
- Return for replacement until: January 31, 2027
- This item is covered by Newegg.com's Extended Holiday Return Policy.
- Read full return policy for details.
We want to ensure your holiday shopping this year is hassle-free. That’s why we’re automatically extending our return policies on almost every product! For purchases placed between November 1st, 2026 and December 31, 2026 you will have until January 31, 2027 to return your product.
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-888-989-1189
- Support Email: tech@istarusa.com
- Support Website
- View other products from iStarUSA Inc.
LOADING...
The iStarUSA BPN-DE230P-BLACK is a trayless hot-swap rack that converts two 5.25-inch bays into three 3.5-inch SAS or SATA drive bays, making it suitable for server builders and storage administrators who need convenient drive access and capacity expansion.
Recommended For
- Home-lab and server builders with two open 5.25-inch bays who want three front-accessible 3.5-inch SATA or SAS drives for storage or drive rotation; hot-swap operation depends on the host controller and system supporting it.
- Workstation or small-server operators who regularly swap bare 3.5-inch drives for local backups or archive rotation and want to insert them without mounting each in a separate tray.
- Users who want to add three 3.5-inch drives to a compatible older PC case while using only two 5.25-inch bays, rather than replacing the case or mounting drives elsewhere.
- System builders who need to switch individual drive power from the front of the cage, for example when choosing which installed drive to use; drive removal should still follow the host system’s safe hot-swap procedure.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | Adding three hot-swap 3.5-inch SAS or SATA drives to a server using two 5.25-inch bays |
| Drive Bays And Compatibility | Three hot-swap 3.5-inch drive bays in a rack designed to fit two 5.25-inch bays; supports SAS I/II/III and SATA I/II/III drives, with compatibility for drives up to 14TB |
| Interface And Transfer Rate | SAS and SATA interface support with transfer rates up to 12Gb/s |
| Hot-Swap And Power Controls | Supports hot-swap and RAID configurations with an additional RAID controller; independent HDD power switch |

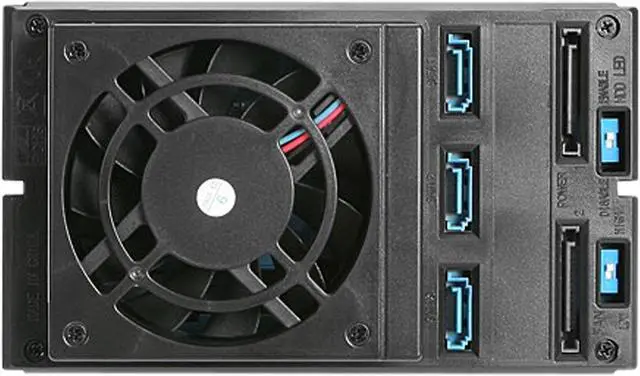

| Cooling | One 70mm fan with fan-speed control and a removable fan cover for maintenance |

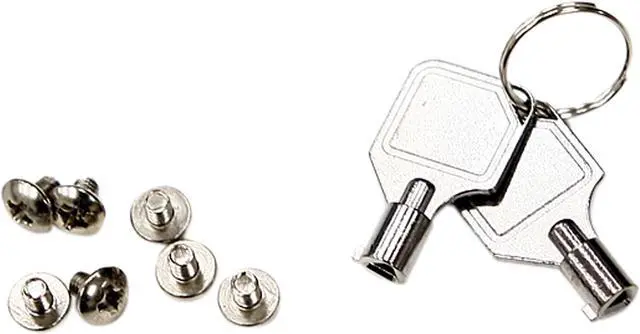

| Indicators And Security | Blue power and purple HDD-access indicators, an LED for the on/off switch, and a key-lock mechanism |

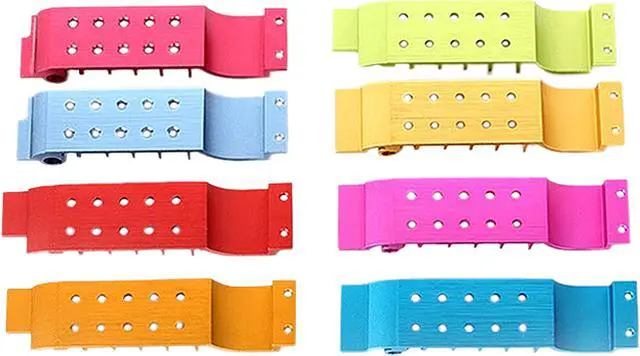

| Construction And Finish | Aluminum front bezel, handle, and main chassis; black chassis with front bezel colors available in black, blue, red, or silver |
| Dimensions | 5.71 × 3.35 × 7.64 inches (W × H × D) |
| Model Identifiers | iStarUSA BPN-DE230P-BLACK |
