Does the key turn on and off each individual bay separately?

the key has nothing to do with the power to the bay, the key simply locks the door to keep the drive from being removed. all 5 bays are constantly powered, and if you have all 5 sata cables connected then they will be connected. theres no way to power off single drives.

What is the HHD total capacity per drive bay?

HDD capacity would depend on the OS/MB/Drivers and not the drive bay itself. If the drive works directly attached to the SATA connector on the MB, it should run in the drive bay. In mine, I have one 250MB SSD (with a 2.5-5.25 adapter), one 1TB HDD, two 2TB HDD's and one 8TB HDD. I'm running an old Gigabyte MA785GMT-UD2H / AMD Phenom II 940x4 and Windows 10 Pro 64 bit.

Can this be set external (Standalone) and if so, how is it then powered?

No, wasn't designed for it. I suppose you could kludge i by running two very long cables from your PSU and 5 very long SATA cables from your mother board, but it would be very ugly, unreliable, and probably unsafe. I wouldn't recommend it.

What ATX cases is this enclosure compatible with?

It's compatible with any case that has 3x 5.25 bays, however you may need to make some modifications. The case I used had "shelves" for each of the drives, which would have blocked this cage - once the tabs were bent out of the way, this fit easily. The tabs are usually visible on pictures of the drive bays, although I did contact some of the manufacturers to ask. FYI, the pictures are misleading - the 5.25 inches is across the 5 drive bays; the doors lift up, not across. Rotate the picture 90 degrees for a more accurate representation.

$125^.99

Limit 3 per customer.

Make an offer

Price alert

Add to wish list

Sold by Newegg

Shipped by Newegg

Best Sellers

PlatinumMicro

Top Rated

4.5 (7,071 total ratings)

$153^.42

Main image of iStarUSA BPN-DE350SS-BLACK 3x5.25" to 5x3.5" SAS/SATA 6.0 Gb/s Trayless Hot-Swap Cage

Alt view image 2 of 6 - iStarUSA BPN-DE350SS-BLACK 3x5.25" to 5x3.5" SAS/SATA 6.0 Gb/s Trayless Hot-Swap Cage

Alt view image 3 of 6 - iStarUSA BPN-DE350SS-BLACK 3x5.25" to 5x3.5" SAS/SATA 6.0 Gb/s Trayless Hot-Swap Cage

Alt view image 4 of 6 - iStarUSA BPN-DE350SS-BLACK 3x5.25" to 5x3.5" SAS/SATA 6.0 Gb/s Trayless Hot-Swap Cage

Alt view image 5 of 6 - iStarUSA BPN-DE350SS-BLACK 3x5.25" to 5x3.5" SAS/SATA 6.0 Gb/s Trayless Hot-Swap Cage

Alt view image 6 of 6 - iStarUSA BPN-DE350SS-BLACK 3x5.25" to 5x3.5" SAS/SATA 6.0 Gb/s Trayless Hot-Swap Cage

Customer images

Shop All IStarUSA Inc. Products

iStarUSA BPN-DE350SS-BLACK 3x5.25" to 5x3.5" SAS/SATA 6.0 Gb/s Trayless Hot-Swap Cage

(17)(1) Write a Review

Color: Black

Color of Front Bezel: Black
Standard Drive Bays: 3 x 5.25" Drives, 5 x Hotswap 3.5"
Hotswap HDD Type: 3.5" SAS I/II & SATA I/II/III
Indicators: Blue for Power on/ Purple for HDD Access

This item is covered under the Manufacturer Only Return Policy.

Overview

Specs

Reviews (17)

Any questions? Our AI beta will help you find out quickly.

Try me now

iStarUSA BPN-DE350SS Three 5.25in. to Five 3.5in. SAS / SATA 6.0Gbps Trayless Hot-Swap Cage

Aluminum frame, designed for heavy-duty purposes
Supports SAS I/II, SATA I/II/III hard drives
Integrative shaping aluminum design for quickest heat sink
Data transfer rate up to 6.0Gbps
Aluminum front bezel with metal key lock mechanism for double safety
Removable fan cover for easy maintenance
Multi-functional LED Indication
Supports hot-swap and RAID configuration (needs an additional RAID controller)
4TB hard drive-compatible

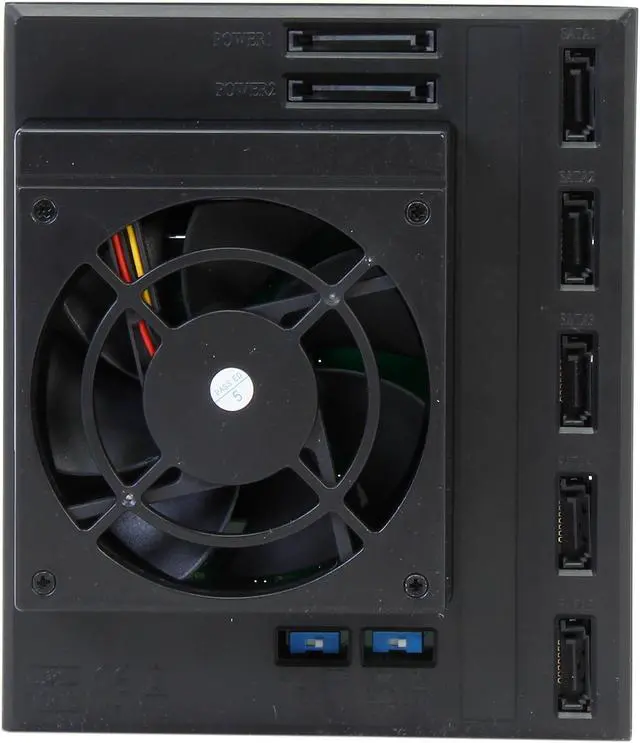

The BPN-DE350SS is iStarUSA's third generation tray-less hot-swap hard drive cage. It features the latest transfer rate technology of 6.0Gbps (SATA I/II/III and SAS I/II), and is RAID-capable. It also comes with adjustable fans speed and ultra-quiet cooling fans. The LED display lights feature the new blue light by popular demand. Heat dissipation is enhanced by the full aluminum construction and a 80mm fan. SATA power connector increases compatibility with most power supplies. The metal key locks help secure your hard drives and prevent unauthorized access. Converting three standard 5.25in. drive bays into five usable hard drive slots, it is economically designed to maximize your investment.

Specifications

Model Number	BPN-DE350SS
RoHS Compliance Version	Yes
Standard Drive Bays	5.25in. Drives: Three Hotswap 3.5in. Drives: Five
Hotswap HDD Type:	3.5in. SAS I/II & SATA I/II/III
Indicators	Blue for Power On/ Purple for HDD Access
Security	Key Lock
Material of Front Bezel	Aluminum
Material of Handle	Aluminum
Material of Main Chassis	Aluminum
Color of Front Bezel	Black, Blue, Red, Silver
Color of Main Chassis	Black
Cooling Fan	1 x 80mm
Ordering Information (Part Number)	Black Handle: BPN-DE350SS-BLACK Blue Handle: BPN-DE350SS-BLUE Red Handle: BPN-DE350SS-RED Silver Handle: BPN-DE350SS-SILVER
Dimensions (HxWxD)	4.92in. x 5.71in. x 7.79in. 125mm.0 x 145.0mm x 197.9mm

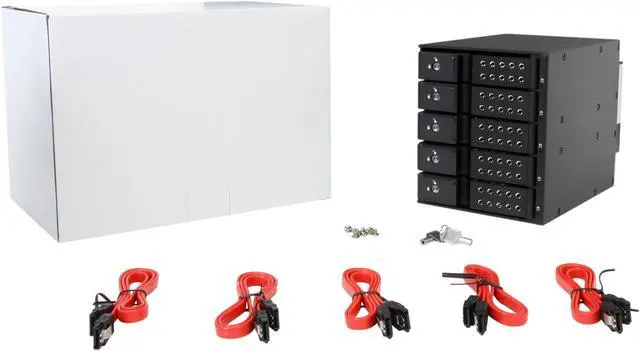

What's in the Box

Best Seller Ranking	#52 in Server Accessories

Model
Brand	iStarUSA
Model	BPN-DE350SS-BLACK

Details
Type	Hot-Swap Cage
Color	Black Bezel
Specifications	Color of Front Bezel: Black Standard Drive Bays: 3 x 5.25" Drives, 5 x Hotswap 3.5" Hotswap HDD Type: 3.5" SAS I/II & SATA I/II/III Indicators: Blue for Power on/ Purple for HDD Access Security: Key Lock Material of Front Bezel/Handle/Main Chassis: Aluminum Cooling Fan: 1x80mm Dimensions: 5.71" x 4.92" x 7.79"

Features
Features	Aluminum Frame, designed for heavy-duty purpose Support SAS I/II, SATA I/II/III Hard Drives Integrative shaping aluminum design for quickest heat sink Data Transfer Rate up to 6.0 Gb/s Aluminum front bezel with metal key lock mechanism for double safety Removable fan cover for easy maintenance Multi-functional LED Indication Support Hot-Swap & RAID Configuration (need an additional RAID controller) 3TB Hard Drives Compatible.

Additional Information
First Listed on Newegg	June 25, 2013
