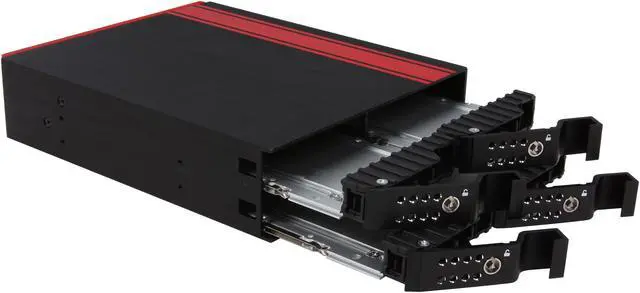

iStarUSA BPU-124DE-SS 1 x 5.25" to 4 x 2.5" SATA/SAS 6.0Gb/s Hot-Swap Backplane RAID Cage

  • All Aluminum Material Solid Construction
  • Plug & Play, Hot Swappable
  • Built-In 2 x 40mm Cooling Fans
  • Supports 4 x 2.5" SAS I / II (Primary Channel) and SATA I / II / III HDDs
  • Supports HDD Thickness up to 15mm
+
+
Overview
Specs
Reviews (9)
See all Q & A

Any questions? Ask CelesteSM will help you find out quickly.

5.25" to 4 x 2.5" SATA/SAS 6.0Gbps Hot-Swap Backplane RAID Cage
Model: BPU-124DE-SS


Overview

High storage availability in a compact design, the BPU-124DE-SS adds extra storage and hot-swap capability to satisfy any application needs. The BPU-124DE-SS is constructed of aluminum material that provides best heat dissipation required for high performance 2.5" SATA and SAS drives. The housing is designed with excellent front to back airflow cooling with two 40mm fans. BPU-124DE-SS is an ideal solution for 2.5" HDD RAID and JBOD applications.


BPU-124DE-SS BPU-124DE-SS

Features
  • High Performance Transfer Rate Up to 6.0Gbps
  • All Aluminum Material Solid Construction
  • Plug & Play, Hot Swappable

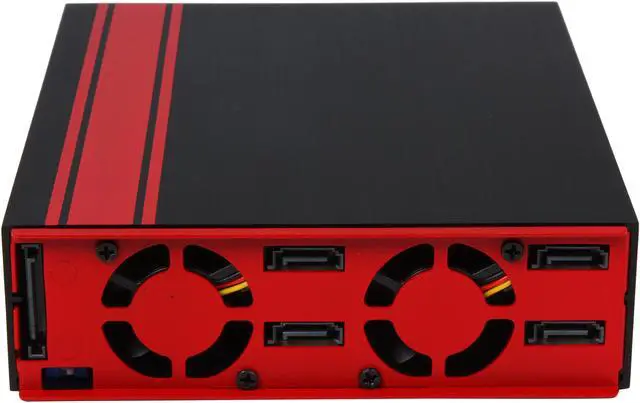

  • Built-in 2 x 40mm Cooling Fans
  • LEDs for Power & HDD Activity
  • Supports 4 x 2.5" SAS I/II (Primary Channel) and SATA I/II/III HDDs
  • Support HDD Thickness from 7 to 15mm


Technical Specifications


Model Number
BPU-124DE-SS
RoHS Compliance Version
Yes
Standard Drive Bays
2.5" Hotswaps: Four | 5.25" Drives: 1
Hotswap HDD Type
2.5" SAS I/II & SATA I/II/III
Indicators
Power and HDD access; Fast red blinking: overheating; Slow red blinking: fan failure
Security
Key Lock
Material of Main Chassis
Aluminum
Color of Main Chassis
Black
Cooling Fan
2 x 40mm
Dimensions (W x H x D)
5.75 x 1.65 x 7.09" (146.0 x 41.9 x 180.1mm)
Notes
HTS code: 8573.30.5100 | ECCN: EAR99


Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year
  • Read full details

Return Policies

    We want to ensure your holiday shopping this year is hassle-free. That’s why we’re automatically extending our return policies on almost every product! For purchases placed between November 1st, 2026 and December 31, 2026 you will have until January 31, 2027 to return your product.

  • Return for refund until: January 31, 2027
  • Return for replacement until: January 31, 2027
  • This item is covered by Newegg.com's Extended Holiday Return Policy.
  • Read full return policy for details.
LOADING...
LOADING...

The iStarUSA BPU-124DE-SS is a hot-swap drive cage that converts one 5.25-inch bay into four 2.5-inch SATA or SAS bays, making it suitable for server and RAID/JBOD builds that need compact, serviceable storage.

Recommended For

  • PC builders or technicians who regularly swap 2.5-inch SATA or SAS drives for testing, OS imaging, or troubleshooting and have an available 5.25-inch bay.
  • Small-server or workstation builders who want four front-accessible 2.5-inch drives for SATA/SAS RAID or JBOD setups and already have a compatible controller or motherboard connections.
  • Users consolidating several 2.5-inch SSDs or hard drives into one legacy 5.25-inch bay who value quick drive access without opening the computer case.
  • Builders who need a metal, actively cooled drive cage for a fixed desktop or rackmount system and can verify that their chassis’ 5.25-inch bay fits the unit.

Spec Summary

AttributeValue
Best ForAdding hot-swap capacity for up to four 2.5-inch SATA or SAS drives in a single 5.25-inch bay
Drive Bays And CompatibilityConverts one 5.25-inch bay to four 2.5-inch drive bays; supports SAS I/II and SATA I/II/III drives with thicknesses from 7 to 15 mm
Installation And Transfer RatePlug-and-play, hot-swappable operation with transfer rates up to 6.0 Gb/s
Cooling And IndicatorsTwo built-in 40 mm fans; LEDs indicate power and HDD activity, with fast red blinking for overheating and slow red blinking for fan failure
Construction And DimensionsAluminum chassis in black; 5.75 × 1.65 × 7.09 inches (W × H × D)

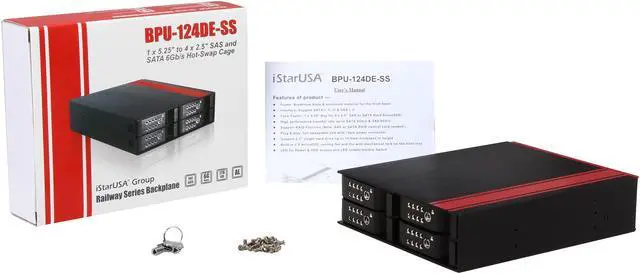

Security And Included ItemsKey lock; package includes the drive cage, screws, manual, and keys
Model IdentifiersiStarUSA BPU-124DE-SS
