iStarUSA BPU-230HD-BLUE 2 x 5.25" to 3 x 3.5" 2.5" 12Gb/s HDD SSD Hot-swap Rack

Be the first to review this product...

BPU-230HD-BLUE

Specs

Reviews

See all Q & A

Any questions? Ask Celeste^SM will help you find out quickly.

Try me now

Learn more about the iStarUSA Inc. BPU-230HD-BLUE

Model
Brand	iStarUSA
Model	BPU-230HD-BLUE

Details
Type	Hot-swap Rack

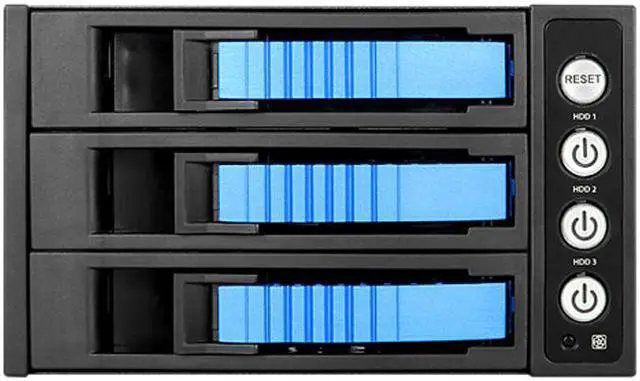

Specifications	RoHS Compliance: Yes Standard Drive Bays: 3 x 3.5" Hotswap 2 x 5.25" Drives Hotswap HDD Type: 2.5" & 3.5" SAS I/II/III & SATA I/II/III Indicators: Power, HDD, fan, and high temperature Material of Front Bezel: Aluminum Material of Handle: Aluminum Material of Main Chassis: Aluminum Design with Conductive Dissipation Grooves Color of Front Bezel: Blue Color of Main Chassis: Black Package Content: SATA Cable Included (3pcs) Cooling Fan: 1 x 70mm Dimensions: 3.39" x 5.75" x 8.22"

Features
Features	Stylish aluminum color handle and heat-sink body Support Hot-Swap & RAID Configuration (need an additional RAID controller) Aluminum Design with Conductive Dissipation Grooves Power, fan and high temperature LED indicators High Performance Transfer Rate up to 12Gb/s Supports Both 2.5" and 3.5" SAS I/II/III & SATA I/II/III HDD / SSD Equipped with Fan Speed Control Switch 14TB Hard Drives Compatible

Additional Information
First Listed on Newegg	August 02, 2019

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 1 year
Limited Warranty period (labor): 1 year
Read full details

Return Policies

We want to ensure your holiday shopping this year is hassle-free. That’s why we’re automatically extending our return policies on almost every product! For purchases placed between November 1st, 2026 and December 31, 2026 you will have until January 31, 2027 to return your product.

Return for refund until: January 31, 2027
Return for replacement until: January 31, 2027
This item is covered by Newegg.com's Extended Holiday Return Policy.
Read full return policy for details.

Manufacturer Contact Info

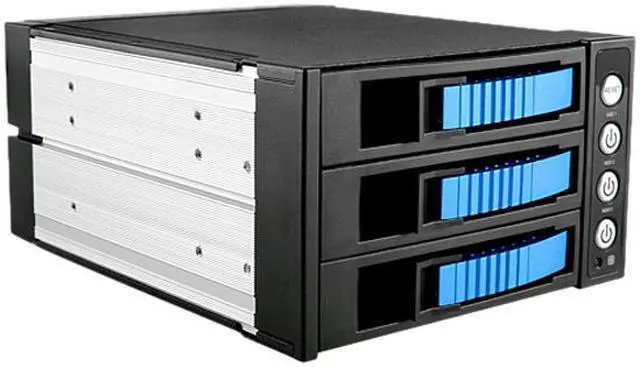

The iStarUSA BPU-230HD-BLUE is a hot-swap drive rack that converts two 5.25-inch bays into three drive bays for 2.5- or 3.5-inch SAS/SATA HDDs and SSDs. It suits server and workstation builders who need convenient drive access and support for transfer rates up to 12Gb/s.

Recommended For

Owners of a tower or server chassis with two available 5.25-inch bays who want to add three front-accessible, hot-swappable 3.5-inch or 2.5-inch SATA/SAS drives.
Small-server, NAS, or SOHO storage builders who need to add a compact set of swappable drives for disk-to-disk backups or storage redundancy, with a compatible RAID controller if RAID is required.
Video or audio editing and security-system workstation builders who need several removable drives in a chassis with limited 5.25-inch bay space.
Users who value drive-status and temperature monitoring in a multi-drive build; the rack provides power, HDD, fan, and high-temperature indicators.

Spec Summary

Attribute	Value
Best For	Hot-swap storage expansion in a system with two 5.25-inch bays, supporting 2.5- and 3.5-inch SAS or SATA drives
Drive Bays And Compatibility	Three 3.5-inch hot-swap bays and two 5.25-inch drive bays; supports 2.5- and 3.5-inch SAS I/II/III and SATA I/II/III HDDs or SSDs, with hard drives up to 14 TB compatible
Interface And Transfer Rate	Up to 12 Gb/s transfer rate; supports hot-swap and RAID configurations, with an additional RAID controller required
Cooling And Indicators	One 70 mm cooling fan with a fan-speed control switch; power, HDD, fan, and high-temperature indicators
Construction And Appearance	Aluminum front bezel, handle, and main chassis with conductive dissipation grooves; blue bezel and black chassis; RoHS compliant
Dimensions And Weight	3.39 × 5.75 × 8.22 inches; item weight 3 pounds

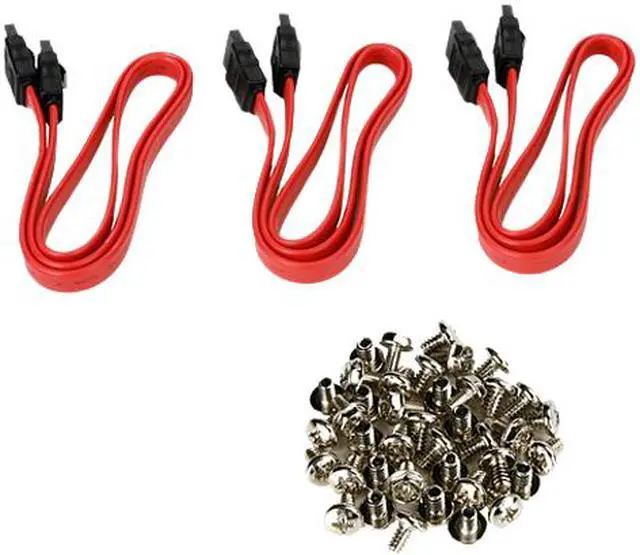

Included Accessories	Three SATA cables included
Model Identifiers	iStarUSA BPU-230HD-BLUE

Item#: N82E16816215778
