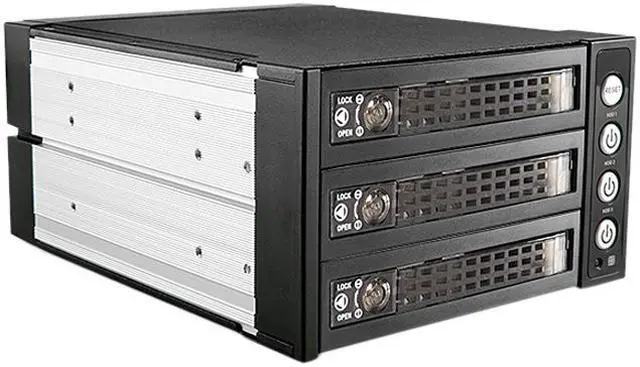

iStarUSA BPU-230SATA-KL 2x 5.25" to 3x 3.5" 2.5" SAS SATA 6 Gbps HDD SSD Hot-swap Rack with Key Lock
- BPU-230SATA-KL
+
+
Learn more about the iStarUSA Inc. BPU-230SATA-KL
| Brand | iStarUSA |
|---|---|
| Model | BPU-230SATA-KL |
| Type | Other |
|---|---|
| Specifications | Standard Drive Bays: Hotswap 3.5": 3 5.25" Drives: 2 Hotswap HDD Type: 3.5" SAS I / II & SATA I / II / III Indicators: Power, HDD, fan, and high temperature Security: Key Lock Material of Handle: Plastic Material of Main Chassis: Aluminum Design with Conductive Dissipation Grooves Color of Main Chassis: Black Package Content: SATA Cable Included (3pcs) Cooling Fan: 1x70mm |
| Features | Stylish aluminum heat-sink body Support Hot-Swap & RAID Configuration (need an additional RAID controller) Aluminum Design with Conductive Dissipation Grooves Power, fan and high temperature LED indicators High Performance Transfer Rate up to 6.0 Gb/s Support 2.5"/ 3.5" SAS I/ II & SATA I/ II/ III HDDs Equipped with Fan Speed Control Switch 6TB Hard Drive Compatible Triangle Key Lock HDD Tray |
|---|
| First Listed on Newegg | November 11, 2015 |
|---|
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 1 year
- Limited Warranty period (labor): 1 year
- Read full details
Return Policies
- Return for refund until: January 31, 2027
- Return for replacement until: January 31, 2027
- This item is covered by Newegg.com's Extended Holiday Return Policy.
- Read full return policy for details.
We want to ensure your holiday shopping this year is hassle-free. That’s why we’re automatically extending our return policies on almost every product! For purchases placed between November 1st, 2026 and December 31, 2026 you will have until January 31, 2027 to return your product.
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-888-989-1189
- Support Email: tech@istarusa.com
- Support Website
- View other products from iStarUSA Inc.
LOADING...
The iStarUSA BPU-230SATA-KL is a hot-swap rack that converts two 5.25-inch bays into three bays for 2.5- or 3.5-inch SAS/SATA drives, making it suitable for server builders who need removable storage; RAID requires a separate controller.
Recommended For
- Video or audio editors with a desktop workstation that has two open 5.25-inch bays and need three front-accessible drives for project storage or drive swaps.
- Small-office or home-server builders who want to add three hot-swappable drives for disk-to-disk backups, with the option to use SAS or SATA drives.
- Security-system builders with a compatible desktop or server chassis who need several internal drives in a front-accessible hot-swap cage.
- PC owners who regularly replace or rotate drives and want a lockable, front-accessible tray system rather than opening the case for each drive change.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | Server storage setups needing three hot-swap SAS/SATA drives, with RAID support available through an additional controller |
| Drive Bays And Compatibility | Converts two 5.25-inch bays to three hot-swap 3.5-inch bays; supports 2.5- and 3.5-inch SAS I/II and SATA I/II/III drives |
| Interface And RAID | Transfer rates up to 6.0 Gb/s; supports RAID configuration with an additional RAID controller |
| Drive Capacity Compatibility | Listed as compatible with 6 TB hard drives |

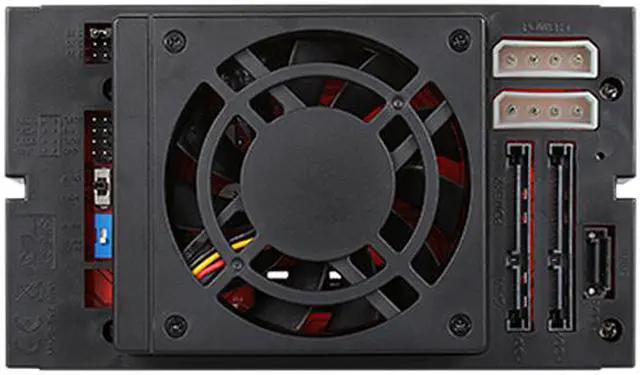

| Cooling And Status | One 70 mm fan with a fan-speed control switch; power, HDD, fan, and high-temperature indicators |
| Security And Construction | Triangle key-lock drive trays; aluminum chassis with conductive dissipation grooves and plastic handles; black chassis |

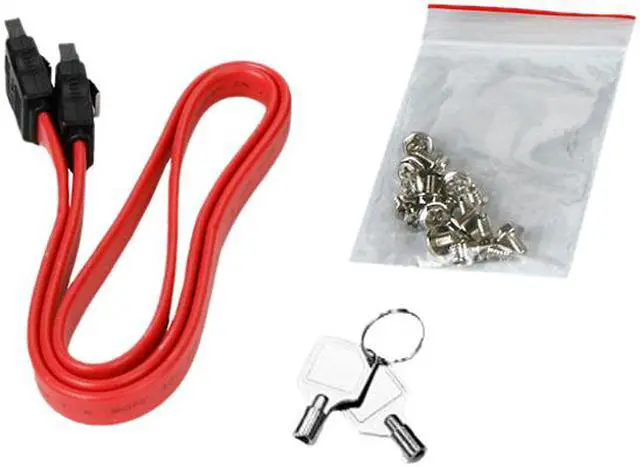

| Included Accessories | Three SATA cables included |
| Dimensions And Weight | 7.95 × 3.39 × 5.72 inches; item weight 3 lb |
| Model Identifiers | iStarUSA BPU-230SATA-KL |
