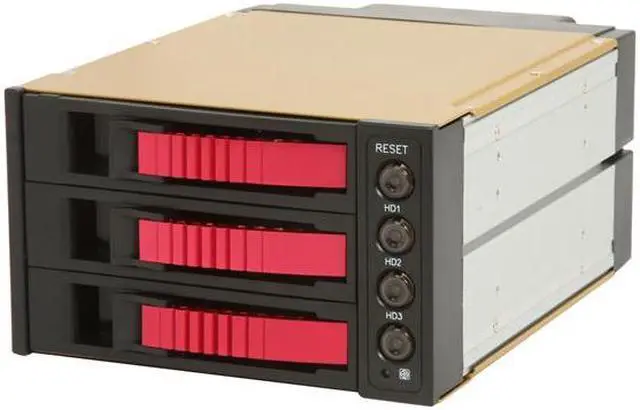

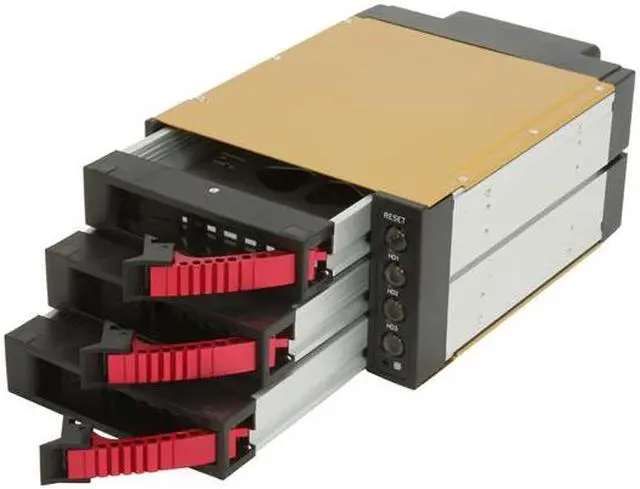

iStarUSA BPU-230SATA Two 5.25in. to Three 3.5in. SATA Hot-swap Raid Cage
Create more space for hard drives with hot-swap capability - the BPU-230SATA series supports RAID 1 / 0 / 1+0 / 5 configurations for high performance or redundancy data applications. Aluminum construction provides light weight but strong stability and an extra 70mm fan keeps hard drives at maximum performance. A high density multi-disk storage backplane allows multiple 3.5in. SAS/SATA hard drives to be mounted into two standard 5.25in. Aluminum construction provides great heat dissipation - required for high performance SAS/SATA drives - and is designed with excellent front to back vent airflow. Applications: Digital Audio Editing, Video Editing (SD or HD), Security Systems, SOHO SMEs With Limited HDD Tray, and Data Protection or Disk-to-Disk Backup
Features
- Stylish aluminum color handle and heat-sink body
- Supports Hot-Swap and RAID Configuration (needs an additional RAID controller)
- Aluminum Design with Conductive Dissipation Grooves

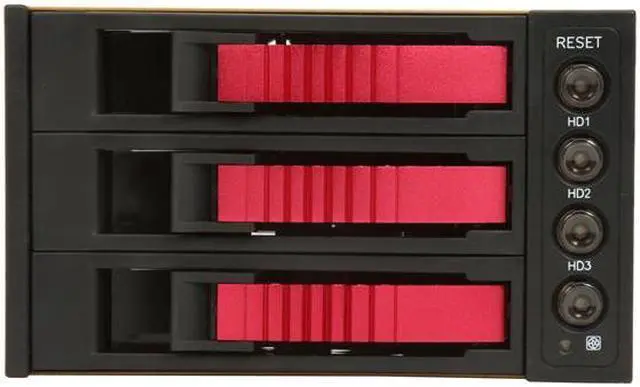

- Power, fan and high temperature LED indicators
- High Performance Transfer Rates - up to 6Gbps
- Supports 2.5in./3.5in. SAS I/II and SATA I/II/III HDDs
- Equipped with Fan Speed Control Switch
- 4TB Hard Drive Compatible
Specifications
| Model Number | BPU-230SATA |
| RoHS Compliance Version | Yes |
| Standard Drive Bays |
5.25in. Drives: Two Hotswap 3.5in.: Three |
| Hotswap HDD Type: | 3.5in. SAS I/II and SATA I/II/III |
| Indicators | Power, HDD, fan, and high temperature |
| Material of Front Bezel | Aluminum |
| Material of Handle | Aluminum |
| Material of Main Chassis | Aluminum Design with Conductive Dissipation Grooves |
| Color of Front Bezel | Black / Blue / Red / Silver |
| Color of Main Chassis | Black |
| Package Content | SATA Cable Included (3pcs) |

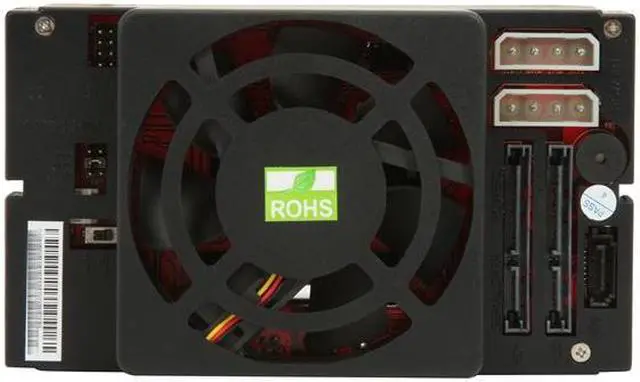

| Cooling Fan | 1 x 70mm |
|
Ordering Information (Part Number) |
Black Tray:BPU-230SATA-BLACK Blue Tray:BPU-230SATA-BLUE Red Tray:BPU-230SATA-RED Silver Tray:BPU-230SATA-SILVER |
| Dimensions (W x H x D) |
5.75in. x 3.39in. x 7.95in. 146mm x 86.1mm x 201.9mm |

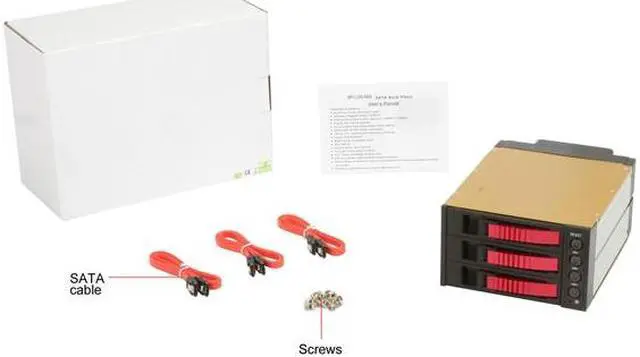

What's in the Box
Warranty & Returns
Warranty, Returns, And Additional Information
Return Policies
- Return for refund until: January 31, 2026
- Return for replacement until: January 31, 2026
- This item is covered by Newegg.com's Extended Holiday Return Policy.
- Read full return policy for details.
We want to ensure your holiday shopping this year is hassle-free. That’s why we’re automatically extending our return policies on almost every product! For purchases placed between November 1st, 2025 and December 31, 2025 you will have until January 31, 2026 to return your product.
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-626-303-8885 x 110
- Support Email: tech@istarusa.com
- Support Website
- View other products from iStarUSA Inc.
LOADING...
The iStarUSA BPU-230SATA-RED is a red hot-swap drive cage that fits three 3.5-inch SATA drives into two 5.25-inch bays, making it suitable for server or workstation builders who need to add multiple drives to a compatible chassis.
Recommended For
- Home-server and NAS builders with two unused 5.25-inch bays who want to add three front-accessible 3.5-inch drives for local storage.
- Workstation or server owners who regularly replace or rotate SATA/SAS hard drives and want hot-swap access without opening the computer case.
- Data-hoarding and backup-PC builders who need to consolidate three internal hard drives into two legacy 5.25-inch bays while keeping drive access at the front.
- DIY storage-system builders who want a drive cage with an included cooling fan and drive-status indicators, and already have compatible SATA/SAS connections in the system.
Real-World Use Scenarios
- When building a custom home NAS or small storage server in a case with two unused 5.25-inch bays, the cage provides front-access slots for three drives, making the disks easier to remove or replace; the case still needs suitable cooling and cable clearance.
- When a drive in a supported storage system needs replacement, a user can access it through the front tray rather than opening the computer case; successful hot-swapping also depends on the system’s controller, operating system, and drive configuration.
- When converting an older tower with two open 5.25-inch bays into a larger local-storage system, the cage consolidates three 3.5-inch drives into that space, reducing the need to replace the case just to add drive bays.
- For a video or audio workstation that needs several local hard drives, the cage groups up to three drives in accessible front bays; any RAID or redundancy setup requires a separate compatible RAID controller or software.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | Server builds needing a hot-swap SATA hard drive cage |
| Drive Interface And Hot-Swap | SATA 2.0 interface with hot-swap capability |
| Cooling | One 80 mm cooling fan |
| Construction And Finish | All-aluminum design with conductive dissipation grooves and a red finish |
| Model Identifiers | iStarUSA BPU-230SATA-RED hard drive cage |
