iStarUSA BPU-230SATA-SILVER 2x5.25" to 3x3.5" SAS/SATA 6.0 Gb/s Hot-Swap Cage - Silver - OEM
- BPU-230SATA-SILVER
- Silver
Any questions? Ask CelesteSM will help you find out quickly.

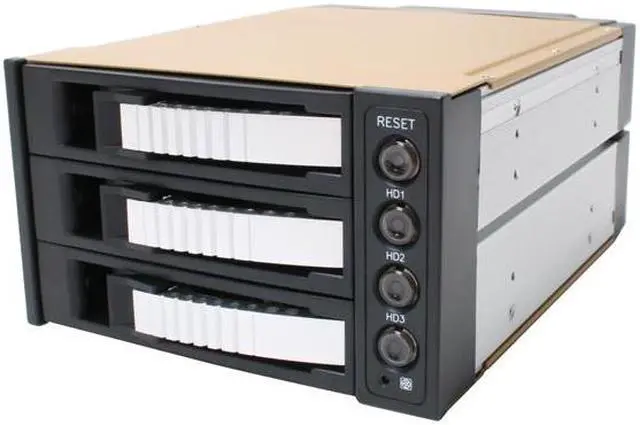

iStarUSA BPU-230SATA Two 5.25in. to Three 3.5in. SATA Hot-swap Raid Cage
Create more space for hard drives with hot-swap capability - the BPU-230SATA series supports RAID 1 / 0 / 1+0 / 5 configurations for high performance or redundancy data applications. Aluminum construction provides light weight but strong stability and an extra 70mm fan keeps hard drives at maximum performance. A high density multi-disk storage backplane allows multiple 3.5in. SAS/SATA hard drives to be mounted into two standard 5.25in. Aluminum construction provides great heat dissipation - required for high performance SAS/SATA drives - and is designed with excellent front to back vent airflow. Applications: Digital Audio Editing, Video Editing (SD or HD), Security Systems, SOHO SMEs With Limited HDD Tray, and Data Protection or Disk-to-Disk Backup
Features

- Stylish aluminum color handle and heat-sink body
- Supports Hot-Swap and RAID Configuration (needs an additional RAID controller)
- Aluminum Design with Conductive Dissipation Grooves
- Power, fan and high temperature LED indicators
- High Performance Transfer Rates - up to 6Gbps
- Supports 2.5in./3.5in. SAS I/II an SATA I/II/III HDDs
- Equipped with Fan Speed Control Switch
- 4TB Hard Drive Compatible
Specifications

| Model Number | BPU-230SATA |
| RoHS Compliance Version | Yes |
| Standard Drive Bays |
5.25in. Drives: Two Hotswap 3.5in.: Three |
| Hotswap HDD Type: | 3.5in. SAS I/II and SATA I/II/III |
| Indicators | Power, HDD, fan, and high temperature |
| Material of Front Bezel | Aluminum |
| Material of Handle | Aluminum |
| Material of Main Chassis | Aluminum Design with Conductive Dissipation Grooves |
| Color of Front Bezel | Black / Blue / Red / Silver |
| Color of Main Chassis | Black |

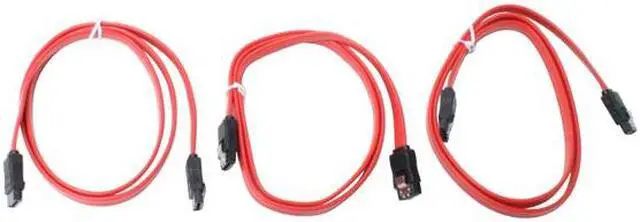

| Package Content | SATA Cable Included (three pieces) |

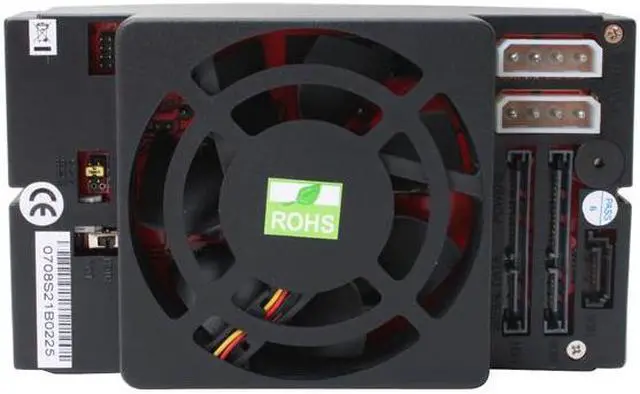

| Cooling Fan | 1 x 70mm |
|
Ordering Information (Part Number) |
Black Tray:BPU-230SATA-BLACK Blue Tray:BPU-230SATA-BLUE Red Tray:BPU-230SATA-RED Silver Tray:BPU-230SATA-SILVER |
| Dimensions (W x H x D) |
5.75in. x 3.39in. x 7.95in. 146mm x 86.1mm x 201.9mm |

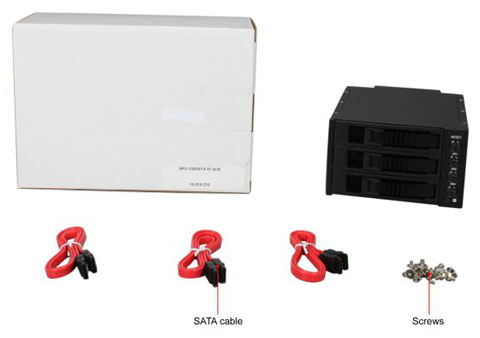

What's in the Box

Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 1 year
- Limited Warranty period (labor): 1 year
- Read full details
Return Policies
- Return for refund until: January 31, 2027
- Return for replacement until: January 31, 2027
- This item is covered by Newegg.com's Extended Holiday Return Policy.
- Read full return policy for details.
We want to ensure your holiday shopping this year is hassle-free. That’s why we’re automatically extending our return policies on almost every product! For purchases placed between November 1st, 2026 and December 31, 2026 you will have until January 31, 2027 to return your product.
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-888-989-1189
- Support Email: tech@istarusa.com
- Support Website
- View other products from iStarUSA Inc.
The iStarUSA BPU-230SATA-SILVER is a hot-swap drive cage that fits into two 5.25-inch bays and holds three 3.5-inch SAS/SATA drives, making it suitable for server or workstation builders who need more accessible storage in a compatible case.
Recommended For
- Home-lab and small-server builders with two unused 5.25-inch bays who want three hot-swappable SATA/SAS drives in a single chassis.
- Video or audio editors and security-system operators who keep several working drives in a desktop or server and need to swap storage without opening the case.
- Small-office or home-server users who want a front-accessible drive cage for disk-to-disk backups or RAID, and already have—or plan to add—the required RAID controller.
- Builders repurposing an older tower or rackmount case who want to increase drive capacity while retaining its two 5.25-inch bays.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | Adding hot-swap SAS/SATA drive capacity to a system with two 5.25-inch drive bays |
| Drive Bays And Compatibility | Fits two 5.25-inch bays and provides three hot-swap 3.5-inch bays; supports 3.5-inch SAS I/II and SATA I/II/III HDDs, plus 2.5-inch SATA/SAS drives |
| Interface And Transfer Rate | SAS/SATA connectivity with transfer rates up to 6.0 Gb/s |
| Cooling And Indicators | Includes one 80 mm fan with fan-speed control; LED indicators show power, HDD, fan, and high temperature |
| Construction And Color | Aluminum chassis with conductive dissipation grooves and an aluminum handle; silver finish |
| Included Accessories | Three SATA cables included |
| Compliance | RoHS compliant |
| Item Weight | 4 lb |
| Model Identifiers | iStarUSA BPU-230SATA-SILVER |
