iStarUSA BPU-340-SA- BLUE 3x5.25" to 4x3.5" SATA2.0 Hot-Swap Backplane Raid Cage - OEM

  • BPU-340-SA- BLUE
+
+
Overview
Specs
Reviews (11)
See all Q & A

Any questions? Ask CelesteSM will help you find out quickly.

iStarUSA Hot-Swap Cage - Three 5.25" to Four 3.5" SATA

With a high level Raid and high storage availability in a compact design, the BPU-340SA series adds extra storage and hot-swap capability to satisfy any application needs. Aluminum body and extra 80mm cooling fan subsystem complete a high-end data storage server or workstation.

High density multi-disk storage backplane allows four 3.5" SATA hard drives to be mounted into three standard 5.25" drive bays. BPU-340SA supports RAID 1/0/5 configurations for high performance or redundancy data application. The aluminum construction provides best heat dissipation required for high performance SAS/SATA drives, and is designed with excellent front-to-back-vent airflow.

Applications: Digital Audio Editing,Video Editing (SD or HD), Security System, SOHO SMEs With Limit HDD Tray and Data Protection or Disk-to-Disk Backup.

Features

StarUSA

  • Stylish aluminum handle and heat-sink body
  • Supports Hot-Swap & RAID Configuration (needs an additional RAID controller)
  • Aluminum Design with Conductive Dissipation Grooves
  • Power, fan and high temperature LED indicators
  • Support 2.5"/3.5" SATA I/II/III HDDs
  • Equipped with Fan Speed Control Switch
  • 4TB Hard Drive Compatible


Specifications

StarUSA

Model Number BPU-340SA
RoHS Compliance Version Yes
Standard Drive Bays 5.25" Drives: 3
Hotswap 3.5": 4
Hotswap HDD Type: SATA I/II/III
Indicators Power, HDD, fan, and high temperature
Material of Front Bezel Aluminum
Material of Handle Aluminum
Material of Main Chassis Aluminum Design with Conductive Dissipation Grooves
Color of Front Bezel Black / Blue / Red / Silver
Color of Main Chassis Black

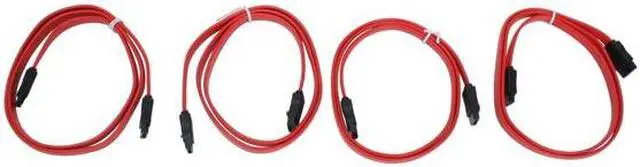

Package Content SATA Cable Included (4 pcs)
Cooling Fan 1 x 80mm
Ordering Information
(Part Number)
Black Tray: BPU-340SA-BLACK
Blue Tray: BPU-340SA-BLUE
Red Tray: BPU-340SA-RED
Silver Tray: BPU-340SA-SILVER
Dimensions (W x H x D) 5.75 x 4.96 x 7.95 inches
146.0 x 126.0 x 201.9mm

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year
  • Read full details

Return Policies

    We want to ensure your holiday shopping this year is hassle-free. That’s why we’re automatically extending our return policies on almost every product! For purchases placed between November 1st, 2026 and December 31, 2026 you will have until January 31, 2027 to return your product.

  • Return for refund until: January 31, 2027
  • Return for replacement until: January 31, 2027
  • This item is covered by Newegg.com's Extended Holiday Return Policy.
  • Read full return policy for details.
LOADING...
LOADING...

The iStarUSA BPU-340-SA- BLUE is a hot-swap drive cage that converts three 5.25-inch bays into four 3.5-inch SATA 2.0 drive bays, suited to server and storage builds that need multiple removable drives in a compact space.

Recommended For

  • Home-server and Windows Home Server builders who have three adjacent 5.25-inch bays and want four front-accessible 3.5-inch drive slots for adding storage or rotating backup drives.
  • PC or server owners who regularly replace or move SATA hard drives and want to access four drives from the case front instead of opening the case for each swap.
  • Builders repurposing a full-size tower with unused 5.25-inch bays who want to consolidate four 3.5-inch drives into one internal cage with an 80 mm fan and drive-status indicators.
  • Users who need a drive cage rather than a RAID controller: the cage provides drive connections and hot-swap bays, while RAID operation requires a compatible controller in the host system.

Spec Summary

AttributeValue
Best ForServer setups needing hot-swap SATA drive access and RAID 0/1/5 support
Storage Interface And RAIDSATA 2.0 hot-swap interface with support for RAID 0/1/5
Cooling And IndicatorsOne 80 mm cooling fan with power, fan, and high-temperature LED indicators
Design And ConstructionAll-aluminum body with conductive dissipation grooves, a balanced handle designed to prevent skew during insertion and removal, and vibration performance that exceeds the stated requirements for high-RPM drives
Included AccessoriesFour SATA cables included
Physical SpecificationsBlue; 10 lb
Model IdentifiersiStarUSA BPU-340-SA- BLUE
