    iStarUSA BPU-340-SA- RED 3x5.25" to 4x3.5" SATA2.0 Hot-Swap Backplane Raid Cage - OEM

    • BPU-340-SA- RED
    +
    +
    Overview
    Specs
    Reviews (3)
    See all Q & A

    Any questions? Ask CelesteSM will help you find out quickly.

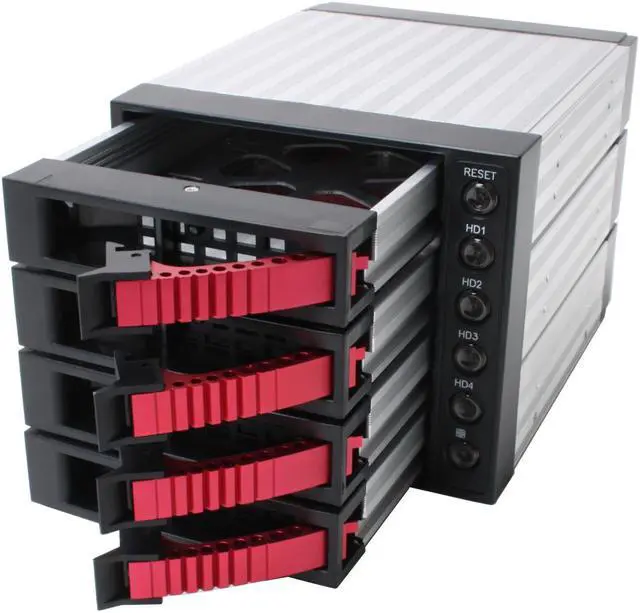

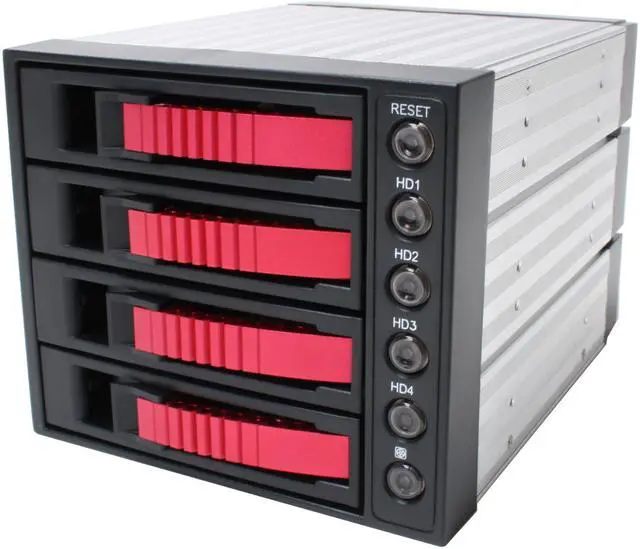

    iStarUSA Hot-Swap Cage - Three 5.25" to Four 3.5" SATA

    With a high level Raid and high storage availability in a compact design, the BPU-340SA series adds extra storage and hot-swap capability to satisfy any application needs. Aluminum body and extra 80mm cooling fan subsystem complete a high-end data storage server or workstation.

    High density multi-disk storage backplane allows four 3.5" SATA hard drives to be mounted into three standard 5.25" drive bays. BPU-340SA supports RAID 1/0/5 configurations for high performance or redundancy data application. The aluminum construction provides best heat dissipation required for high performance SAS/SATA drives, and is designed with excellent front-to-back-vent airflow.

    Applications: Digital Audio Editing,Video Editing (SD or HD), Security System, SOHO SMEs With Limit HDD Tray and Data Protection or Disk-to-Disk Backup.

    Features

    StarUSA

    • Stylish aluminum handle and heat-sink body
    • Supports Hot-Swap & RAID Configuration (needs an additional RAID controller)

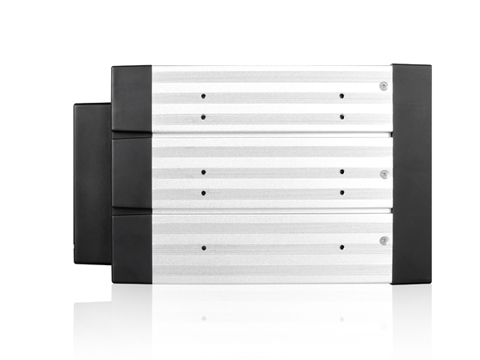

    • Aluminum Design with Conductive Dissipation Grooves
    • Power, fan and high temperature LED indicators
    • Support 2.5"/3.5" SATA I/II/III HDDs
    • Equipped with Fan Speed Control Switch
    • 4TB Hard Drive Compatible


    Specifications

    StarUSA

    Model Number BPU-340SA
    RoHS Compliance Version Yes
    Standard Drive Bays 5.25" Drives: 3
    Hotswap 3.5": 4
    Hotswap HDD Type: SATA I/II/III
    Indicators Power, HDD, fan, and high temperature
    Material of Front Bezel Aluminum
    Material of Handle Aluminum
    Material of Main Chassis Aluminum Design with Conductive Dissipation Grooves
    Color of Front Bezel Black / Blue / Red / Silver
    Color of Main Chassis Black

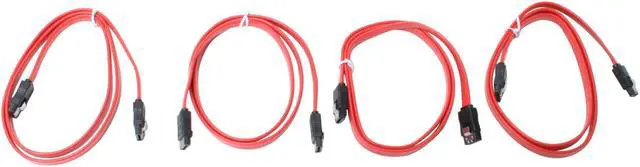

    Package Content SATA Cable Included (4 pcs)

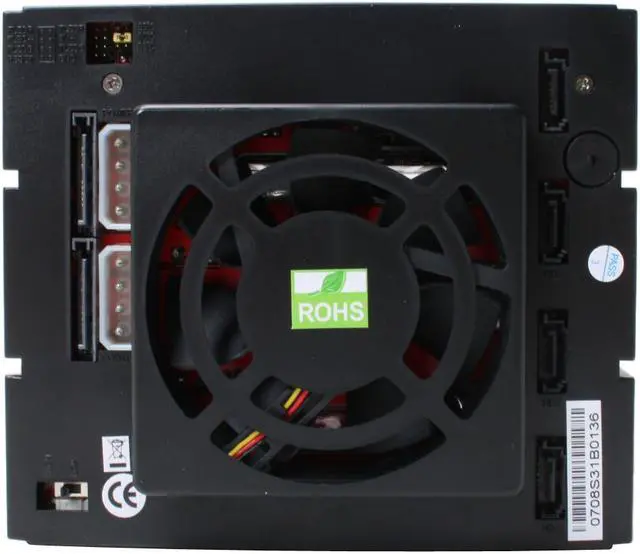

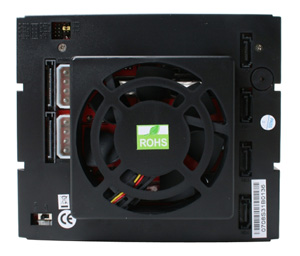

    Cooling Fan 1 x 80mm
    Ordering Information
    (Part Number)
    Black Tray: BPU-340SA-BLACK
    Blue Tray: BPU-340SA-BLUE
    Red Tray: BPU-340SA-RED
    Silver Tray: BPU-340SA-SILVER
    Dimensions (W x H x D) 5.75 x 4.96 x 7.95 inches
    146.0 x 126.0 x 201.9mm

    Warranty & Returns

    Warranty, Returns, And Additional Information

    Warranty

    • Limited Warranty period (parts): 1 year
    • Limited Warranty period (labor): 1 year
    • Read full details

    Return Policies

      We want to ensure your holiday shopping this year is hassle-free. That’s why we’re automatically extending our return policies on almost every product! For purchases placed between November 1st, 2026 and December 31, 2026 you will have until January 31, 2027 to return your product.

    • Return for refund until: January 31, 2027
    • Return for replacement until: January 31, 2027
    • This item is covered by Newegg.com's Extended Holiday Return Policy.
    • Read full return policy for details.
    LOADING...
    LOADING...

    The iStarUSA BPU-340-SA- RED is a SATA 2.0 hot-swap drive cage that converts three 5.25-inch bays into four 3.5-inch drive bays, making it suitable for server and storage builders who need more drive capacity in a compatible chassis.

    Recommended For

    • Home-server or NAS builders with a tower case that has three open 5.25-inch bays and who want to add four front-accessible 3.5-inch SATA drives for storage or backup rotation.
    • Users who regularly exchange SATA hard drives for backups or maintenance and want to remove a drive from the front instead of opening the computer case.
    • Storage-focused workstation builders who need to fit four SATA drives into three 5.25-inch bays and can use the drive-status, fan-fault, and temperature indicators for monitoring.
    • PC builders who value a sturdy aluminum drive cage and have room to install a wired, internally mounted storage module.

    Spec Summary

    AttributeValue
    Best ForHot-swap SATA drive installations that need support for RAID 0, 1, or 5
    Drive Interface And RAIDSATA 2.0 interface with hot-swap capability and RAID 0/1/5 support
    Cooling And Thermal DesignOne 80 mm fan with air ventilation and a heat-sink body featuring conductive dissipation grooves
    Drive VibrationDesigned to exceed rotational vibration requirements for high-RPM drives
    Indicators And OperationPower, fan, and high-temperature LED indicators; plug-and-play operation
    Construction And HandlingAll-aluminum design with a balanced handle intended to prevent skew during insertion and removal
    Included AccessoriesFour SATA cables included
    Weight10 lbs
    Model IdentifiersiStarUSA BPU-340-SA- RED
