iStarUSA BPU-340HD-BLACK 3 x 5.25" to 4 x 3.5" 2.5" 12Gb/s HDD SSD Hot-swap Rack
- BPU-340HD-BLACK
+
+
Specs
Reviews (2)
See all Q & A
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Learn more about the iStarUSA Inc. BPU-340HD-BLACK
| Brand | iStarUSA |
|---|---|
| Model | BPU-340HD-BLACK |
| Type | Hot-swap Rack |
|---|---|

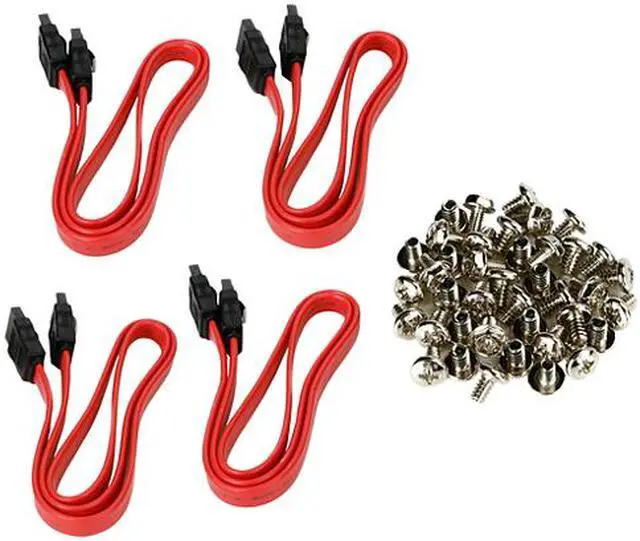

| Specifications | RoHS Compliance: Yes Standard Drive Bays: 4 x 3.5" Hotswap 3 x 5.25" Drives Hotswap HDD Type: 2.5" & 3.5" SAS I/II/III & SATA I/II/III Indicators: Power, HDD, fan, and high temperature Material of Front Bezel: Aluminum Material of Handle: Aluminum Material of Main Chassis: Aluminum Design with Conductive Dissipation Grooves Color of Front Bezel: Black Color of Main Chassis: Black Package Content: SATA Cable Included (4pcs) Cooling Fan: 1 x 80mm Dimensions: 4.96" x 5.75" x 8.03" |
| Features | Stylish aluminum color handle and heat-sink body Support Hot-Swap & RAID Configuration (need an additional RAID controller) Aluminum Design with Conductive Dissipation Grooves Power, fan and high temperature LED indicators High Performance Transfer Rate up to 12Gb/s Supports Both 2.5" and 3.5" SAS I/II/III & SATA I/II/III HDD / SSD Equipped with Fan Speed Control Switch 14TB Hard Drives Compatible |
|---|
| First Listed on Newegg | August 02, 2019 |
|---|
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 1 year
- Limited Warranty period (labor): 1 year
- Read full details
Return Policies
- Return for refund until: January 31, 2027
- Return for replacement until: January 31, 2027
- This item is covered by Newegg.com's Extended Holiday Return Policy.
- Read full return policy for details.
We want to ensure your holiday shopping this year is hassle-free. That’s why we’re automatically extending our return policies on almost every product! For purchases placed between November 1st, 2026 and December 31, 2026 you will have until January 31, 2027 to return your product.
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-888-989-1189
- Support Email: tech@istarusa.com
- Support Website
- View other products from iStarUSA Inc.
LOADING...
The iStarUSA BPU-340HD-BLACK is a hot-swap drive rack that fits four 2.5- or 3.5-inch SAS/SATA HDDs or SSDs into three 5.25-inch bays, making it suitable for server and workstation builders who need compact, accessible storage. It supports transfer rates up to 12Gb/s; RAID requires an additional controller.
Recommended For
- Desktop video or audio editors who have three available 5.25-inch bays and need four internal drives they can hot-swap for project storage or backups.
- Small-office or home-server builders who want to add four hot-swap SAS or SATA drives to a compatible chassis and connect them to their own motherboard or RAID controller.
- Security-system operators who need a chassis-mounted way to access and replace multiple recording drives without removing the drives from inside the computer.
- Workstation or server users who value a sturdy metal drive cage, drive-status indicators, and adjustable fan speed, and can accommodate its internal installation.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | Adding four hot-swap 2.5- or 3.5-inch SAS/SATA drive bays in three 5.25-inch drive bays |
| Drive Compatibility And RAID | Supports up to four 2.5- or 3.5-inch SAS I/II/III or SATA I/II/III HDDs or SSDs; compatible with hard drives up to 14TB. Supports RAID configurations with an additional RAID controller |
| Drive Interface And Transfer Rate | SAS and SATA drive interfaces with transfer rates up to 12Gb/s |
| Cooling And Status Indicators | One 80mm cooling fan with a fan-speed control switch; indicators for power, HDD activity, fan, and high temperature |
| Construction And Color | Aluminum front bezel, handle, and chassis with conductive dissipation grooves; black finish |
| Dimensions | 4.96 × 5.75 × 8.03 inches |
| Included Accessories And Compliance | Four SATA cables included; RoHS compliant |
| Model Identifiers | iStarUSA BPU-340HD-BLACK |
