iStarUSA BPU-350SATA Three 5.25in. to Five 3.5in. SAS/SATA 6.0Gbps Hot-Swap Cage

Stylish aluminum color handle and heat-sink body

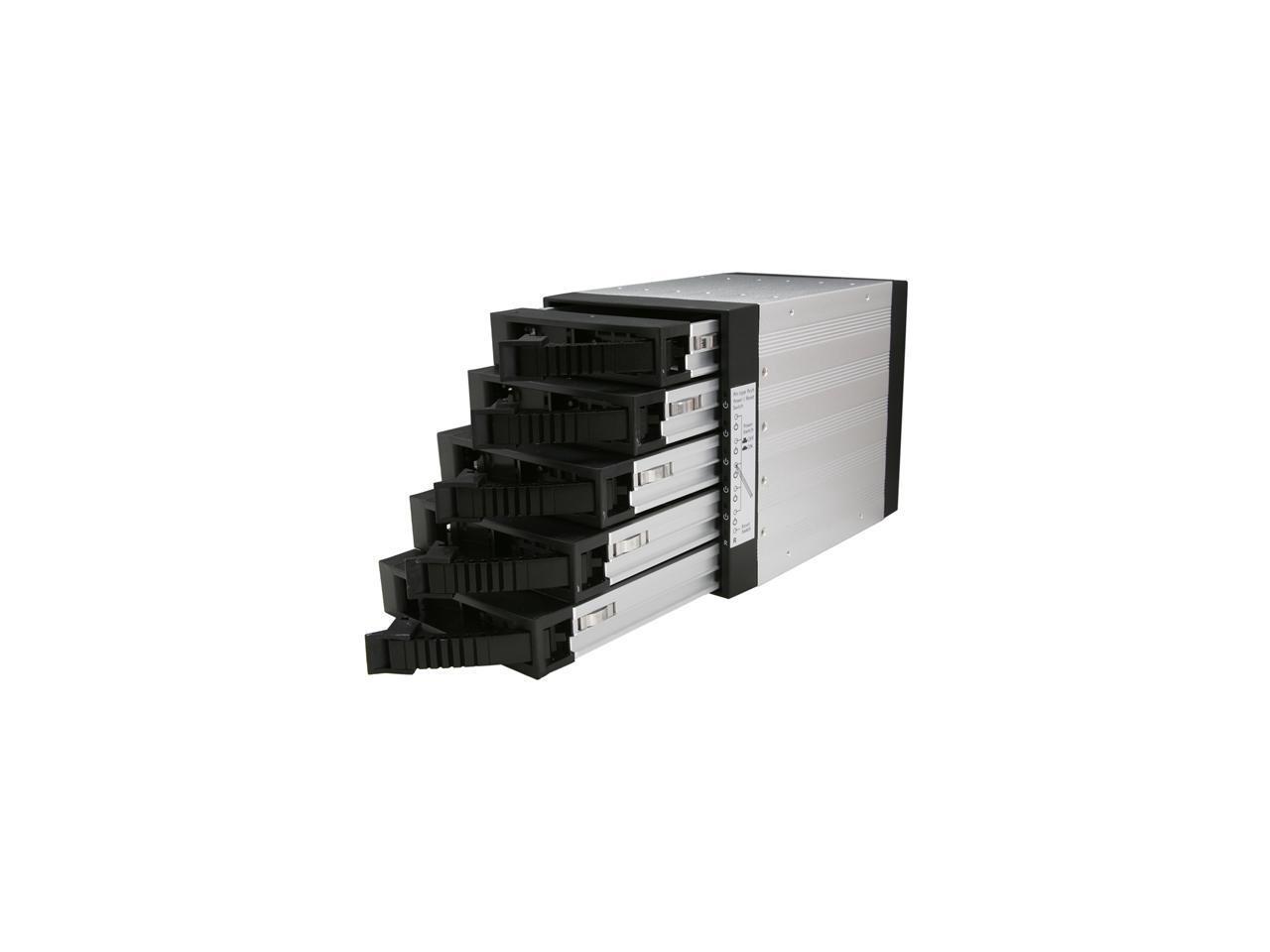

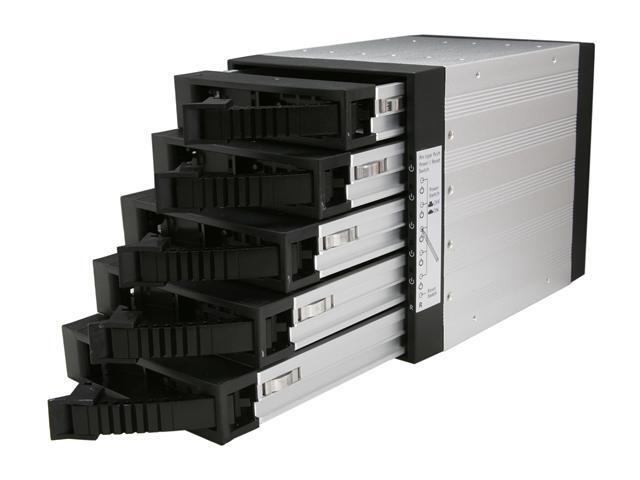

Supports hot-swap and RAID configuration (needs an additional RAID controller)
Aluminum design with conductive dissipation grooves

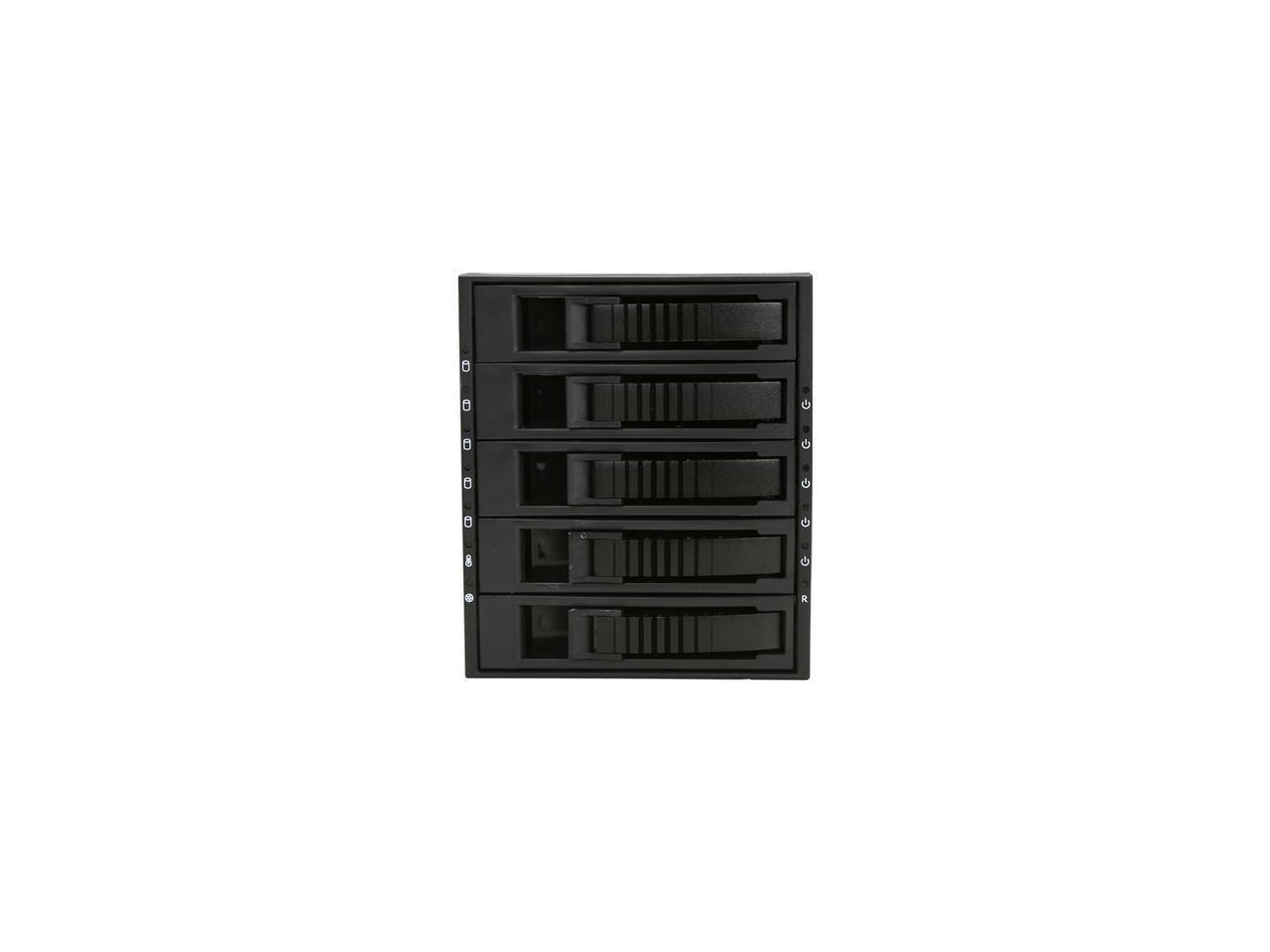

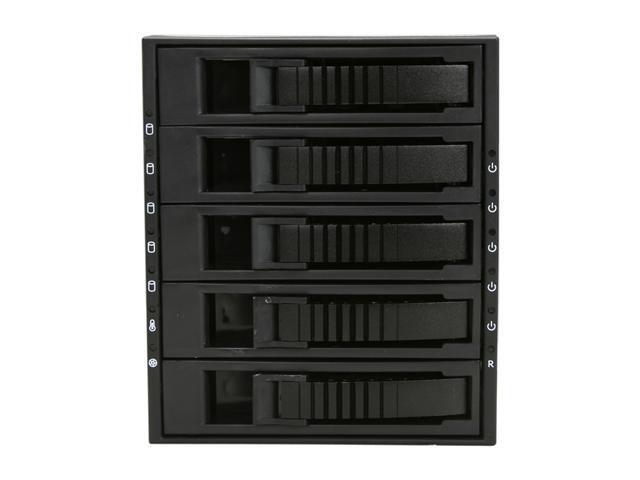

Power, fan and high temperature LED indicators
High performance transfer rate up to 6.0Gbps
Supports 2.5in. / 3.5in. SAS I/II and SATA I/II/III HDDs
Equipped with fan speed control switch
4TB hard drive compatible

High level RAID and high availability storage in a compact design, BPU-350SATA series adds extra storage and hot-swap capability to satisfy any application needs. The BPU-350SATA is constructed of aluminum material that provides the best heat dissipation required for high-performance SAS/SATA drives. It is designed with excellent front to back vent airflow. The BPU-350SATA is an ideal solution for internal server RAID and JBOD applications. Aluminum body and extra 80mm cooling fan subsystem complete a high end data storage server or workstation.

Specifications

Model Number	BPU-350SATA
RoHS Compliance Version	Yes
Standard Drive Bays	5.25in. Drives: Three Hotswap 3.5in. Drives: Five
Hotswap HDD Type:	3.5in. SAS I/II and SATA I/II/III
Indicators	Power, HDD, fan, and high temperature
Material of Front Bezel	Aluminum
Material of Handle	Aluminum

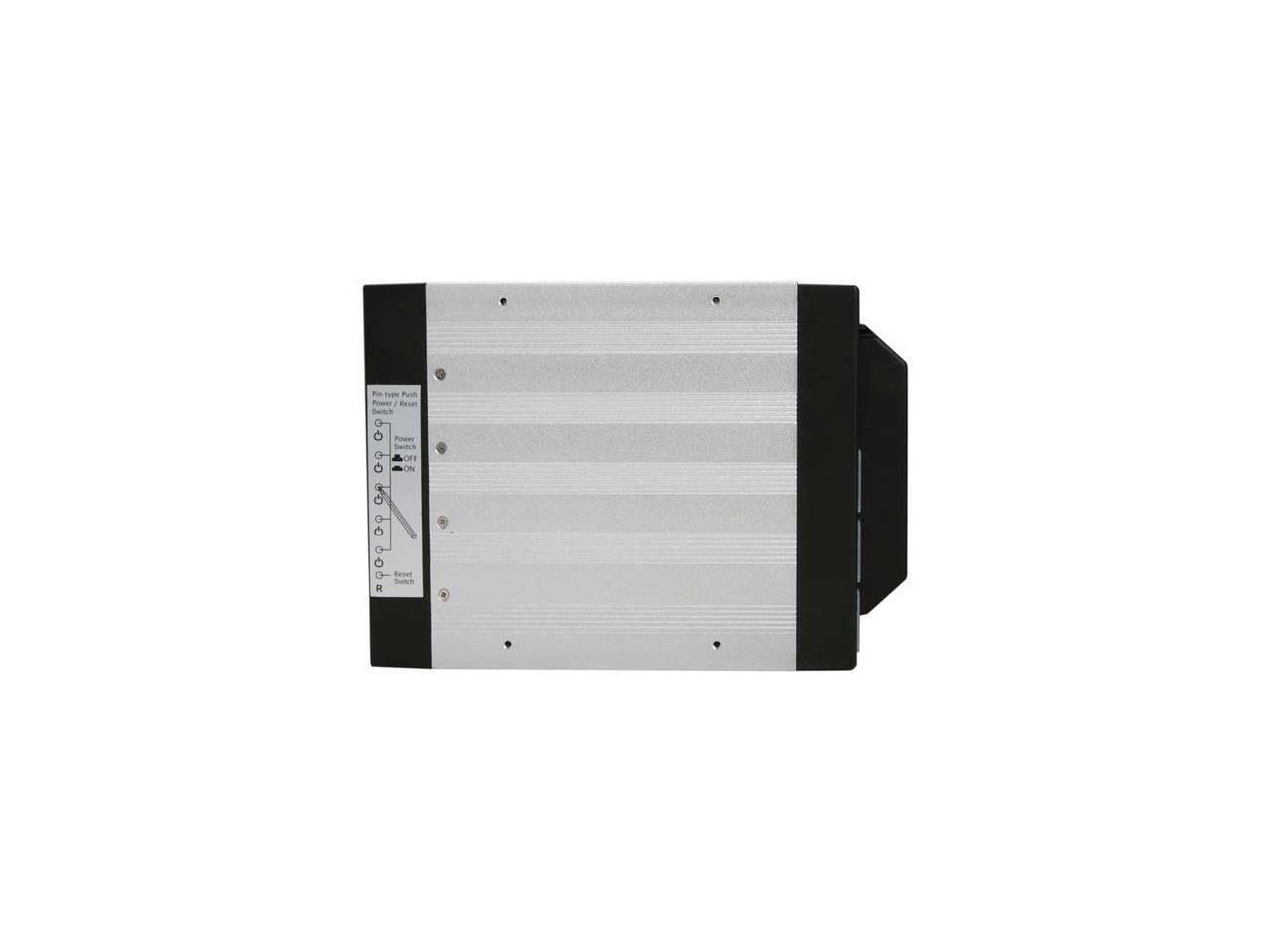

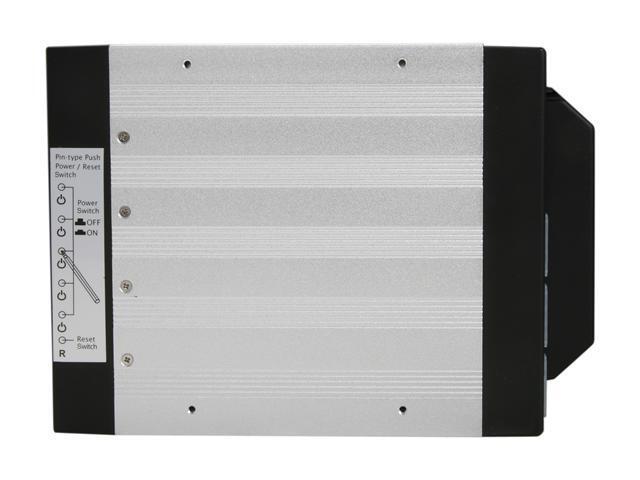

Material of Main Chassis	Aluminum Design with Conductive Dissipation Grooves
Color of Front Bezel	Black, Blue, Red, and Silver
Color of Main Chassis	Black

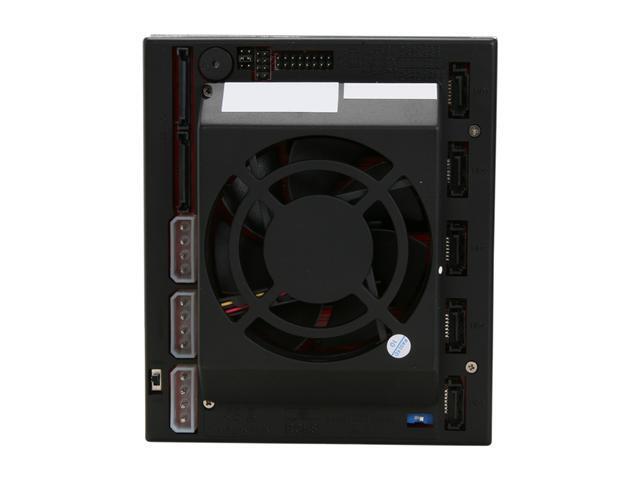

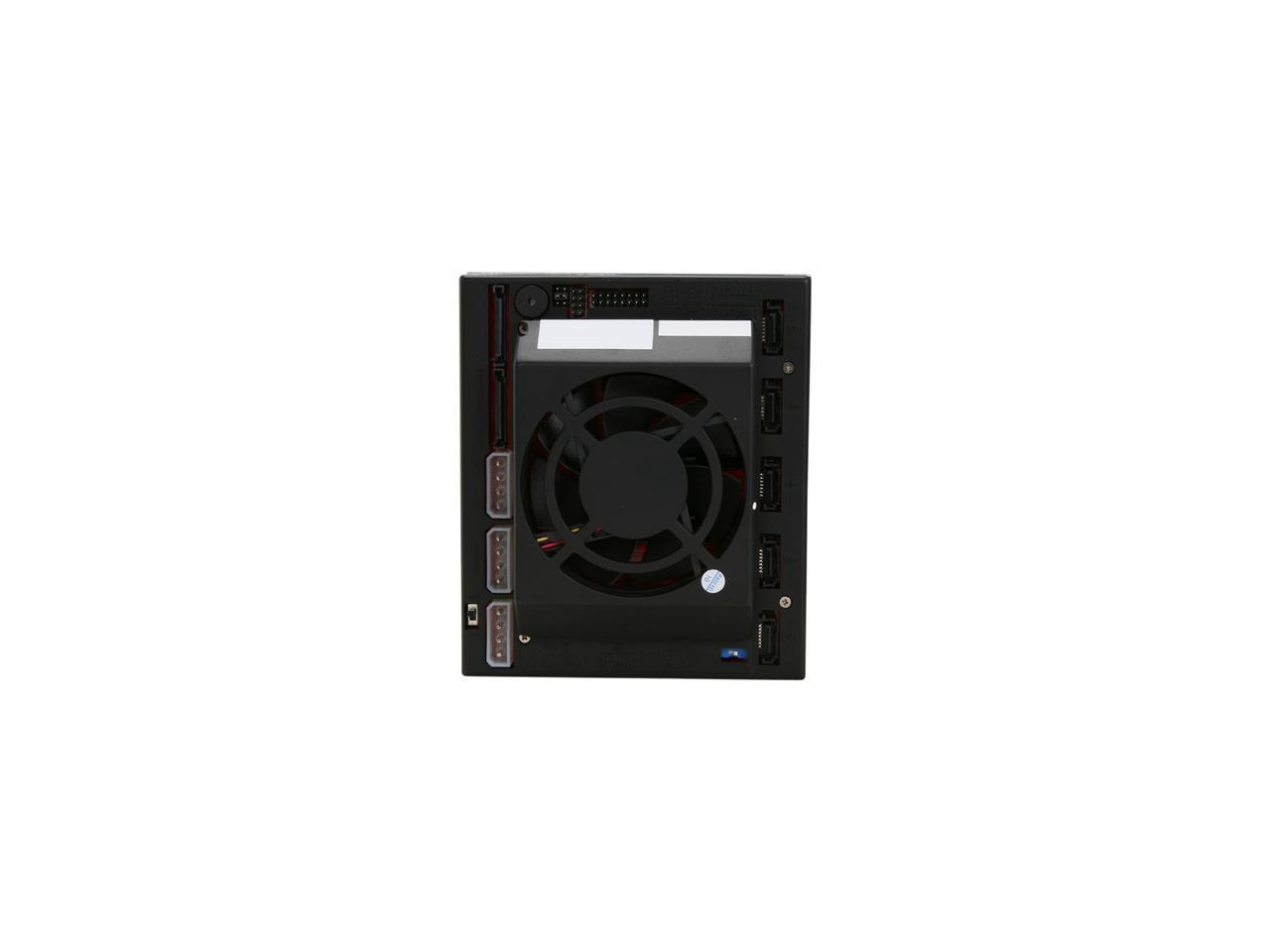

Cooling Fan	1 x 80mm
Ordering Information (Part Number)	Black Tray:BPU-350SATA-BLACK Blue Tray:BPU-350SATA-BLUE Red Tray:BPU-350SATA-RED Silver Tray:BPU-350SATA-SILVER Lockable Tray:BPU-350SATA-BPL
Dimensions (HxWxD)	4.96in. x 5.75in. x 8.11in. (126.0mm x 146.0mm x 206.0mm)

Specifications

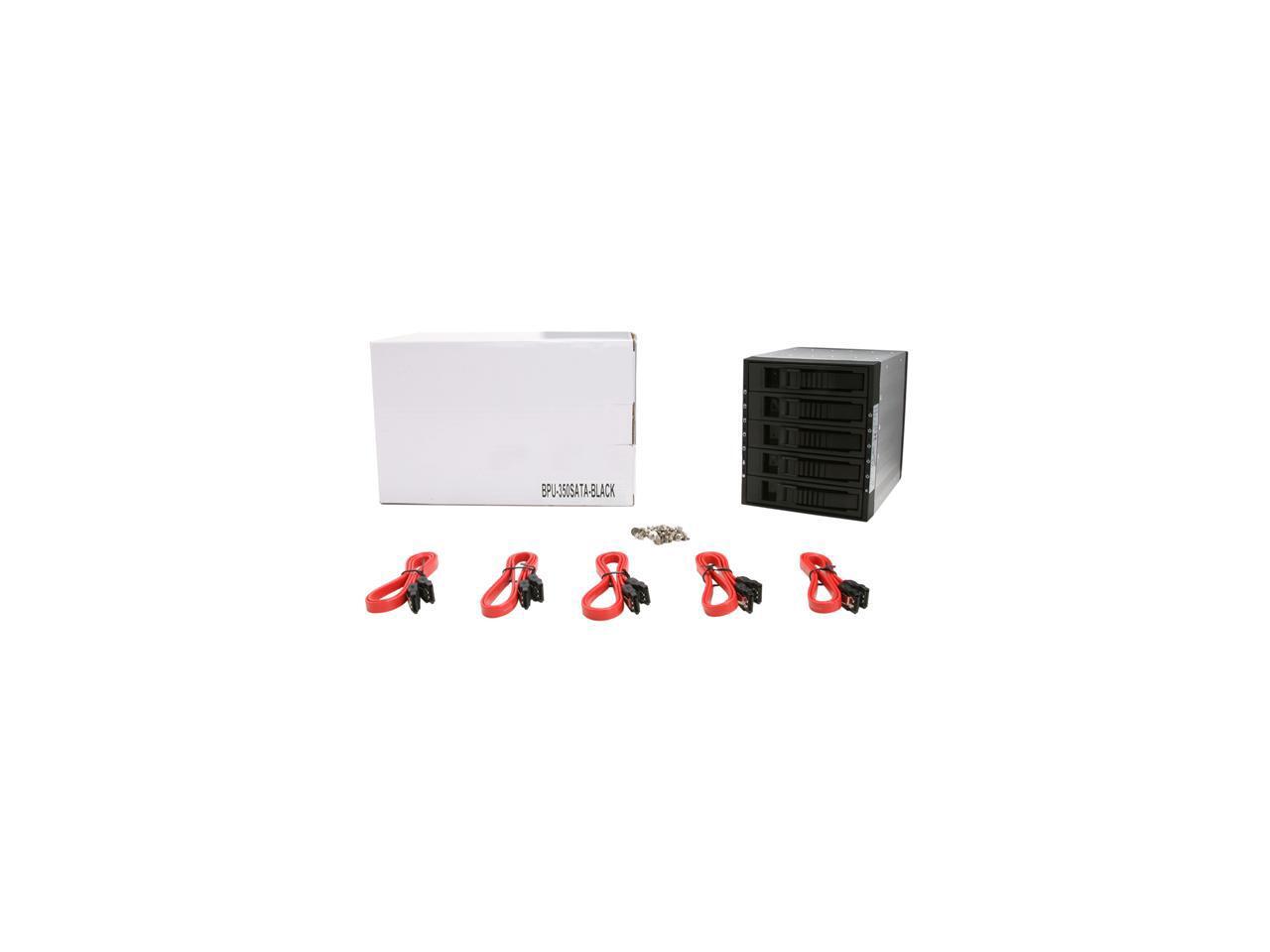

What's in the Box
