iStarUSA D400L7-DE8BK Steel 4U Rackmount High Performance Quiet Server Chassis

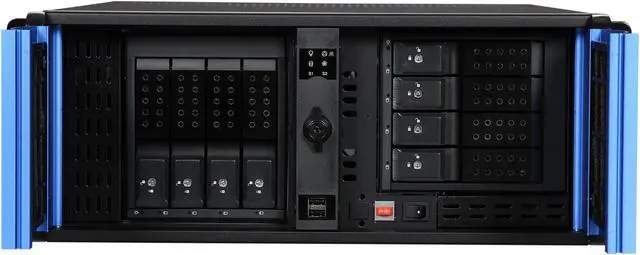

- 8 x 3.5" Black Trayless Hot-Swap Drive Bays
- 1 80mm Fans 3 120mm Fans
Overview
Specs
Reviews (1)
Any questions? Our AI beta will help you find out quickly.
Try me now

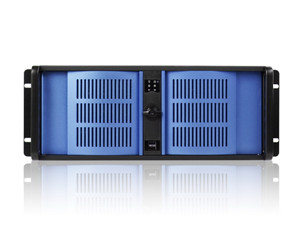

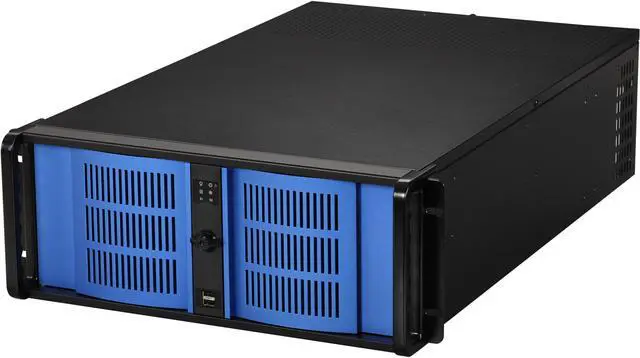

iStarUSA Server Rackmount Chassis D400L7-DE8BK
iStarUSA 4U industrial rackmount chassis D Storm D400L7-DE8BK. Combine with BPU or T Series enable hot-swappable JBOD and RAID configuration. It also supports up to seven full-length full-height add-on cards. Total capacity up to 3.5" x12 or 2.5" x36 HDD drives for high density data storage. Center hot-swappable 120mm fan provides excellent thermal cooling solution. Achieve ultimate uninterrupted operation with support of iStarUSA redundant power supply. D400L7-DE8BK provides your server or cluster maximum flexibility and performance.
Product Features
- Patented Aluminum Front Panel with Locks,Taiwan: 200281 / 190240 , China: 2L01259648.5
- Front Access USB2.0 x2

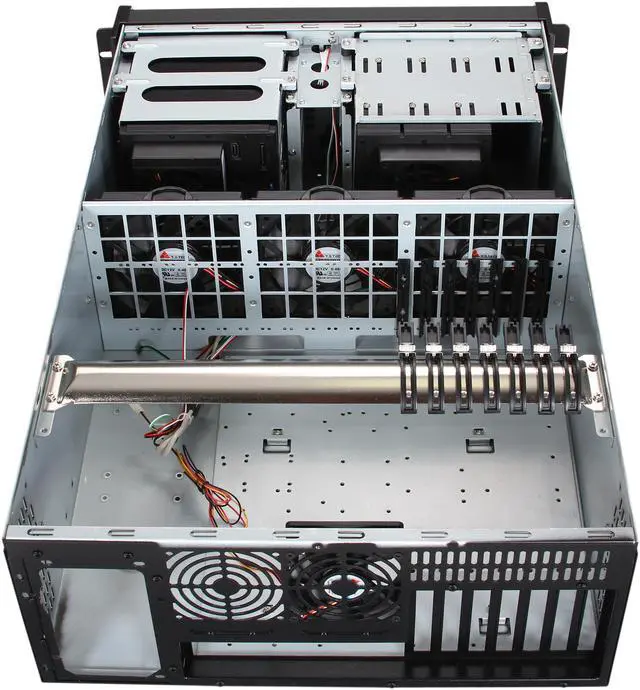

- 120mm x3, 80mm x1 Cooling Fan
- Removable Air Filter
- Power and HDD LED
- Power and Alarm Reset Switch
Specifications
| Model Number | D400L7-DE8BK |
|---|---|
| RoHS Compliance Version | Yes |
| Form factor | 4U |
| Standard Drive Bays | 3.5" Drives: 1 3.5" Drive (internal): 1 5.25" Drives: 7 |
| Indicators | Power, HDD, Temperature, Fan (Fan/Temp require sensor board TC-ISF08 ) |
| Switches | Power, Reset |
| Supported PSU Type | PS2, Mini Redundant |
| Expansion Slots | 7 |
| Security | Front Bezel Key Lock |
| Material of Front Bezel | Aluminum alloy |
| Material of Handle | SECC Zinc-Coated Steel |
| Material of Main Chassis | 1.2mm SECC Zinc-Coated Steel ( Japan Made ) |
| Color of Front Bezel | Blue |
| Color of Main Chassis | Black |
| Front Connector | 2x USB 2.0 |
| Air Filter | Removable & Washable |
| Motherboard Size | 12 x 13 (EATX, ATX, microATX) |

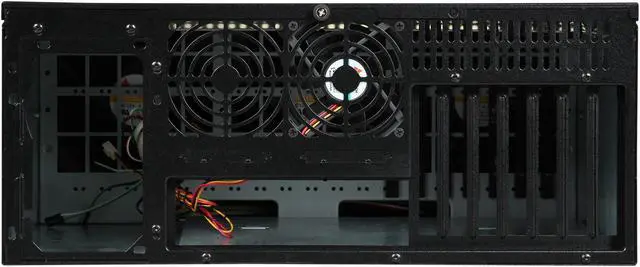

| Cooling Fan | 1x80mm, 3x120mm |
| Optional Fan | 80mm x1 |
| Dimensions (WxHxD) | 19.00" x 7.00" x 27.90" |

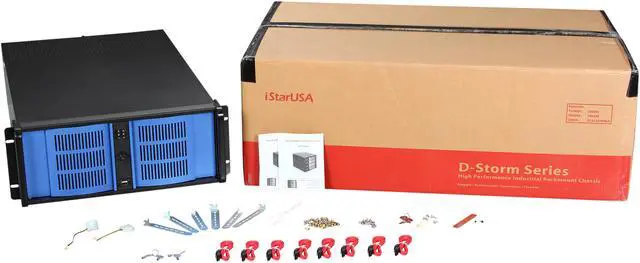

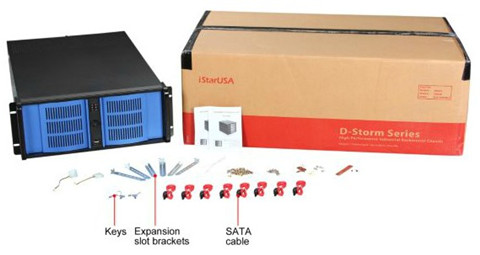

What's in the box
