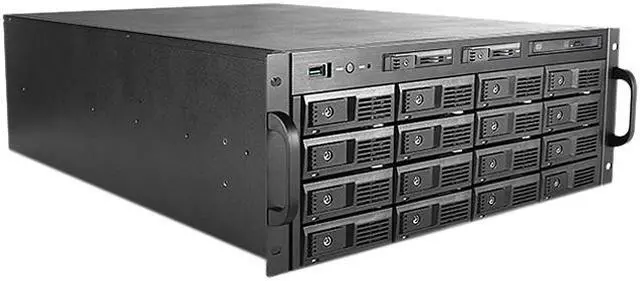

iStarUSA M-4160-X470-1R 4U Rackmount Server Barebone AM4 AMD X470

Be the first to review this product...
  • 4U Rackmount with 550W Redundant PSU

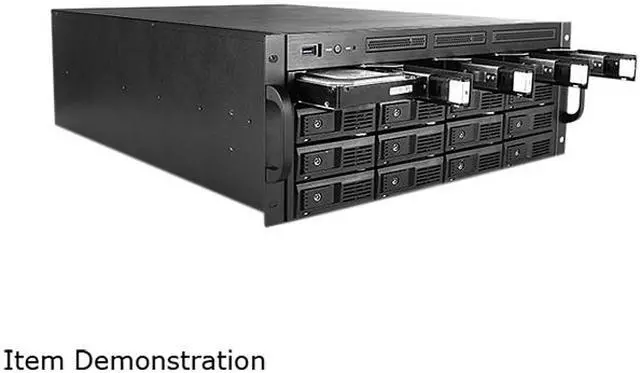

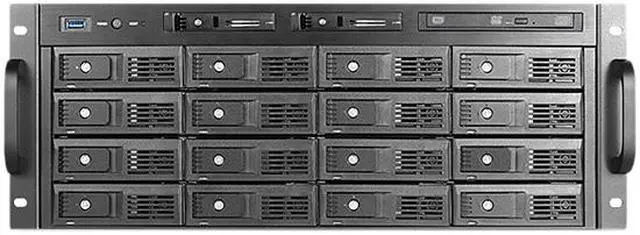

  • 16 Trayless Hot-Swappable Bays for 3.5" HDDs
  • miniSAS (SFF-8087) Backplane
  • Supports AMD AM4 Socket Ryzen Series CPUs
  • Supports 4x DDR4 ECC and non-ECC UDIMM, max. 64 GB
  • Supports up to 6 x SATA3 6.0Gb/s (inculded 1 SATA DOM), 2 x M.2
  • Integrated IPMI 2.0 with KVM and Dedicated LAN (RTL8211E)
  • Supports2 x RJ45 10G base-T by Intel X550-AT2
  • Supports 2 x PCIe 3.0 x16, 1 x PCIE 2.0 x1
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the iStarUSA Inc. M-4160-X470-1R

General
Brand iStarUSA
Model M-4160-X470-1R
Form Factor 4U Rackmount
Material Zinc-Coated Steel
CPU Supported
CPU Type AMD Ryzen Series
CPU Socket AM4
Chipset
North Bridge AMD X470
Memory Supported
Memory Slots 4 x 288Pin
Installed Memory Size No Memory Installed
Max Memory Supported 64GB
Storage Supported
Serial ATA 6 x SATA3 6.0 Gb/s (1x SATA DOM port)
SATA RAID RAID 0/1/10
Graphics
GPU/VPU Aspeed AST2500
Video Memory 256MB DDR4
Expansion Slots
PCI Express 2 x PCIe 3.0 x16
1 x PCIe 2.0 x1
Communications
First LAN Intel X550-AT2
Second LAN Intel X550-AT2
Max. LAN Speed 1 Gigabit
Expansion Bays
Slim Bays 1 x 2.5", 1 x Slim 5.25"
Hot-Swap Bays 16 x 3.5", 2 x 2.5" (Optional)

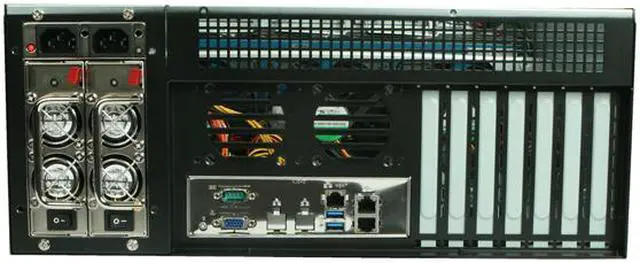

Panel Ports
Front USB 2 x USB 2.0
VGA 1
Rear USB 2 x USB 3.0
RJ45 3
Power Supply
Max. Power 550W Redundant
Features
Features Expansion Slot: 7 x Full Height
M.2: 2 (2242/2260/2280/22110, Supports SATA3 and PCIe 3.0 x2, Supports PCIe 2.0 x4 only)
NVMe Device: 2 (2242/2260/2280/22110):: PCIe 3.0 x2 or supports PCIe 2.0 x4 only
Dimensions & Weight
Dimensions 22.83" x 6.92" x 19.02"
Weight 49.00 lbs.
Additional Information
First Listed on Newegg December 17, 2019

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year
  • Read full details

Return Policies

  • Return for refund within: Non-refundable
  • Return for replacement within: 30 days
  • This item is covered by Newegg.com's Replacement Only Return Policy. Read full return policy for details.
