iStarUSA RP-Rail-20-1U 20" Sliding Rail Kit for 1U Short Rackmount Chassis - OEM
- RP-Rail-20-1U
Any questions? Ask CelesteSM will help you find out quickly.
RP-RAIL-20-1U 20" Sliding Rail Kit for 1U Short Rackmount Chassis

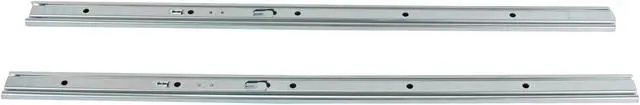

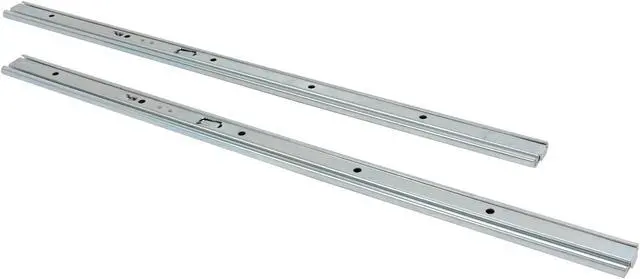

The RP-Rail-20-1U is a ball bearing sliding rails built from SECC steel. The rail is built to last and can hold system weight up to 55 lbs. Increase your accessibility to your rackmount server with this easy to install rackmount sliding rails.
Features
- 1U Height 3 Sections Solid-Bearing Sliding Rails
- Ultra-thin 7.16mm (0.281") Slide Thickness
- Loading Rating up to 55 lbs
- *might need to drill new holes on the inner rails if the pre-drilled holes don't match with chassis
- Supported Cabinet 22" ~ 27" in depth
- Supported Chassis up to 23" in length
- L Shape Bracket: 6"
Specifications
| Model Number | RP-RAIL-20-1U |
|---|---|
| RoHS Compliance Version | Yes |
| Standard Drive Bays | None |
| Material of Main Chassis | 1.2mm SECC Steel |
| Supported Chassis Depth | up to 23" |
| Supported Cabinet Depth | 22" to 27" (front mounting posts to rear posts) |

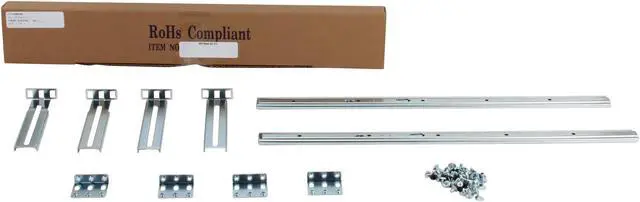

What's in the box
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 1 year
- Limited Warranty period (labor): 1 year
- Read full details
Return Policies
- Return for refund until: January 31, 2027
- Return for replacement until: January 31, 2027
- This item is covered by Newegg.com's Extended Holiday Return Policy.
- Read full return policy for details.
We want to ensure your holiday shopping this year is hassle-free. That’s why we’re automatically extending our return policies on almost every product! For purchases placed between November 1st, 2026 and December 31, 2026 you will have until January 31, 2027 to return your product.
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-888-989-1189
- Support Email: tech@istarusa.com
- Support Website
- View other products from iStarUSA Inc.
The iStarUSA RP-Rail-20-1U is a three-section, solid-bearing sliding rail kit for installing compatible 1U short rackmount chassis, suited to server builders who want easier rack access and need a rail load rating of up to 55 lb.
Recommended For
- IT staff maintaining a short-depth 1U server who need to slide the chassis out for service, provided the chassis is no longer than 23 inches and the rack’s front-to-rear post depth is 22–27 inches.
- Small server-room or lab operators installing a supported iStarUSA 1U chassis, such as a listed D-106 or E1M4, who want sliding access rather than a fixed mounting position.
- Builders fitting a lightweight 1U rackmount system who can keep the supported load at or below 55 lb and verify the chassis mounting-hole pattern before installation.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | Mounting a 1U short rackmount chassis in a compatible 20–26 in cabinet |
| Rail Fit And Adjustment | Adjusts from 20–27 in and supports 20–26 in cabinets; side-mount installation. New holes may be needed on the inner rails if the pre-drilled holes do not match the chassis |
| Rail Design And Load Capacity | 1U, three-section solid-bearing sliding rails rated for up to 55 lb |
| Materials And Dimensions | 1.2 mm SECC steel; 0.281 × 1.06 × 20.0 in (W × H × D), with 0.281 in slide thickness and a 6 in L-shaped bracket |
| Model Identifiers | iStarUSA RP-Rail-20-1U |
