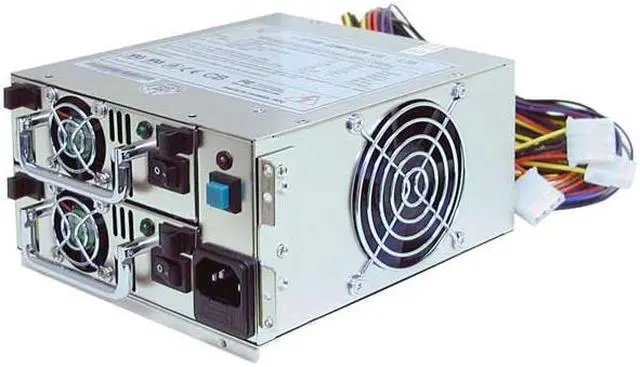

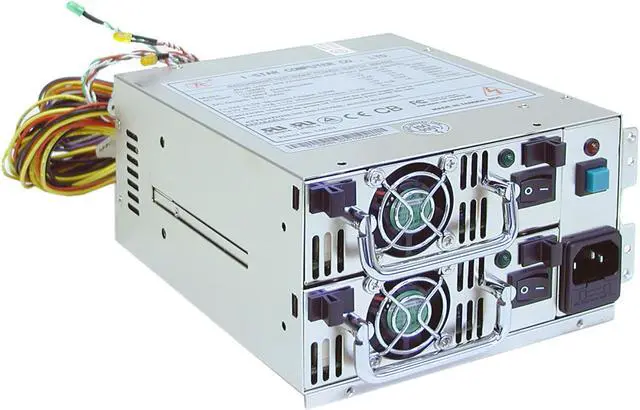

iStarUSA TC-300R8 20+4Pin 2 x 300 W Redundant Power Supply - OEM
- 2 x 300 W Redundant
- 20+4Pin
- 3 Fans
+
+
Specs
Reviews (8)
See all Q & A
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Learn more about the iStarUSA Inc. TC-300R8
| Brand | iStarUSA |
|---|---|
| Model | TC-300R8 |
| Single/Redundant | Redundant |
|---|---|
| Form Factor | Redundant PSU |
| Maximum Power | 2 x 300 W |
| Fans | 3 |

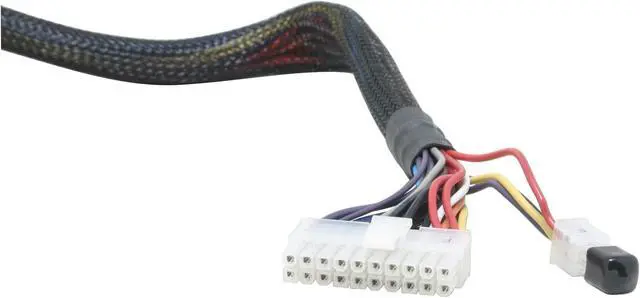

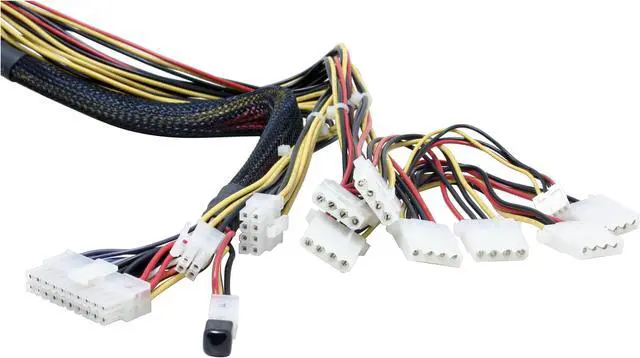

| Main Connector | 20+4Pin |

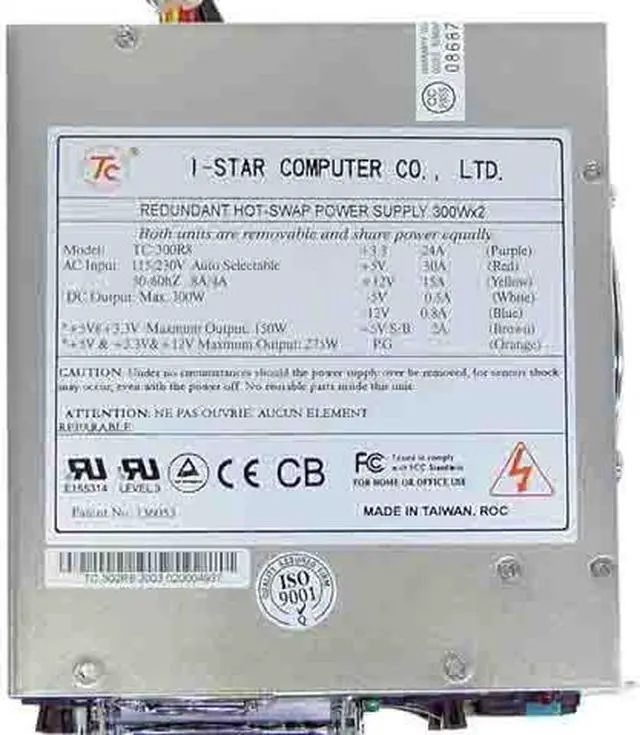

| Output | +3.3V@24A, +5V@30A, [email protected], +12V@15A, [email protected], +5VSB@2A |
| Input Voltage | 115 / 230 V |
| Input Frequency Range | 50/60 Hz |
| Input Current | 8A @ 115V, 4A @ 230V |
| MTBF | >100,000 Hours |
| Efficiency | > = 65% |
| Hold-up Time | 16ms min. |
| Protection | over power; over voltage; short circuits |
| Features | PS/2 Size design Auto Select AC input |
|---|
| Dimensions | 6.9" x 5.9" x 3.4" |
|---|---|
| Weight | 9 lbs. |

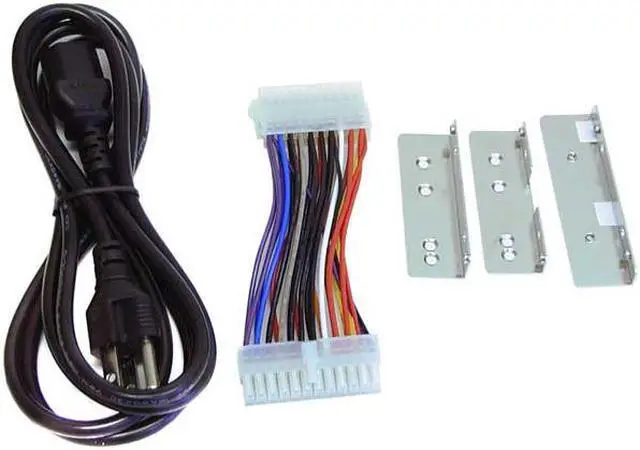

| Package Contents | TC-300R8 24 to 20 Power Cable Power Cord |
|---|
| First Listed on Newegg | April 29, 2003 |
|---|
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 1 year
- Limited Warranty period (labor): 1 year
- Read full details
Return Policies
- Return for refund until: January 31, 2027
- Return for replacement until: January 31, 2027
- This item is covered by Newegg.com's Extended Holiday Return Policy.
- Read full return policy for details.
We want to ensure your holiday shopping this year is hassle-free. That’s why we’re automatically extending our return policies on almost every product! For purchases placed between November 1st, 2026 and December 31, 2026 you will have until January 31, 2027 to return your product.
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-626-303-8885 x 110
- Support Email: tech@istarusa.com
- Support Website
- View other products from iStarUSA Inc.
LOADING...
LOADING...
The iStarUSA TC-300R8 is a redundant server power supply with two 300 W modules and a 20+4-pin main connector, suited to server builders whose systems require this power-supply format and configuration.
Recommended For
- Operators maintaining a compatible rackmount server who need a like-for-like replacement for the TC-300R8’s PS/2-size redundant supply.
- Small-server administrators who prioritize continued operation through a power-supply-module failure and need hot-swappable, redundant power in a supported chassis.
- Administrators restoring a legacy server whose motherboard and workload fit the supply’s listed ATX/EPS connections and 300 W output.
Real-World Use Scenarios
- Running a server that needs to stay available: if one power module fails, the redundant design is intended to let the other continue supplying power, reducing the chance of an unexpected shutdown.
- Powering a file server or disk-array system: the redundant supply is aimed at systems where keeping storage available matters more than relying on a single power module.
- Replacing a failed module during maintenance: in a compatible redundant-power setup, the manual describes identifying the faulty module and replacing it, helping avoid a full system shutdown during the repair.
- Refreshing an older server build: its PS/2-size design and 20+4-pin main connector may suit a compatible legacy server chassis, so users should check the chassis fit and connector requirements before choosing it.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | Server systems requiring redundant power, with two 300 W power supplies and a 20+4-pin main connector |
| Power Configuration | Redundant design with 2 × 300 W maximum power |
| Connectors And Output Rails | 20+4-pin main connector; +3.3 V at 24 A, +5 V at 30 A, −5 V at 0.5 A, +12 V at 15 A, −12 V at 0.8 A, and +5 VSB at 2 A |
| Input Power | 115/230 V AC input, 50/60 Hz; 8 A at 115 V or 4 A at 230 V, with automatic AC input selection |
| Cooling And Protection | Three fans; over-power, over-voltage, and short-circuit protection |
| Efficiency And Reliability | Efficiency ≥65%; MTBF greater than 100,000 hours; minimum hold-up time of 16 ms |
| Form Factor And Dimensions | PS/2-size design; 6.9 × 5.9 × 3.4 in; 9 lb |
| Included Accessories | TC-300R8, 24-to-20 power cable, and power cord |
| Model Identifiers | iStarUSA TC-300R8 |
