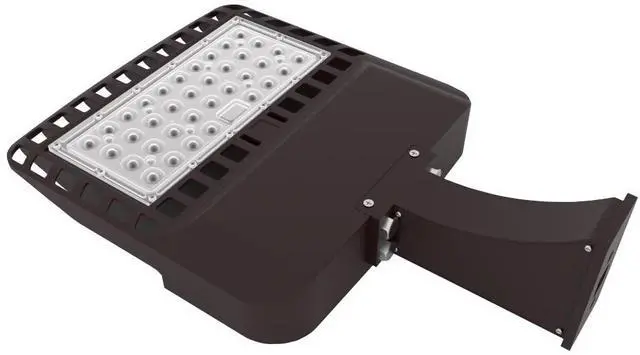

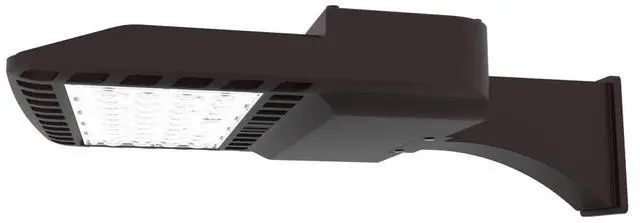

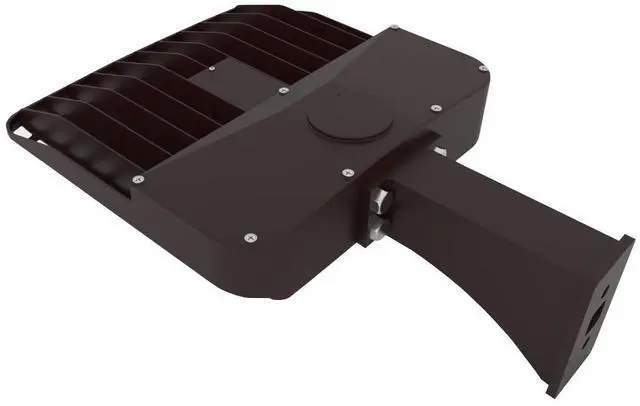

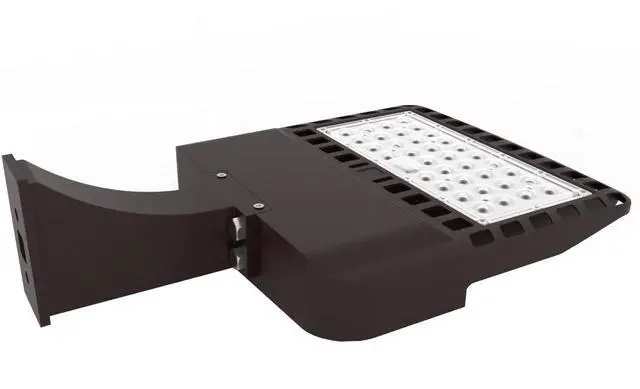

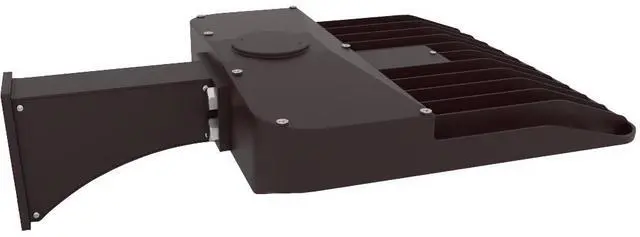

J&H LED Parking Lot Area Light, Fixed Arm, 100/80/60W & 2700/4000/5000K Selectable, Type III, 0-10V Dimming
- Select 100W, 80W or 60W to configure power for the parking-area lighting plan.
- Choose 2700K, 4000K or 5000K for warmer, neutral or cooler light appearance.
- Type III distribution directs light outward for parking-lot perimeters and drive lanes; fixed-arm design suits area-light layouts.
- 0-10V dimming enables light-level adjustment with a compatible control; accepts 120-277V input.
- Aluminum housing, polycarbonate lens, IP65 rating and 6KV surge protection; ETL listed with a 5-year warranty.
Any questions? Ask CelesteSM will help you find out quickly.
Parking lot lighting with configuration options
The J&H LED parking lot area light combines a fixed-arm design with selectable wattage and color temperature. It gives contractors and property managers a way to choose the fixture's power setting and light appearance for an outdoor area-lighting project. Choose 100W, 80W or 60W, and select 2700K, 4000K or 5000K. These choices can help a buyer keep a consistent fixture design across parking areas that call for different lighting configurations.

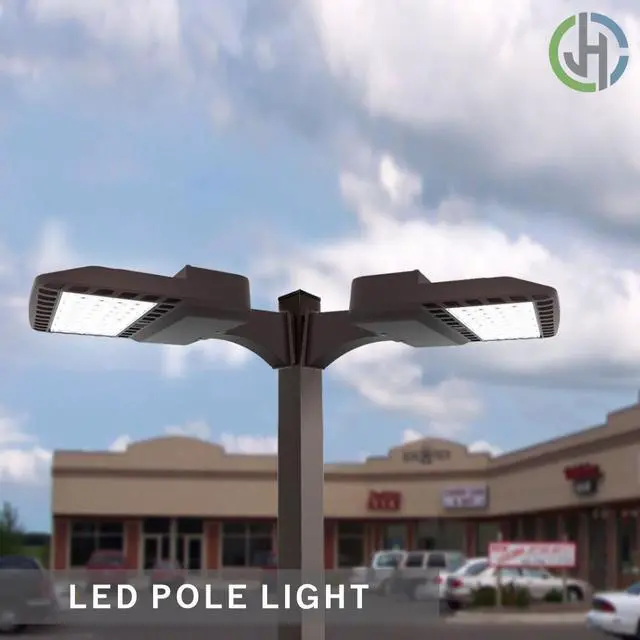

Light for parking areas
The fixture is rated at 12,000 lumens and uses a Type III distribution. Type III directs light in a forward-reaching pattern, making it relevant to parking-lot perimeters and drive lanes where light needs to extend out from the fixture's position. Its fixed arm provides an arm-style configuration for the area light. A 70+ CRI rating describes its color-rendering performance, while the selectable color temperatures let you choose a warmer 2700K appearance, a neutral 4000K appearance or a cooler 5000K appearance.
Controls and construction
A 120-277V input range supports common commercial electrical systems. For projects using a compatible 0-10V control, the dimming capability allows light levels to be adjusted rather than operated only at full output. Wattage selection offers another way to configure the fixture: choose the power setting that fits the intended lighting plan, then use dimming for ongoing light-level control.
The aluminum housing and polycarbonate lens bring together a metal body and a durable lens material. An IP65 rating describes the fixture's protection against dust ingress and water jets. Built-in 6KV surge protection adds a measure of protection against electrical surges. The area light is ETL listed and backed by a 5-year warranty.
Frequently asked questions
Can I change both wattage and light color? Yes. The fixture has three selectable wattage settings - 100W, 80W and 60W - and three selectable color-temperature settings - 2700K, 4000K and 5000K. This lets you configure both power and light appearance within the same J&H LED area-light model.
What does 0-10V dimming do? With a compatible 0-10V control, it lets you adjust the fixture's light level during use. That gives a parking-area lighting design a control option beyond choosing the wattage setting.
