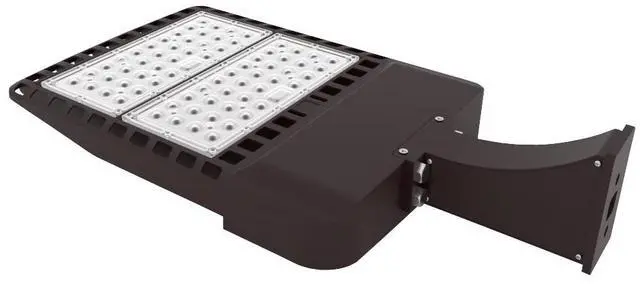

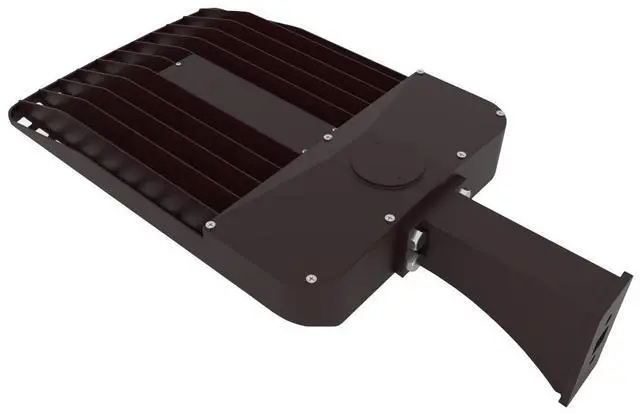

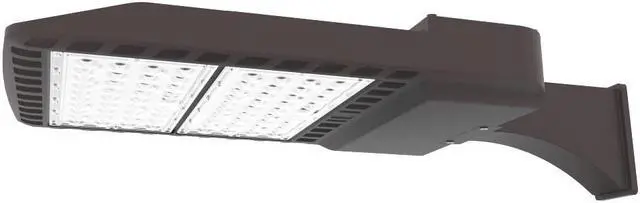

J&H LED Parking Lot Area Light, Fixed Arm, Selectable 200/160/120W & 2700/4000/5000K, Type III, 0-10V Dimming

Outdoor Area Lighting

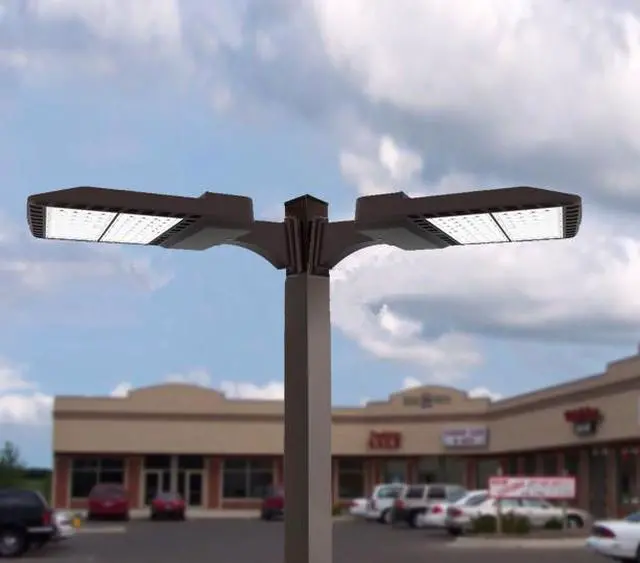

The J&H LED parking lot area light brings configurable illumination to parking areas, driveways, and other outdoor spaces. Its fixed-arm design and Type III distribution make it well suited to layouts that call for light directed outward across an area, including perimeter and roadway-style applications. Rated output is 24,000 lumens. For a contractor planning several outdoor locations, the selectable controls allow the same fixture design to serve different lighting plans while maintaining a consistent appearance across the project.

Light Appearance and Power

Three wattage choices - 200W, 160W, and 120W - let you set the fixture's power level to suit the installation. Color temperature is selectable too: 2700K creates a warmer appearance, 4000K provides a more neutral-looking light, and 5000K produces a cooler look. That range can help establish the intended character of an entrance drive, parking area, or circulation route without changing fixture styles. A CRI of 70+ supports recognizable colors and surfaces in everyday outdoor use.

Controls and Construction

With 0-10V dimming, the light level can be adjusted through a compatible control system. This gives facilities teams a way to tailor illumination for a space's operating needs beyond the selected wattage setting. The fixture accepts 120-277V input for commercial electrical applications. Its aluminum housing and polycarbonate lens provide an enclosure for outdoor area-lighting use, while the IP65 rating identifies its protection against dust and water ingress. Built-in 6KV surge protection adds another consideration for electrical conditions at the installation site.

The fixture is ETL listed and carries a 5-year warranty. Together with its fixed-arm format, Type III distribution, selectable settings, and dimming capability, those features make it a practical option for buyers coordinating parking lot and exterior circulation lighting across a commercial property.

FAQ

Can the color appearance be changed without choosing a different fixture?
Yes. Select from 2700K, 4000K, and 5000K to give the area a warmer, more neutral, or cooler-looking light. The power level can also be set to 200W, 160W, or 120W.

How can the light level be controlled?
The fixture supports 0-10V dimming for adjustment through a compatible control system. It also offers three selectable wattage levels, giving the installer a separate way to configure the fixture for the lighting plan.
