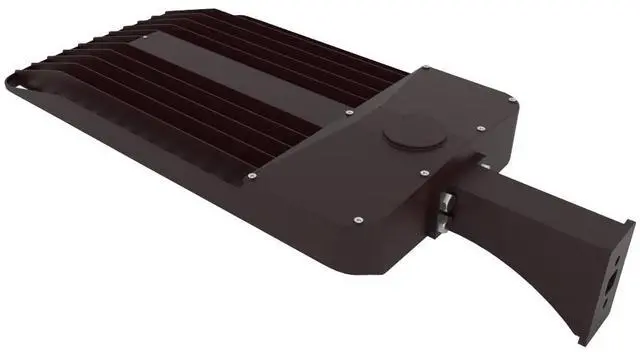

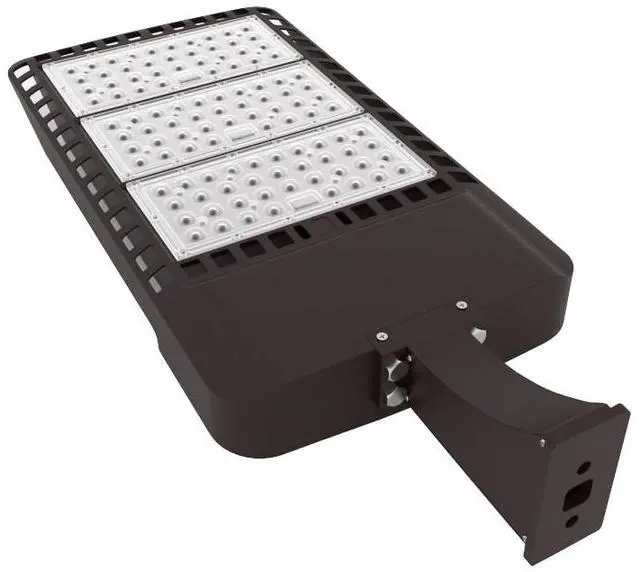

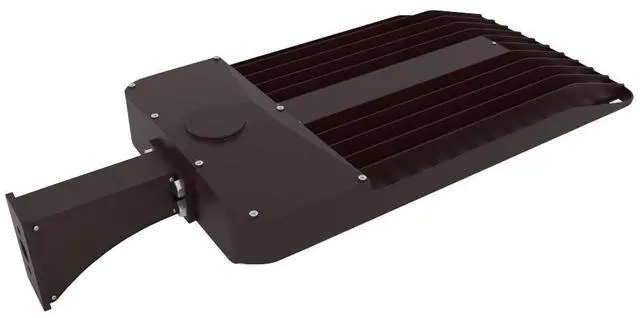

J&H LED Parking Lot Area Light, Fixed Arm, 190/250/320W & 2700/4000/5000K Selectable, Type III, 0-10V Dimming

Parking lot lighting with room to configure

The J&H LED parking lot area light combines a fixed-arm design with selectable wattage and color temperature. It is an option for contractors planning outdoor area lighting for parking lots and other open spaces where the desired light level and appearance may vary by project. Choose among 190W, 250W and 320W settings, then select 2700K, 4000K or 5000K light. Those choices let a buyer use the same fixture design across areas that call for different wattage settings or different color tones.

Light where the project needs it

Rated light output is 38,400 lumens. Type III distribution directs light in a pattern suited to area-lighting layouts along the edges of parking areas and similar spaces. For a buyer planning a row of fixtures, the distribution is a meaningful detail: it describes how the fixture directs light, not just how much light it produces. The 70+ CRI rating provides a reference for color rendering, while the three CCT settings offer a choice between warmer 2700K light, neutral 4000K light and cooler 5000K light. That flexibility can help maintain a preferred visual character across a site or accommodate different project lighting preferences.

Controls and construction

The fixture accepts 120-277V input and supports 0-10V dimming. With a compatible 0-10V control arrangement, dimming provides a way to adjust brightness beyond the selected wattage setting as lighting needs change. Selectable wattage establishes one of three power settings; dimming then gives the lighting operator a separate means of controlling output. An aluminum housing and glass lens form the fixture construction. The area light also carries an IP65 rating and 6KV surge protection, details relevant to planning an outdoor lighting installation. It is ETL listed and backed by a 5-year warranty.

FAQ

Can the light color and wattage be chosen separately? Yes. The fixture has three selectable wattage settings - 190W, 250W and 320W - and three selectable color-temperature settings - 2700K, 4000K and 5000K. This gives a contractor flexibility to set both the power level and the appearance of the light for the intended location.

How is brightness controlled after a wattage setting is chosen? The fixture supports 0-10V dimming, so a compatible control arrangement can adjust brightness during use. This is distinct from choosing one of the fixture's three wattage settings during configuration.
