J-Tech Digital 4K 60Hz 4x4 Seamless HDMI Matrix 2x2 Video Wall Controller Multiviewer, 180° Rotate, Audio Extractor, 2x2, 1x4, 1x2, 1x3, 1x4, 2x1, 3x1 Video Wall Modes (JTECH-4KMVM)
- 4K@60Hz 4x4 Seamless HDMI Matrix Easily manage 4 HDMI inputs and independently route them to 4 different HDMI outputs without any switching delays or picture loss during transitions. Supports up to 4K@60Hz resolution.

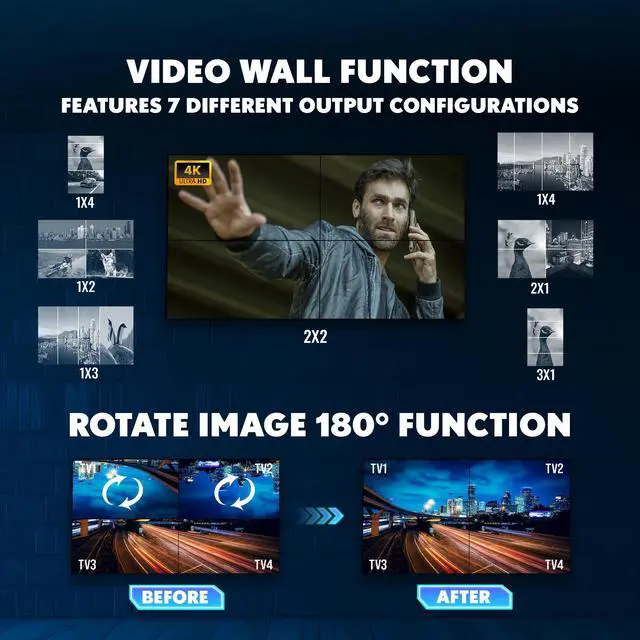

- Video Wall Controller with 7 Display Modes Create dynamic displays with up to 7 video wall modes; 2x2, 1x4, 1x2, 1x3, 1x4, 2x1, 3x1. Features a 180° rotation function per display while using the 2x2 video wall mode to help adjust border orientation.
- Multiviewer with 12 Different Modes 4x1 multiview function allows you to watch up to 4 different sources on one display. This multiviewer supports 12 different viewing modes, which include 4 equal screens, dual up/down, dual side by side, PIP, 1 big 3 small mode, and more!
- Audio Extraction and Audio Switching Extract audio from any HDMI input source and send it to an external sound system via 3.5mm and/or SPDIF outputs. Features audio routing allowing you to mix and match audio and video signals from HDMI source
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product Description
Introduction:
J-Tech Digital is focused on producing high-quality products that distribute audio & video content in both residential and commercial applications. Over the last ten years, J-Tech Digital has been a key component in making affordable and high caliber audio-video devices available to consumers across multiple industries including the medical, commercial and residential fields. Join the J-Tech Digital family and see why over 10 million satisfied customers trust J-Tech Digital to provide industry-leading technology and excellent customer support.
Description:
The JTECH-4KMVM combines an HDMI matrix, video wall controller, and multiviewer in one compact device. Supporting up to 4K@60Hz resolution, it allows seamless routing of 4 HDMI inputs to 4 outputs with no delays or picture loss. As a video wall controller, it offers 7 display modes, including 2x2 and 1x4 layouts, with a 180° rotation function per display for 2x2 setups. The multiviewer feature provides 12 viewing modes, including Picture-in-Picture (PIP) and 1 big, 3 small layouts, for displaying up to 4 sources on a single screen. Advanced audio features include sound extraction and routing via 3.5 mm or SPDIF outputs for precise mixing. Its sleek, space-saving design ensures easy installation and a clean, professional setup.
Audio Extraction and Audio Switching Extract audio from any HDMI input source and send it to an external sound system via 3.5 mm and/or SPDIF outputs. Features audio routing allowing you to mix and match audio and video signals from HDMI sources and 3.5 mm audio in ports.
Small and Compact Design This compact HDMI matrix, video wall controller, and multiviewer combines seamless functionality with a sleek, space-saving design, allowing for easy installation and discreet placement to maintain a clean and organized setup.
Free Lifetime Technical Support All J-Tech Digital products include a one-year manufacturer replacement warranty and free lifetime technical support from our customer support team located in Stafford, TX. Support is available from 9AM 6PM CST, Mon Fri. Contact information available on our seller page.
Features:
Features seamless HDMI matrix, video wall controller, and multiviewer function in one small and compact design
o Supports 4x4 HDMI matrix function with seamless switching
o Video wall controller with 7 display modes; 2x2, 1x4, 1x2, 1x3, 1x4, 2x1, 3x1. Supports 180° degree rotation per display in the 2x2 mode
o 4x1 multiviewer function with 12 different modes, including 4 equal screens, dual up/down, dual side by side, PIP, 1 big 3 small mode, and more
Supports audio extraction via 3.5 mm and/or SPDIF outputs from the HDMI inputs. Also features audio routing, allowing you to mix and match audio and video signals from HDMI sources and 3.5 mm audio in ports

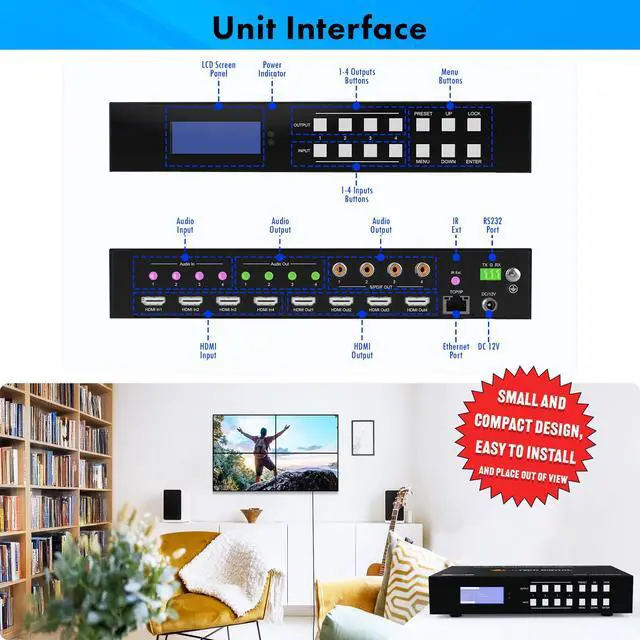

Control via remote control, front panel buttons, RS232, or webGUI

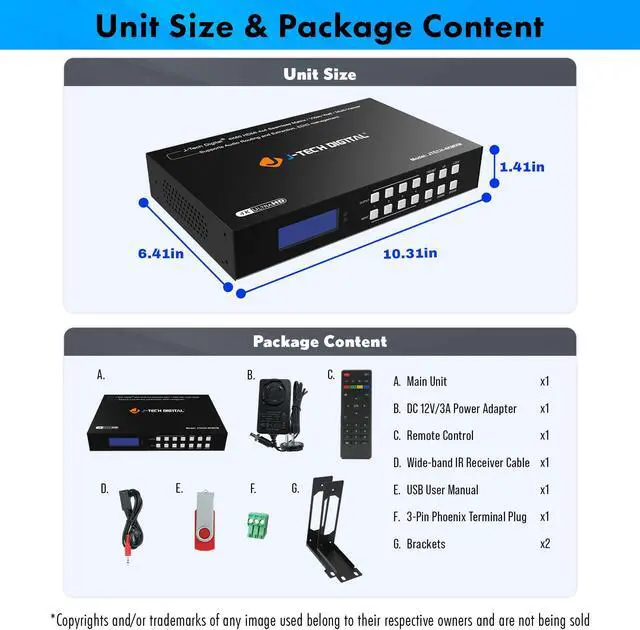

Package Contents:
(1) x JTECH-4KMVM
(1) x DC 12V/3A Power Adapter
(1) x Remote Control
(1) x IR Receiver Cable
(1) x USB User Manual
(1) x 3-Pin Phoenix Terminal Plug
(2) x Mounting Bracket
Introduction:
J-Tech Digital is focused on producing high-quality products that distribute audio & video content in both residential and commercial applications. Over the last ten years, J-Tech Digital has been a key component in making affordable and high caliber audio-video devices available to consumers across multiple industries including the medical, commercial and residential fields. Join the J-Tech Digital family and see why over 10 million satisfied customers trust J-Tech Digital to provide industry-leading technology and excellent customer support.
Description:
The JTECH-4KMVM combines an HDMI matrix, video wall controller, and multiviewer in one compact device. Supporting up to 4K@60Hz resolution, it allows seamless routing of 4 HDMI inputs to 4 outputs with no delays or picture loss. As a video wall controller, it offers 7 display modes, including 2x2 and 1x4 layouts, with a 180° rotation function per display for 2x2 setups. The multiviewer feature provides 12 viewing modes, including Picture-in-Picture (PIP) and 1 big, 3 small layouts, for displaying up to 4 sources on a single screen. Advanced audio features include sound extraction and routing via 3.5 mm or SPDIF outputs for precise mixing. Its sleek, space-saving design ensures easy installation and a clean, professional setup.
Audio Extraction and Audio Switching Extract audio from any HDMI input source and send it to an external sound system via 3.5 mm and/or SPDIF outputs. Features audio routing allowing you to mix and match audio and video signals from HDMI sources and 3.5 mm audio in ports.
Small and Compact Design This compact HDMI matrix, video wall controller, and multiviewer combines seamless functionality with a sleek, space-saving design, allowing for easy installation and discreet placement to maintain a clean and organized setup.
Free Lifetime Technical Support All J-Tech Digital products include a one-year manufacturer replacement warranty and free lifetime technical support from our customer support team located in Stafford, TX. Support is available from 9AM 6PM CST, Mon Fri. Contact information available on our seller page.
Features:
Features seamless HDMI matrix, video wall controller, and multiviewer function in one small and compact design
o Supports 4x4 HDMI matrix function with seamless switching
o Video wall controller with 7 display modes; 2x2, 1x4, 1x2, 1x3, 1x4, 2x1, 3x1. Supports 180° degree rotation per display in the 2x2 mode
o 4x1 multiviewer function with 12 different modes, including 4 equal screens, dual up/down, dual side by side, PIP, 1 big 3 small mode, and more
Supports audio extraction via 3.5 mm and/or SPDIF outputs from the HDMI inputs. Also features audio routing, allowing you to mix and match audio and video signals from HDMI sources and 3.5 mm audio in ports
Control via remote control, front panel buttons, RS232, or webGUI
Package Contents:
(1) x JTECH-4KMVM
(1) x DC 12V/3A Power Adapter
(1) x Remote Control
(1) x IR Receiver Cable
(1) x USB User Manual
(1) x 3-Pin Phoenix Terminal Plug
(2) x Mounting Bracket
