    One HDMI in Two SDI Output, Micro HDMI to SDI Converter Converter (with Power Supply Adapter, Audio Embedder Support HDMI 1.3, 3G/HD-SDI Auto Format Detection Extender for SDI Monitor HDTV

    Limited time offer, ends 07/13 By Jansicotek

    • HDMI to SDI: It allows HDMI signals to beshown on two SDI display while ensuring high bit rates of 2.970 Gbit/s to give you high resolution signal without any loss.
    • Input & Output Resolutions: HDMI Input: 480i/ 480P, 567i/ 576P, 720P@30/ 50/ 60Hz, 1080i@50/ 60Hz, 1080p@50/ 60Hz, 1080P@24/ 25/ 30Hz. SDI Output: 720P@50/ 60Hz, 1080i@50/ 60Hz, 1080P@24/ 25/ 30/ 50/ 60Hz.
    • 1 HDMI In 2 SDI Out: Support One HDMI input signal and Two SDI Outputs signal. Convert HD 1080P HDMI signal to broadcast quality SDI display.
    • Long Distance Transmission: Supports SDI output distance up to 100 meters (3G-SDI), 200 meters(HD-SDI), or 300 meters(SD-SDI)
    • Package List: 1x HDMI to SDI Converter, 1x USB Power Cable(adapter not included), 1x User Manual. If you have any question, please feel free to contact us.
    +
    +
    Overview
    Specs
    Reviews
    HDMI to
    SDI: It allows HDMI signals to beshown on two SDI display while ensuring high bit rates of 2.970 Gbit/s to give you high resolution signal without any loss.
    Input&OutputResolutions: HDMI
    Input: 480i/ 480P, 567i/ 576P, 720P@30/ 50/ 60Hz, 1080i@50/ 60Hz, 1080p@50/ 60Hz, 1080P@24/ 25/ 30Hz.
    SDIOutput: 720P@50/ 60Hz, 1080i@50/ 60Hz, 1080P@24/ 25/ 30/ 50/ 60Hz. 1 HDMI In 2
    SDIOut: Support One HDMI input signal and Two SDI Outputs signal. Convert HD 1080P HDMI signal to broadcast quality SDI display.
    LongDistanceTransmission: Supports SDI output distance up to 100 meters (3G-SDI), 200 meters(HD-SDI), or 300 meters(SD-SDI)
    PackageList: 1x HDMI to SDI Converter, 1x USB Power Cable (adapter not included), 1x User Manual. If you have any question, please feel free to contact us.






    image for this item
    1080P HDMI-compatible to 2CH SDI converter HDMI-compatible to Sdi 3G-SDI/HD-SDI broadcast HD Adapter for Camera Televisions

    Introduction

    Shows HDMI source on two SDI display.

    This HDMI to SDI converter is very small, compact and very convenient to carry.

    It can be used in multi-clock scenarios, such as radio and television program editing, video teaching and training, high-definition video information release, high-definition video long-distance transmission, video conferencing, multimedia advertising and video security monitoring and other fields.

    The HDMI to SDI converter can transmit uncompressed audio and video signals. HDMI can be used for set-top boxes, DVD players, personal computers, TV games, integrated amplifiers, digital audio and televisions. HDMI can transmit audio and video signals at the same time. Because audio and video signals use the same cable, the installation of the system is greatly simplified.

    image for this item

    Feature:

    *Supports 1ch HDMI input, 2ch SDI output.

    *Embedded audio and image synchronization output.

    *Support HDMI 1.3, HDCP1.3.

    *Built-in ESD protection circuitry can effectively prevent electrostatic damage.

    *SDI interface operates at bitrates of 2.970 Gbit/s, 1.485 Gbit/s.

    *Supports HDMI input timings: 480i, 576i, 720p, 1080i, 1080p.

    *Converts HDMI signal to SDI:

    720p/1080i to HD-SDI (SMPTE 292M, at bitrates of 1.485 Gbit/s)

    1080p to 3G-SDI (SMPTE 424M/425M-AB, at bitrates of 2.970 Gbit/s)

    *Supports SDI output distance up to 100 meters (3G-SDI), 200 meters (HD-SDI), or 300 meters (SD-SDI)

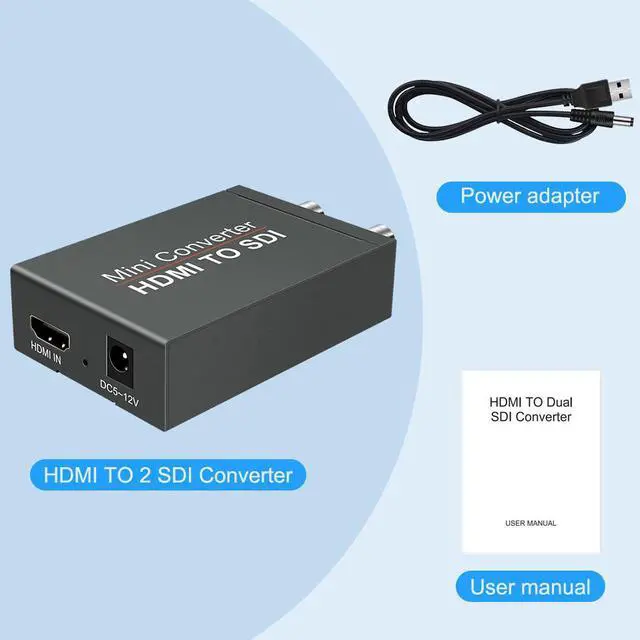

    Package and accessories:

    *1PCS  HDMI TO 2 SDI Converter.

    *1PCS Operation Manual

    *1PCS dc cable

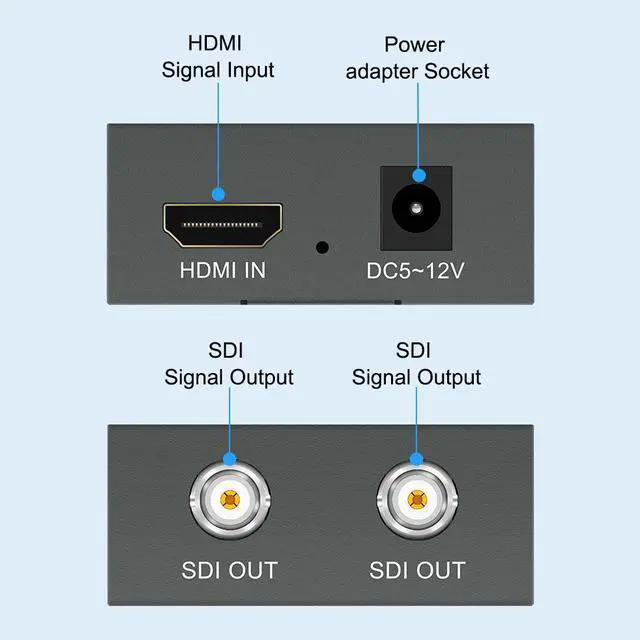

    Operation controls and Functions:

    SDI-OUT: This slot is where you connect the SDI display with coaxial cable .

    DC IN: Plug the 5V-12V DC power supply into the unit.

    HDMI IN: This slot is where you connect the HDMI source with HDMI cable.
