Features:
- Long range transmission:up to 60m/196ft over a single CAT6 cable;
- Video resolution:Up to1920x1080P@60Hz,3D;
- Audio sampling rate:32kHz, 44.1kHz and 48kHz ;
- Audio Format:DTS-HD/Dolby-true HD/LPCM7.1/DTS/DSD ;
- Uncompressed mode:ZERO Delay,No loss
- Male to male:one TX to one RX applicataion;
- Copy EDID:It is extended display identification data , Press the button 3seconds, the TX will copy the signal data, like auto-match.They remember the EDID information if you plug them off the power adapter and them turn them back again;
- Video standard:compliance with HDMI 1.4 and HDCP 1.4 standard;
- Built-in automatic adjustment system:make the image smooth, clear and stable;
- Built-in ESD protection system: make transmission much safer. Perfect hdmi extension adapter for large homes, factories, construction sites, data control centers etc;plug and play
- Simple to install, plug and play
HDMI Extender over Cat6 cable
- 60meter over AWG23 UTP Cat6 cable;
- 50 meter over AWG23 UTP Cat5E cable;
- 3D ,1080P@60Hz HDR,POC,Copy EDID
Long distance
- Connect single Cat6 cables up to 196ft instead of HDMI cable between TX and RX Extender
- Our equipment supports 3D effects to give you an immersive experience
- Note: Requires both your input and output to support 3D functionality
Perfect Resolution
Support resolution:3D/1080p/1080i/720p/576p/576i/480p/480i/Up to 1920x1080@60Hz

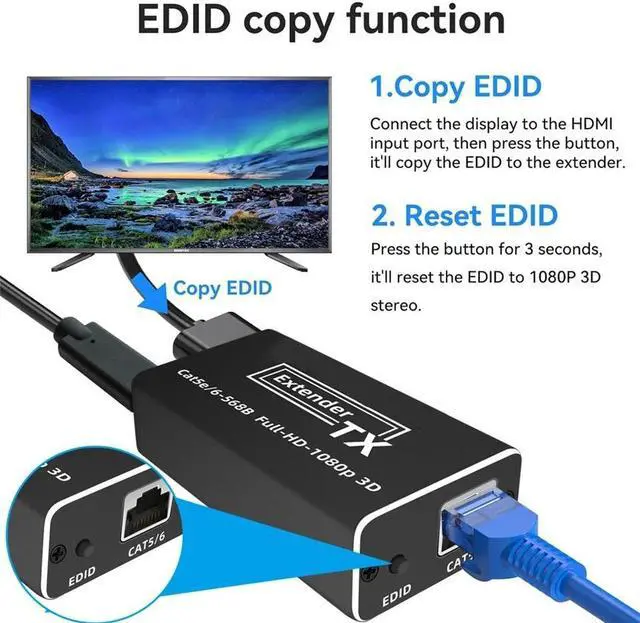

EDID copy
- Connect the sender and the monitor with an HDMI cable.
- Connect the power and press the EDID button,indicator will flash 3 times.
- After 3 seconds, the operation is completed and will be permanently remembered, unless the sender is EDID again set operation.

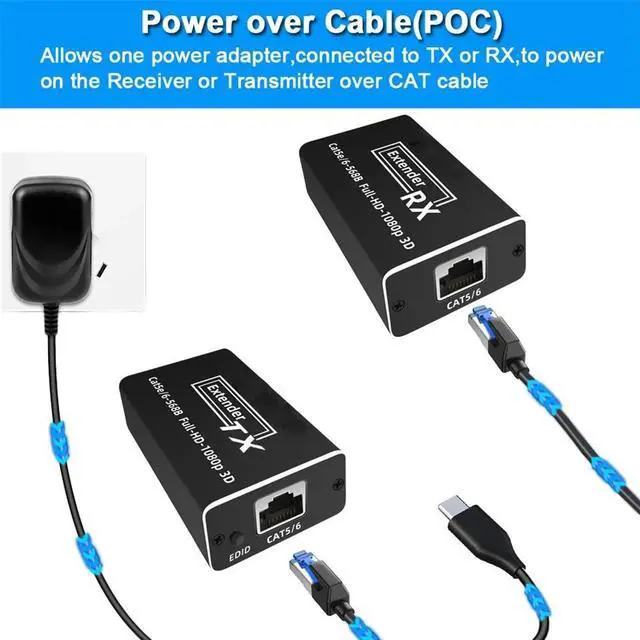

Power Over Cable
Only need one power adapter to power on HDMI transmitter,the transmitter and receiver could work well.
