Features:
Long range transmission:up to 60m/196ft over a single CAT6 cable
Video resolution:Up to 480P,720P,1920x1080@60Hz,3D
Audio sampling rate:32kHz, 44.1kHz and 48kHz
Audio Format:DTS-HD/Dolby-true HD/LPCM7.1/DTS/DSD
HDMI loop out function:The transmitter with one HDMI local loop out;
Uncompressed mode:NO Delay,No loss
Male to male:one TX to one RX applicataion
Copy EDID:It is extended display identification data , Press the button 3seconds, the TX will copy the signal data, like auto-match.They remember the EDID information if you plug them off the power adapter and them turn them back again
Infrared control:Bi-directional 20~60 KHz IR romote control;
Video standard:compliance with HDMI 1.3 and HDCP 1.2 standard;
Built-in automatic adjustment system:make the image smooth, clear and stable
Built-in ESD protection system: make transmission much safer. Perfect hdmi extension adapter for large homes, factories, construction sites, data control centers etc
Simple to install, plug and play

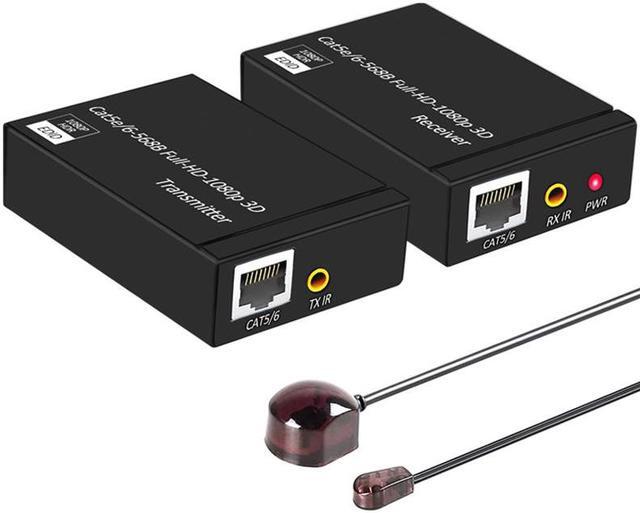

HDMI RJ45 Extender 60m No Delay No Loss 1080P HDMI Extender Over UTP CAT5e CAT6 RJ45 HDMI Extender With IR & Loop Out
Description:

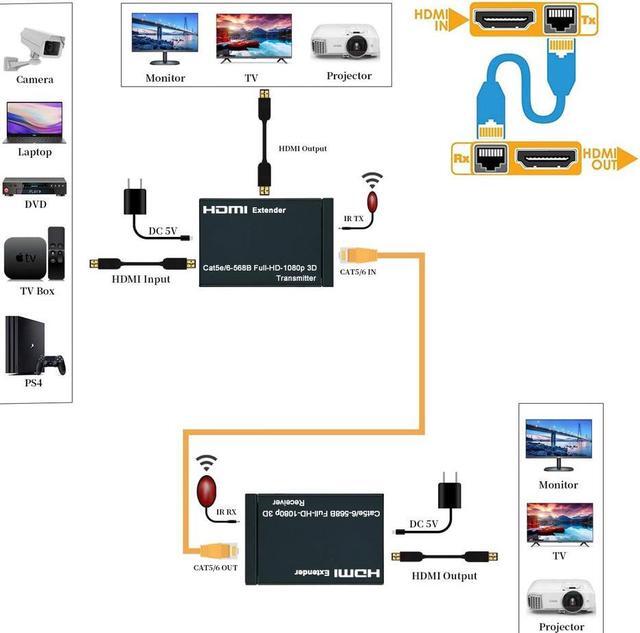

HDMI extender provides extension of HDMI signals long distances over a single CAT5e/6 cable, it supports high resolution up to 1920x1080@60Hz, HDMI loop out and IR signal transmission. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
Specifications:
Video
Standards: HDMI 1.3; HDCP 1.2
Maximum pixel clock: 165MHz
Maximum data rate: 6.75Gbps
Resolution: 1920X1080P@60Hz
Connector: HDMI-A
IR
Interface: 3.5mm seat
Signal direction: directional
Signal type: Digital
IR frequency: 20~60 KHz ;
UTP
Interface: RJ45/IEEE-568B
Transmission distance: CAT5e:50m/164ft,CAT6:60m/196ft
Other
Power supply: The power adapter: DC 5V/1A
Power dissipation: MAX 3W
Dimension: 94*71*25mm
