4K@60Hz HDMI Matrix Switch 2 in 2 Out
Features:

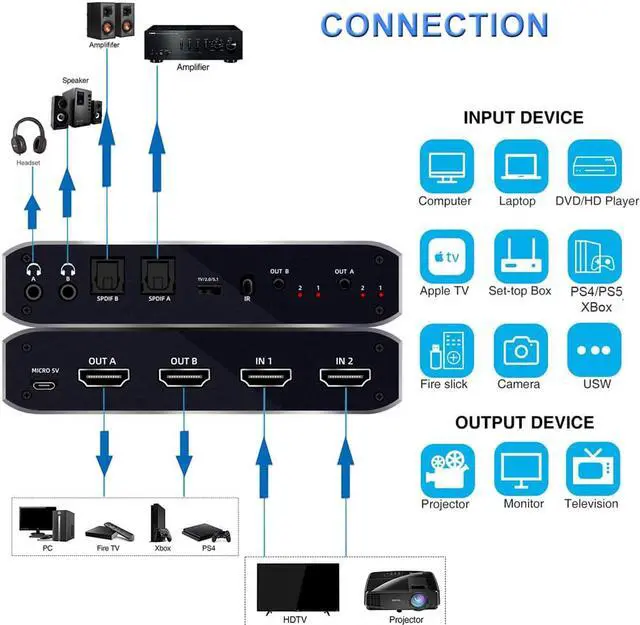

UPGRADE 2 IN 2 OUT MATRIX - 4K HDMI matrix can connect up to 2 HD signal sources to 2 HDMI Display terminals with optical fiber or stereo headphone output, it allows easy switching or splitting of two HDMI devices into two HD displays with buttons or remote controls.The power supply port is designed to be on the same side as all HDMI ports for easy connection. Solutions suitable for home theater, office, school, meeting room, shopping center, hotel or museum.
RESOLUTION AUTO SCALING - Support for automatically reducing 4K resolution to 1080P (other resolution downgrades are not supported). The 4K signal can be displayed simultaneously on a monitor that supports 4K and a monitor that supports up to 1080P.Please connect a lower resolution display device to the OUT A port.
PLUG AND PLAY - 2x2 HDMI matrix is easy to set up and operate,no need for too many settings.
What you get - 1x 4K HDMI Matrix, 1x 5V Power Adaptor, 1x Remote Control and 1x User Manual.

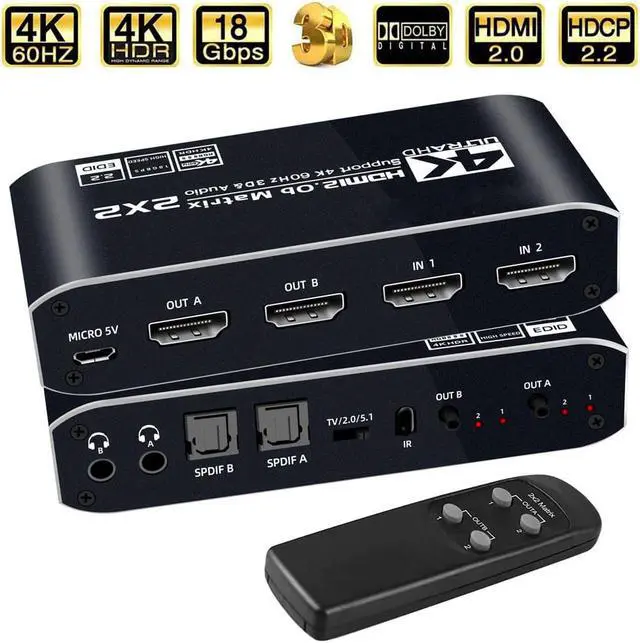

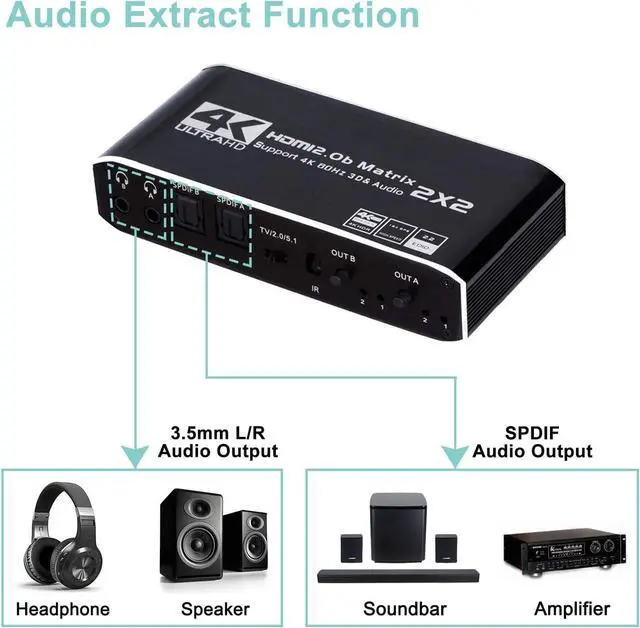

HIGH RESOLUTION - Support multiple video resolutions, including 4K@60Hz which can make the picture more coherent, smooth and natural, reducing the problem of picture delay. Support HDMI2.0b, HDCP2.2, HDR, RGB:8:8:8, 3D, video format 8/10/12/24/32 bit deep color etc. Support 18Gbps x3 data rate transmission,LPCM/DTS 5.1/Dobly-AC3.Any input high-definition signal source can be extracted separately or at the same time through SPDIF or 3.5mm headphone audio output port.
WIDELY COMPATIBLE - This 2x2 HDMI matrix suitable for various HDMI source devices like Blu-ray/ DVD/ HD player, cable/satellite box, Amazon Fire TV, Apple TV, PS3/4, PS5, Xbox, PC/laptop, HD camera, HD DVR etc.It has built-in automatic equalization and amplification functions to ensure the best transmission without losing video/audio quality.Use the standard AWG26 HDMI Cable to support a maximum input distance of 10 meters and a maximum output distance of 15 meters.
Specifications:
HDMI version: HDMI 2.0b
HDMI resolution: up to 4K@60Hz, 3D.RGB 8:8:8
Support video format: 8/10/12/24/32 bit
Support audio format: LPCM/DTS 5.1/Dobly-AC3
Maximum bandwidth: 18.5Gbps
Max bandwidth: 600MHz
Input cable : Less than 10m AWG26 HDMI2.0b standard cable
Output cable : Less than 15m AWG26 HDMI2.0b standard cable
Two Ways Easy Switch
Manual switch: Press the switch button on the box and select the exact input you want.
IR Remote Switch: Aim your remote switch at the IR receiver box and easily select the HDMI input that you want for your HDTV
Visual enjoyment
Supports 3D effects, 4K@60Hz HD resolution, which makes the picture more coherent, smooth and natural, reduces picture delay problems, and brings the best viewing experience.
Multifunctional use

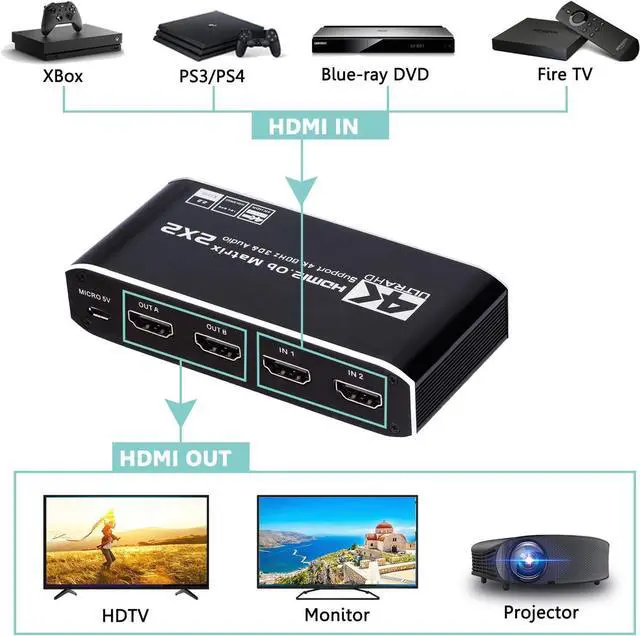

It is a matrix and also a splitter. You can connect multiple input devices and multiple output devices to use as a 2x2 matrix. It is also possible to connect one input device and two output devices to use as a splitter.
