2023 4K 60Hz KVM Switch HDMI 2 Port 2 Monitor HDMI KVM Switch USB 3.0 PC Computer KVM Switch Keyboard Mouse Switcher Box for Laptop,PS4,Xbox

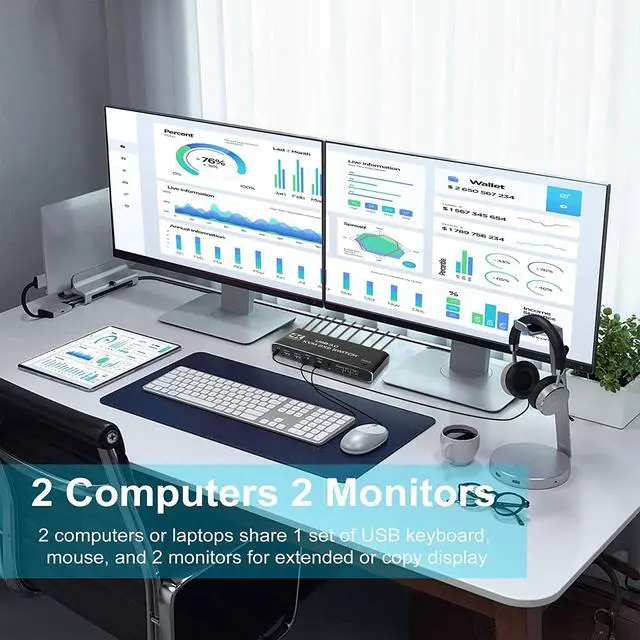

[HDMI KVM USB switch dual monitor]: Jansicotek KVM Switch allows control 2 computer with one set of controls (keyboard and mouse) and two display screen. Realizes 2 in and 2 out free selection synchronous switching. You can centrally control and manage hosts laptop or game console without having to move from one workstation to another.
[UHD 4K Visual Enjoyment]: The kvm switch supports HDMI 2.0 and standard HDCP 2.2. Support max resolution up to 4K@60Hz,1080@144Hz, also support 1080P@120Hz or lower resolution, makes image display more exquisite and realistic.
[Dual HDMI KVM Switch with USB 3.0 Port]: Supports Connecting your USB 3.0 port device such as Scanner/USB driver/3D Printer/Monitor Camera
[2.0CH Audio Extractor]: KVM Switch comes with a 3.5mm Audio Jack port with a DAC chip inside, which can be inserted into a 3-segment 3.5mm earpiece device.
[A Higher Level of Keyboard and Mouse Compatibility]:Support keyboard and mouse pass-through mode (Semi-DDM USB).You can use more keyboard and mouse functions that are not supported by ordinary KVM. Supports wired, wireless, mechanical, multimedia, and gaming K&M.near zero latency keyboard and mouse switching.

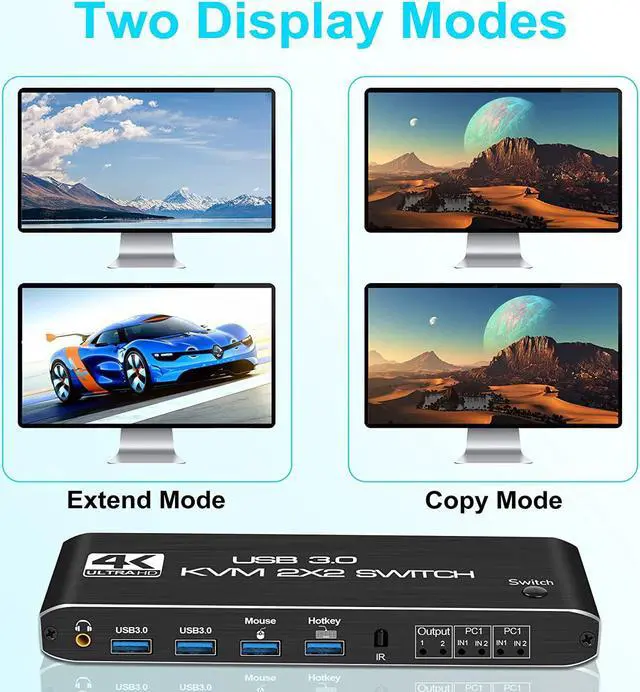

[Wide Compatibility]: Jansicotek HDMI kvm switch kit support mirror mode,extend mode and crisscross mode,it also can compatible with all laptops with HDMI port and other devices. It has adaptive EDID, adapt to Windows, macOS, Linux, UNIX and other operating systems.

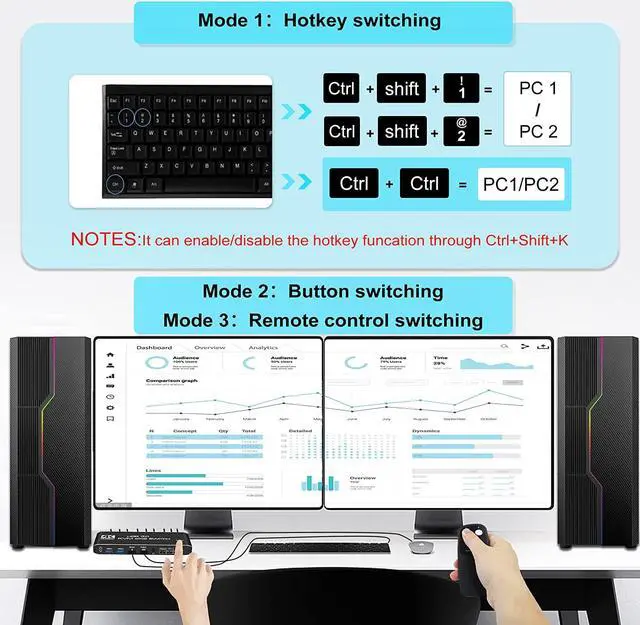

[Plug and Play]: Button switch signal source device, freely switch between 2 computers by pressing a button. Simple to install, plug and play, no driver is needed. Powered by USB C.
[What You Get]: 1 x HDMI KVM USB Switch, 2 x USB-C data cable, 1x USB power cable,1 x User Manual.
Notice:
- *For dual monitor setups, it requires every computer have 2 graphics cards or above display functions and must support extended display.
- *For the USB interface, please use the USB cable provided with the product to connect, other USB-C type connections are not supported.
- *The KVM switch cannot work with the docking station.

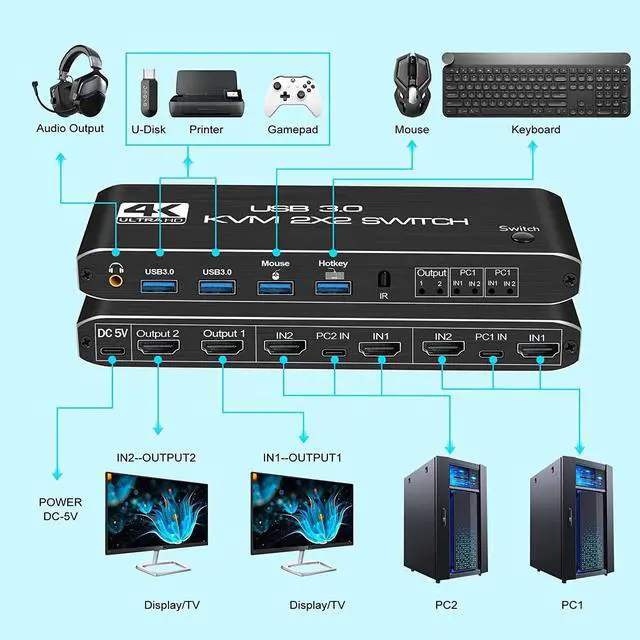

Installation Step:
1. Turn off all devices and unplug all the cables;
2. Plug HDMI cables and USB cables into KVM switch and your computers/laptops ( HDMI cables not included):
Please check the PC1-"HDMI IN 1 & IN 2", and PC2-"HDMI IN 1 & IN 2"USB IN1 & IN2 is corresponding, HDMI OUTPU 1, HDMI OUTPU 2 is corresponding, NOT support mixed insertion.
PC1 HDMI IN 1 + PC1 HDMI IN 2 +PC1 USB IN=PC1
PC2 HDMI IN 1 + PC2 HDMI IN 2 +PC2 USB IN=PC1
3. Plug mouse and keyboard into KVM switch;
4. Plug HDMI cables and USB cables into KVM switch and monitors;
5. Plug power supply into KVM switch;
6. Boot computers/laptops.
IMPORTANT NOTE:
Your device must have 2 HDMI interfaces and 1 USB interface.
- This kvm can not work with dock. If your device has one HDMI interfaces, you can use a converter to add HDMI interfaces.
- If your computer has just one HDMI interface, you can use a converter cable, such as VGA/DVI/DP to HDMI converter or conversion cable.
- If you have any question, please do contact us.Thank you.
