This HDMI switch 4x1 with audio extractor allows up to 4 HDMI input source and 1 HDMI Output display, helps reduce the clutter of HDMI wires being fed into your HDTV. Simultaneously, Via optical/3.5mm port add external speakers, amplifiers, soundbars to your film/game system with ease. The HDMI Output can be selected by a local button or an IR wireless remote control. (Tips: SPDIF and AUX audio support output separeately to soundbar, amplifier, headphone and other audio receiver without connecting TV / Monitor)
Features:
- Compatible with HD 1.4/V2.0 and HDCP2.2 with HDTV
- Each port supports HDMI-compatible protocol input.
- Support high-resolution input 480P, 720P, 1080P, 1080p 3D, 2160P
- Supports compressed audio; DTS numbers, Dolby numbers (DTS-HD and DOLBY)
- Support video outgoing broadband 3Gbps / 300MHZ
- Support HD signal with remote control
- Support automatically identify the source, automatically jump to the next source port when the source is disconnected.
- Support MHL function, with LED indication function
- Support HDMI 2.0 version
- Support 3D video format
- Support the highest resolution of 1080p@60Hz, 2160p@30hz
- Support for the highest speed 2.25G when the TMDS clock 225Mhz
- Support 24/30 / 36bit dark
- Support the use of standard 26 cable, input transmission distance of 15 meters, the output transmission distance of 25 meters
- Support single signal display, multi-channel HD output signal source such as DVD player, A / V receiver, set-top box
- Optical fiber, coaxial output support 5.1-channel
Features:
UHD High Resolution and Quality:HD-MI Switch 4 in 1 out support 4K@60Hz, HDR 10, HDCP2.2, RGB 4:4:4, and Dobly-True HD/DTS-HD audio. Deep Color to 36bit, Max Bandwidth of 18Gbps/600MHZ.

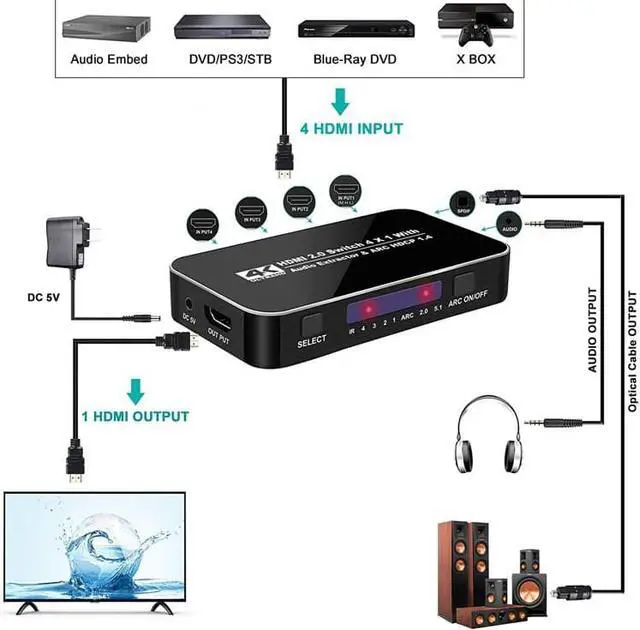

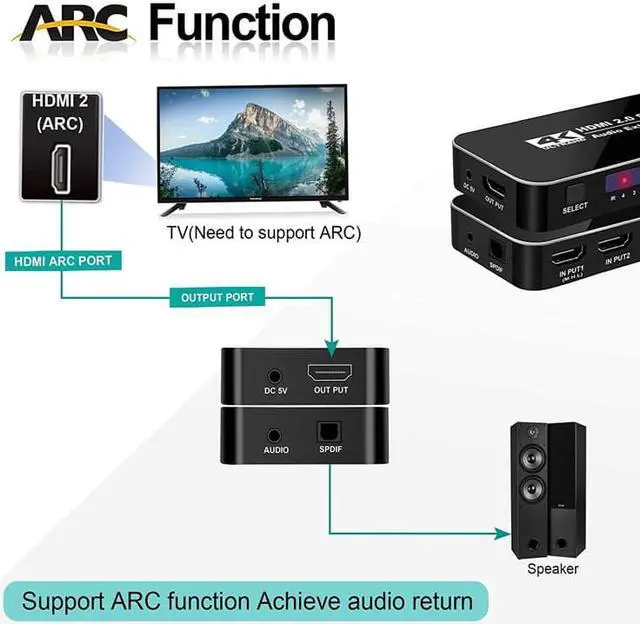

HD-MI ARC Adapter:HD-MI2.0 Switcher 4x1 Supports ARC (Audio Return Channel), extracts the Audio from TV to Soundbar or Amplifier. Connect your TV HD-MI (ARC) Port to this switch HD-MI Output Port with HD-MI Cable, then using optical Toslink, Coaxial, 3.5mm or L/R cable connect to the Soundbar, Speaker, Home theater, A/V receivers etc.No distortion of audio or video. All audio port support ARC.
Three Audio mode switch settings: (Pass, 2CH and 5.1CH Mode) 3.5mm audio output supports incoming 2CH PCM LPCM stereo audio; Optical SPDIF output supports incoming 2CH PCM, 5.1CH Dobly Digital, 5.1 digital surround, Dobly TrueHD, DTS-HD. (Note: This HD-MI audio switch can't decode only pass through the audio formats.)-

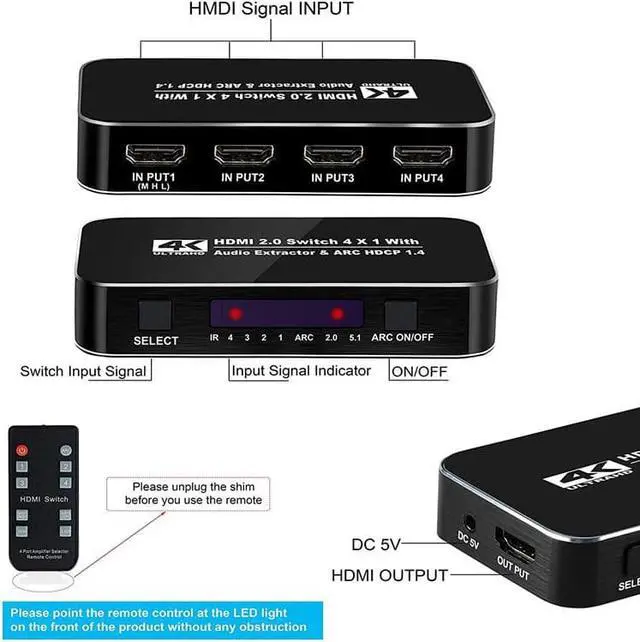

HD-MI Auto-Switch with Remote Control - It will automatically skip to the next port with a viable signal input; It will automatically skip to the most recently inserted HD-MI signal source. Manual switching can be done by wireless IR remote. (tips: It will not allows auto-switch to the apple TV due to current protection principle)
