    HDMI Switch 4x1 with Audio Extractor, 4K@60Hz Ultra HD HDMI Switcher with Optical TOSLINK SPDIF, 3.5mm Audio,Coaxial Support ARC Function, 3D, 1080P @120Hz, 4Kx2k @60Hz HDTV with Remote, OZQ7

    Be the first to review this product...
    • This HDMI Switch support 4 HDMI Inputs to 1 HDMI Output, can be applied for connection, signal amplification, multi-picture conversion and for selection between computer/PC, STB/Smart Box, DVD Player, Blue-ray Player, PS3/PS4 Pro and LCD TV,LCD,Projector, as well as an Audio/Video receiver.
    • -Input: HDMI x 4
    • -Output: HDMI x 1, Toslink x 1, 3.5mm L/R x 1, Coaxial x 1
    • -Coaxial and Toslink port output support ARC. (Note:3.5mm audio port not support ARC function)
    • -support 480i/480p/576i/576p/720p@50/60Hz/1080p@50/60Hz/4Kx2K@20/30Hz with 24bit RGB/ YcbCR 4:4:4/YcbCR 4:2:2 (4k@60hzYUV4:2:0)
    • -Max bandwidth per channel: 300MHz. Max baud rate per display: 10.2Gbps
    • -Supports Dolby True-HD, DTS-HD, AC3, DTS, DSD. This HDMI Switch will output the Dolby True-HD, DTS-HD, AC3, DTS, DSD audio format, But can't decode these audio formats.
    • -HDMI input and output hdmi 2.0 cables can reach up to 3 meters if your Resoltion up to 4K@60HZ;can reach up to 5 meters if your Resoltion up to 4K@30HZ
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now
    This HDMI Switch support 4 HDMI Inputs to 1 HDMI Output, can be applied for connection, signal amplification, multi-picture conversion and for selection between computer/PC, STB/Smart Box, DVD Player, Blue-ray Player, PS3/PS4 Pro and LCD TV, LCD, Projector, as well as an Audio/Video receiver.
    -Input: HDMI x 4
    -Output: HDMI x 1, Toslink x 1, 3.5 mm L/R x 1, Coaxial x 1
    -Coaxial and Toslink port output support
    ARC. (Note: 3.5 mm audio port not support ARC function)
    -support 480i/480p/576i/576p/720p@50/60Hz/1080p@50/60Hz/4Kx2K@20/30Hz with 24bit RGB/ YcbCR 4:4: 4/YcbCR 4:2: 2 (4k@60hzYUV 4:2: 0)
    -Max bandwidth per channel: 300MHz.
    Max baud rate per display: 10.2G bps
    -Supports Dolby True-HD, DTS-HD, AC3, DTS, DSD. This HDMI Switch will output the Dolby True-HD, DTS-HD, AC3, DTS, DSD audio format, But can't decode these audio formats.
    -HDMI input and output hdmi 2.0 cables can reach up to 3 meters if your Resoltion up to 4K@60HZ; can reach up to 5 meters if your Resoltion up to 4K@30HZ
    image for this item
    • Input: HDMI x 4

    • Output: HDMI x 1, Toslink x 1, 3.5mm L/R x 1, Coaxial x 1

    • Coaxial and Toslink port output support ARC. (Note:3.5mm audio port not support ARC function)

    • support 480i/480p/576i/576p/720p@50/60Hz/1080p@50/60Hz/4Kx2K@20/30Hz with 24bit RGB/ YcbCR 4:4:4/YcbCR 4:2:2 (4k@60hzYUV4:2:0)

    • Max bandwidth per channel: 300MHz. Max baud rate per display: 10.2Gbps

    • Supports Dolby True-HD, DTS-HD, AC3, DTS, DSD. This HDMI Switch will output the Dolby True-HD, DTS-HD, AC3, DTS, DSD audio format, But can't decode these audio formats.

    • Support 24/30/36 bit deep color per channel (Kindly Note: It is can not compatible with DVI.we do not recommended that you use HDMI to DVI cable connect to your projector /monitor)

    • HDMI input and output hdmi 2.0 cables can reach up to 3 meters if your Resoltion up to 4K@60HZ;can reach up to 5 meters if your Resoltion up to 4K@30HZ
    image for this item

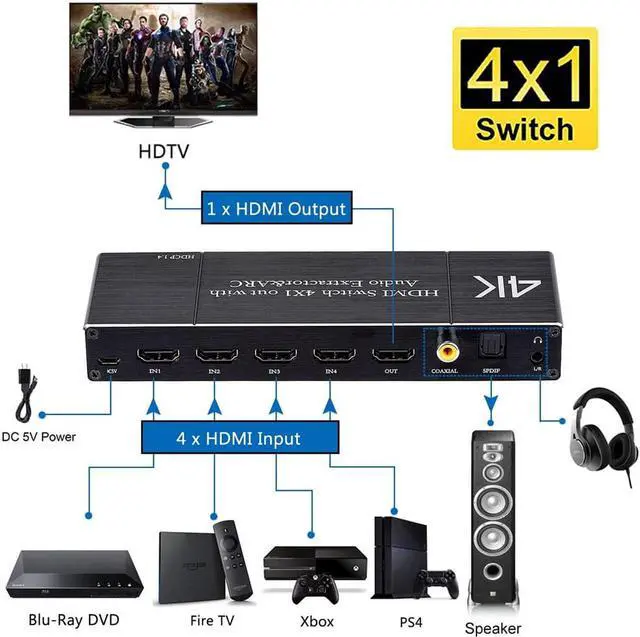

    4x1 HDMI-compatible 4x1 HDMI-compatible Switch: There is a high performance 4 HDMI-compatible input and 1 output switcher. Toslink output support ARC audio return control function, 3.5mm Jack output support audio extract function. Creating a superb picture quality and seamless sound. NO lag, NO flash or drop in resolution.



    image for this item
    image for this item
    image for this item
    image for this item
    image for this item
    image for this item
    image for this item
    image for this item
