This HDMI Switch 4x1 with audio extractor can connect up to 4 HD Source to 1 HDMI Display, and extracts audio from the 4K HDMI signal to HDMI 7.1 atmos audio, optical fiber or stereo audio and send it to an external speaker or soundbar.
- Support Four audio modes: 7.1CH/5.1CH/2.0CH/pass-through (PASS)
- HDMI Input and Out: Dobly Digital/Atmos 7.1CH, Dobly TrueHD, DTS:X, DTS Digital, DTS-HD Master, Dobly /DTS 7.1/5.1, PCM 7.1/5.1/2.0
- HDMI Audio Out: Dobly Digital/Atmos 7.1CH, Dobly TrueHD, DTS:X, DTS Digital, DTS-HD Master, Dobly /DTS 7.1/5.1, PCM 7.1/5.1/2.0
- Optical Audio Out: Dobly Digital / DTS Digitial 5.1CH, PCM 2.0
- 3.5mm Audio Out: PCM 2.0

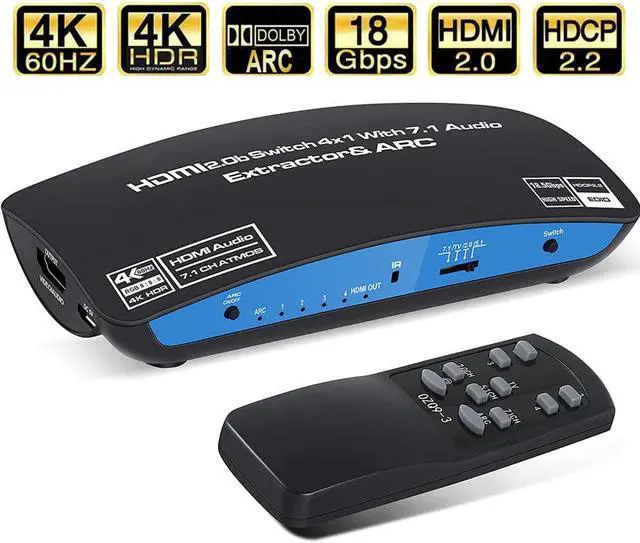

4K 60Hz HDMI Audio Extractor Switch: This HDMI2.0b switch 4 in 1 out adopts the latest chips, the max resolution can up to 4K@60Hz, also support HDR 10, HDCP2.2, RGB 8:8:8, 36bit deep color and Dobly 7.1 Atoms/ Plus D audio. 18.5Gbps/600MHz max bandwidth of this HDMI switch with audio out can compatible for PS3/ PS4/ PS5, Xbox 360/ One, HDTV, Blu-Ray Player. Clearer and more delicate display effects, giving you a visual feast and an excellent gaming experience.

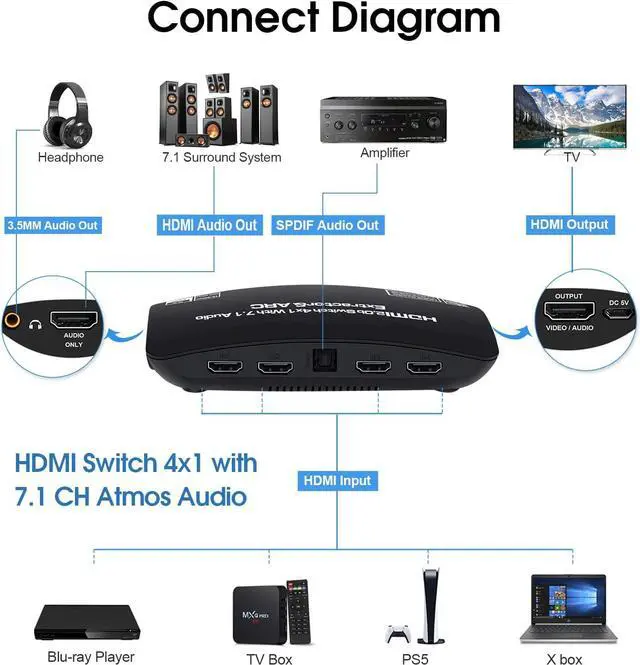

4 In 1 Out HDMI Audio Switch: HDMI switch 4-port can distribute up to four HDMI input sources to one HD display, solving your multiple HDMI device issue. At the same time, you can easily add external speakers, amplifiers, sound bars, and receivers to your movie/game system through HDMI (7.1 CH audio)/optical/3.5mm ports. NOTE: Not 1 in 4 out HDMI splitter!!!
Four Audio Mode Switch Settings: This 4 port HDMI2.0b audio switch box have TV, 2.0 CH ,5.1CH, 7.1CH four kinds of audio mode options. 3.5mm AUDIO OUTPUT supports 2CH, PCM, LPCM stereo audio; OPTICAL SPDIF OUTPUT supports 2CH, PCM, 5.1CH Dobly Digital, 5.1 Digital Surround, Dobly TrueHD, DTS-HD; HDMI 7.1 AUDIO OUTPUT supports 2CH, PCM, LPCM 5.1CH, Dobly 7.1CH ATMOS. (NOTE: This HDMI audio switch can't decode only pass through the audio formats.)

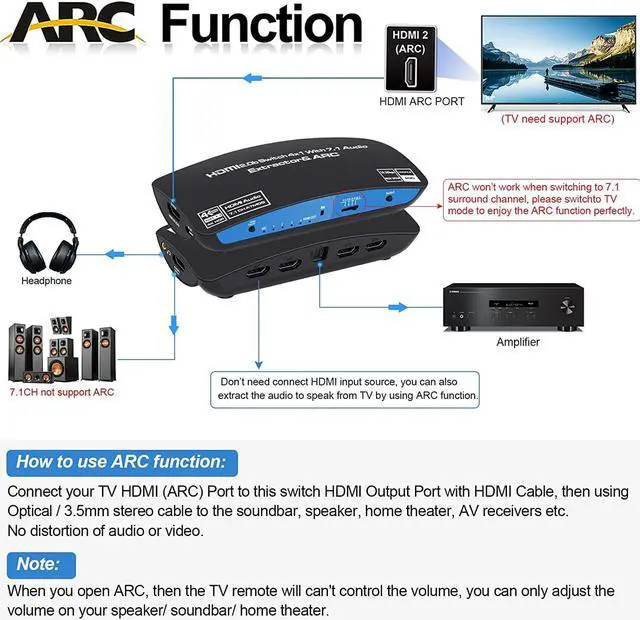

HDMI 7.1CH Atmos/Optical 5.1CH/3.5mm 2.0CH Audio Extractor: Extracts audio from the HDMI signal to HDMI 7.1 Atmos audio, 3.5mm stereo audio and Optical Toslink SPDIF audio. Support audio format: D-o-l-b-y Digital/ Atmos 7.1CH, Dobly TrueHD, DTS:X, DTS Digital, DTS-HD Master, Dobly/ DTS 7.1/ 5.1, PCM 7.1/ 5.1/ 2.0. This HDMI optical audio extractor also support HDMI ARC (Audio Return Channel), so our 4x1 HDMI audio extractor can bring you high-quality sound quality, as if you are on the scene.

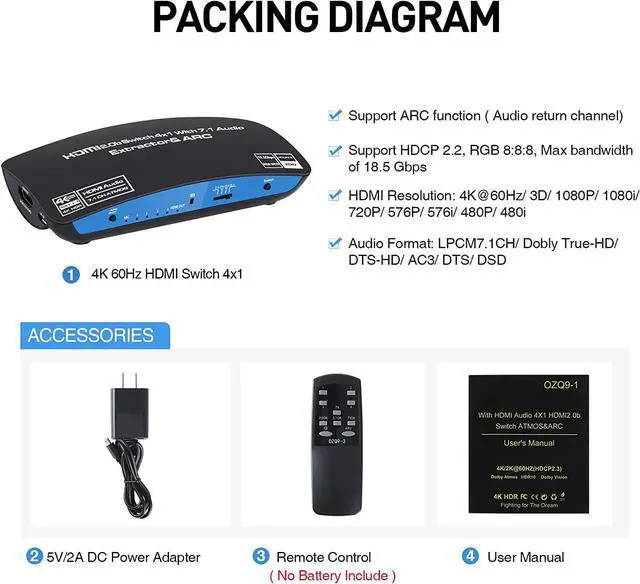

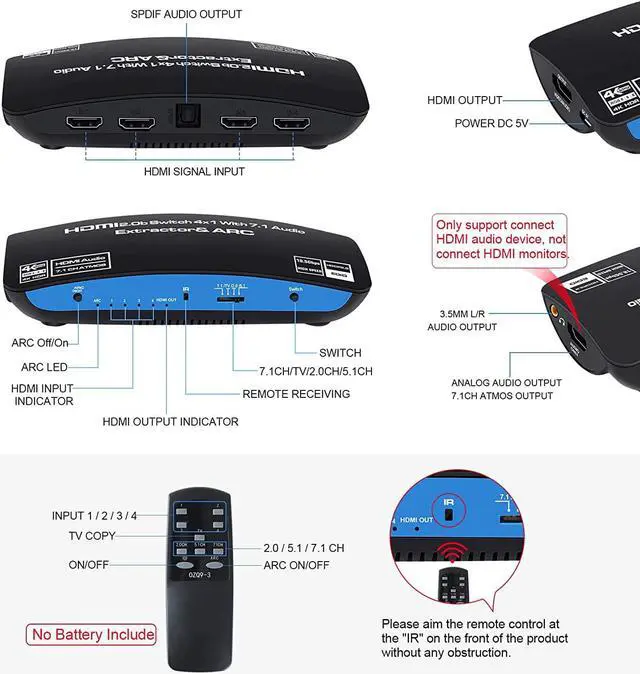

Switch Easily by Remote Control: You can easily switch HDMI source what you want by this IR remote control or by the switch button of our HDMI sound extractor selector switch. (This HDMI switch with audio extractor NOT support AUTO-SWITCH.) PACKAGE: 1*4K 60Hz HDMI Switch 4x1; 1*5V/2A DC Power Adapter; 1* Remote Control; 1*User Manual.
