HDMI Audio Extractor Splitter 4K@60Hz HDMI Audio Adapter Converter HDMI to HDMI Audio Inserter Extractor with 3.5mm Audio Output

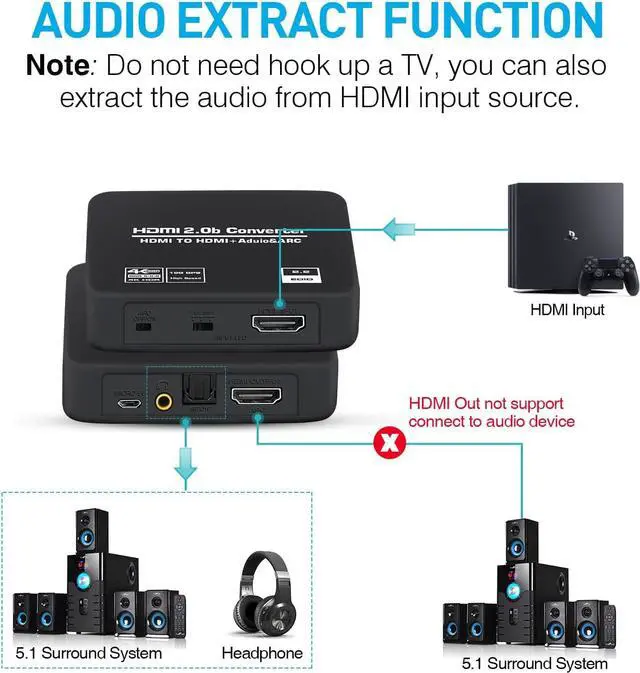

HDMI Audio Splitter Extractor: HDMI to HDMI audio extractor converter can extract audio from a digital HDMI signal to your Amplifier, Soundbar, Speaker, etc. It allows output separately to an audio receiver without powering on your HDTV/ Monitor, and Optical Toslinks SPDIF and 3.5mm audio support ARC function.
4K 60Hz High Resolution: HDMI sound inserter extractor supports resolution up to 4Kx2K@60Hz, HDR 10, HDCP 2.2, RGB 8:8:8, max bandwidth of 18 Gbps. HDMI optical splitter adapter provides impressive high-quality UHD video, bringing you an amazing visual experience.
Three Audio Output Modes: HDMI-ARC audio extractor converter has TV, 2.0CH, 5.1CH three kinds of audio mode options. 3.5mm audio output supports 2CH PCM LPCM stereo audio; Optical SPDIF output supports 2CH PCM, 5.1CH Dobly Digital, Dobly True HD, DTS-HD, DTS. It also Support HDMI ARC (Audio Return Channel).
4K@60Hz HDMI 2.0b Audio Extractor Splitter Converter
Allows the HD Source connected to single HD Display and adds extra one 3.5mm and SPDIF audio out port.

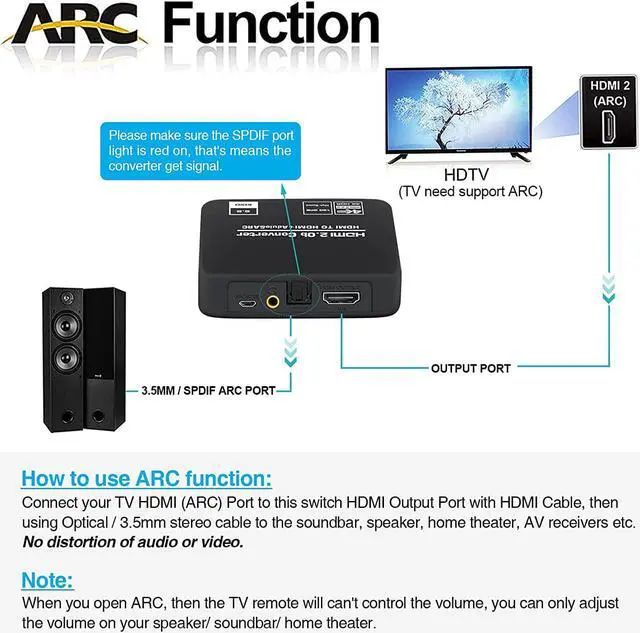

Optical Toslinks SPDIF and 3.5mm audio support ARC function.
-- This 4k HDMI audio extractor splitter supports ARC Function, you can listen to music at any time. --
-- NOTE --
- When you use ARC Function, please make sure the SPDIF port light is red on, which means the converter get signal. ( TV need support ARC )
- When you open the ARC, then the TV remote will can NOT control the volume, you can only adjust the volume on your speaker/ sounder/ home theater.

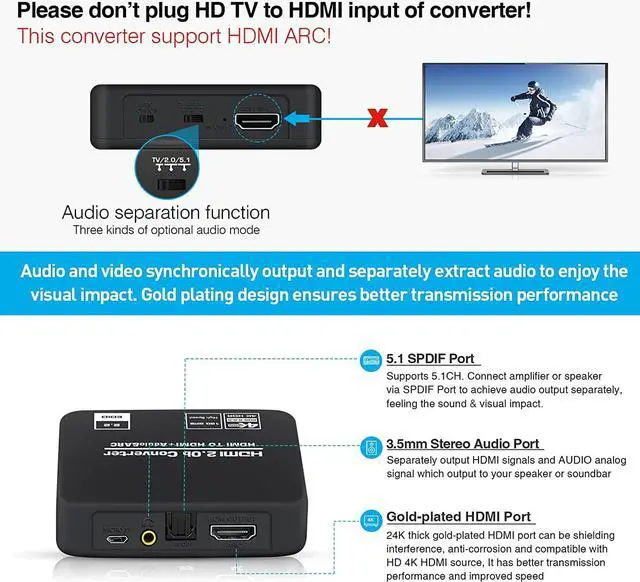

- Please do not plug HD TV to HDMI input of converter otherwise you could not get any signal.
4K@60HZ HDMI Audio Extractor4K@60Hz HDMI Audio Extractor, Have fun with your friends

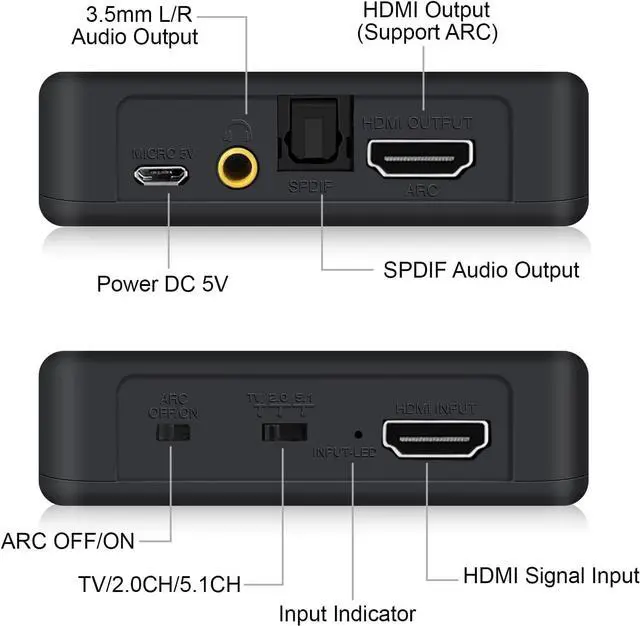

- One HDMI input converted to one HDMI + Audio (SPDIF+3.5mm) Output to achieve the synchronization of audio signal separation.
- Support ARC Function (Audio Return Channel)
- Support 4Kx2K@60Hz, Support 3D HDCP 2.2
- Support blue-ray 24/ 50/ 60fs/ hd-dvd/ XVYCC
- Digital audio format, as dts-hd/ dobly-true hd/ LPCM7.1/ DTS/ dobly-ac-3 (Not Support Always Dobly Digital plus)
Three Audio EDID Settings Could be Switched Freely
- TV Mode: The audio output format depends on the HDMI input signal.
- 2.0 Channel Stereo Mode: The HDMI/ SPDIF and L/R output stereo audio.
- 5.1 Channel Mode: The HDMI/ SPDIF output 5.1 channel audio. 3.5mm audio no output.
Wide Compatible
HDMI input: Blu-ray/ DVD/ HD player, cable/ satellite box, Amazon Fire TV, PS3/ PS4/ PS5, Xbox, PC/laptop etc.
HDMI Output: Full HD TV, Monitor, Projector. Audio output: Speaker, Amplifier, Soundbar or other sound systems.
Wide Application
This audio video to hdmi converter is easy to setup and operate.
Just connect your HDMI devices and the power adapter, then you can share the most luxurious video and audio with your friends or family.
Tiny Light Handy
This HDMI sound inserter extractor supports resolution up to 4Kx2K@60Hz, Max bandwidth of 18 Gbps.
HDMI audio splitter adapter provides impressive high-quality UHD video, bringing you an amazing visual experience.
