PCIe USB 3.2/3.1 Gen 2 Card 8 Ports
Description
- High-speed 20Gbps PCIE X4 to USB 3.2 Expansion Card for Desktop - 4 Type-A and 4 Type-C USB Ports

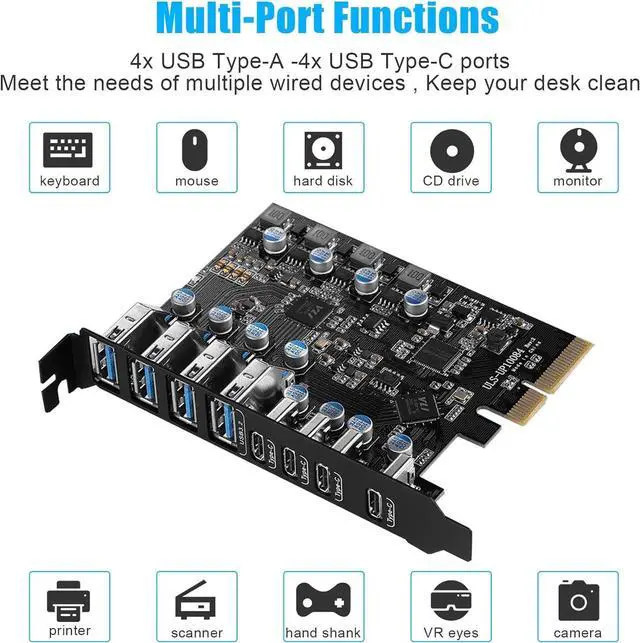

- Extension Interface: USB3.1 Type-C x 4 & USB3.1 Type-A x 4

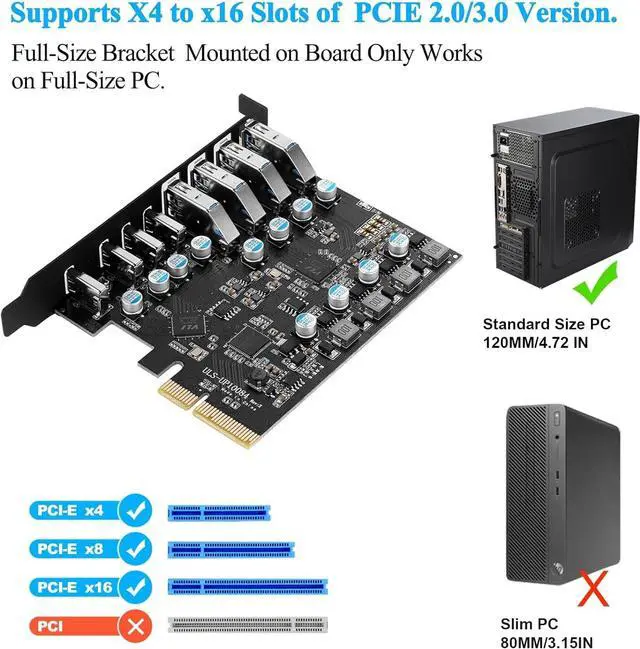

Product Chip: ASM3142 - Applicable interfaces: PCI-E 4X, PCI-E 8X, PCI-E 16X
About this item:

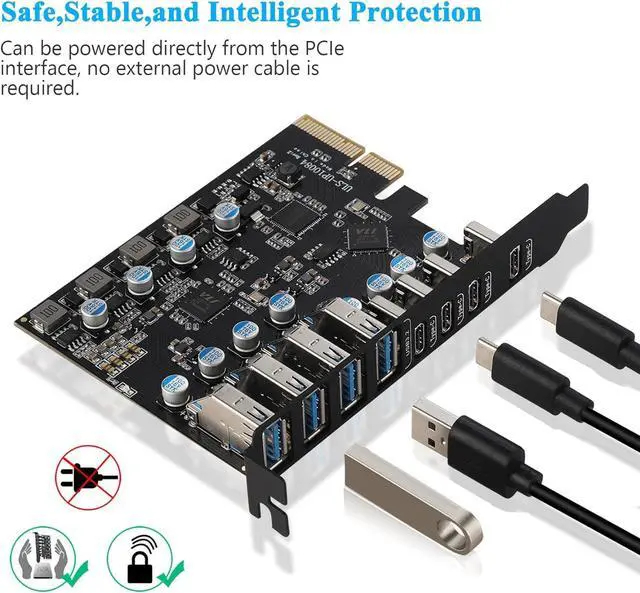

- 8 Port PCIe USB Card - Supports the expansion of 4x USB Type-A ports and 4x USB Type-C ports of PCIe x4 card slots in desktop PCs, workstations and NAS data centers so that more wired USB peripheral can be connected to the computer system. (Only supports the transmission of data signals, not video signals, Thunderbolt protocol, monitor.)
- Fast Transfer Speed - The PCIe USB 3.2 / 3.1 gen 2 Card is equipped with a bandwidth of 10Gbps that ensures fast data transfer. A must-have for external hard drives and ideal for file backup, video editing and data recovery
- Wide Compatibility - Operating System Supports Windows XP/Vista/2008 Server/7/8/10 and Mac Pro 4.1,5.1,7.1(models 2010 to 2020) / Linux Mint ,Ubuntu 20.04 system . Note: Windows XP,/Vista/7, Server,requires driver installation, Windows 10 and Mac OS 10.8.2 above don't need drivers. PCIe usb 3.2/3.1 gen 2 card Fits PCI Express x4, x8 or x16 slot .If you run into compatibility issues/not working, let me konw

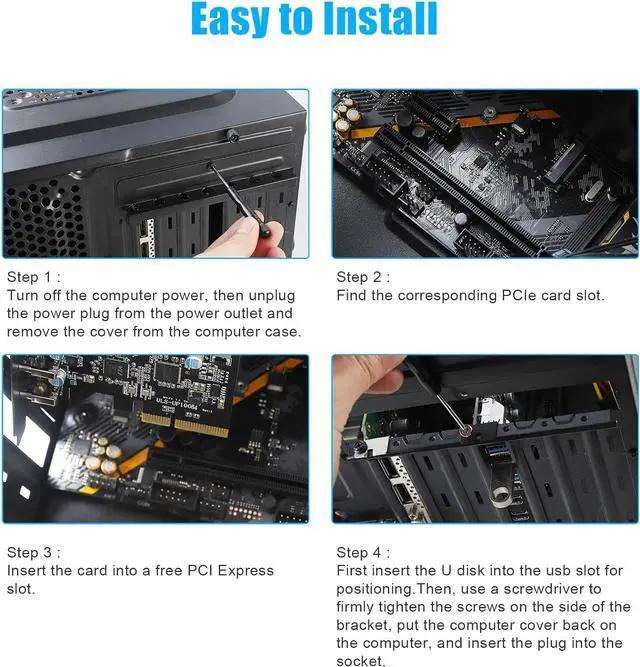

- Installation - Turn off the PC and unplug the power plug from the socket, remove the PC case, insert the card into the PCI-E slot,Since the card USB A port is vertical, Insert the U disk/usb cable into the usb slot for positioning. tighten the screws, close the PC case cover, turn on the PC and install the driver. For the narrow rear slot area of the PC host, you need to just cut the crossbar between the two slots with small sheet metal hand pliers
- What You Get - Packing List: 1 x PCIe USB card,1 x CD drive,1 x mounting screws and 1 x user manual. In addition, this card comes with an industry-leading 2 years-product-care and 24/7 technical-support
