8K KVM Switch, DP USB C Switcher 2 in 1 Out Switches for 2 PC Share Keyboard Mouse Printer and 1 Monitor, Support Full HD 8K@60Hz with One Button Switch, 2 USB C Cable and 1 USB-C Power Cable
Limited time offer, ends 06/23 By Jansicotek
- Specifications of USB-C 2PC Input 1 DisplayPort Output 8K KVM Switch

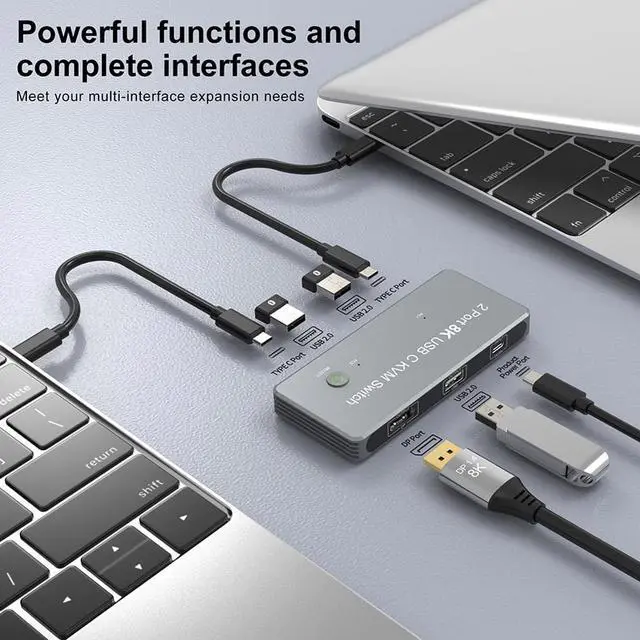

- Input Port: 2 x USB Type C Female Port for USB-C PC Input,1xUSB Type-C Female for Power
- Output Port: 1 x DP Female Port,3 x USB 2.0 A Female Port
- Bandwidth: DP 1.4: 32.4Gbps/USB 2.0: 480Mbps

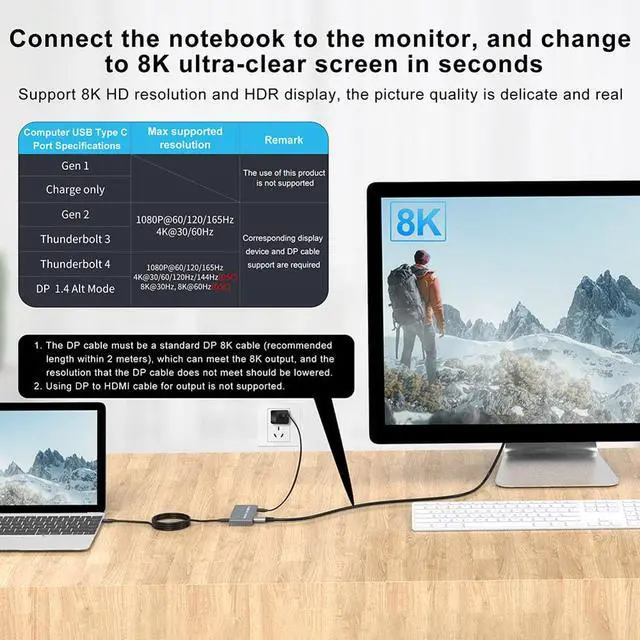

- DP Output Resolution: 1080P@60Hz/120Hz/165Hz, 4K@60/120Hz/144Hz(DSC), 8K@30, 8K@60Hz(DSC)
- DP Deep Color: 8bit / 10bit / 12bit
- DP Chroma: 4:2:0 / 4:2:2 / 4:4:4
- Chassis: Aluminium alloy Shell
- Dimension: 123mm(L)x54.0mm(W)x13.0mm(H)
- Cable Length: 2.0m Max(Standard 8K DP cable)
- Extra Power Supply: Required,via a USB A to USB-C Cable to your USB Devices or Power Adapter
- Accessories: 2xUSB-C 3.1 Gen-2 Cable/1xUSB A to USB C Power Cable/user Card/User Manual
- Package: Box,Package size:137*137*38mm

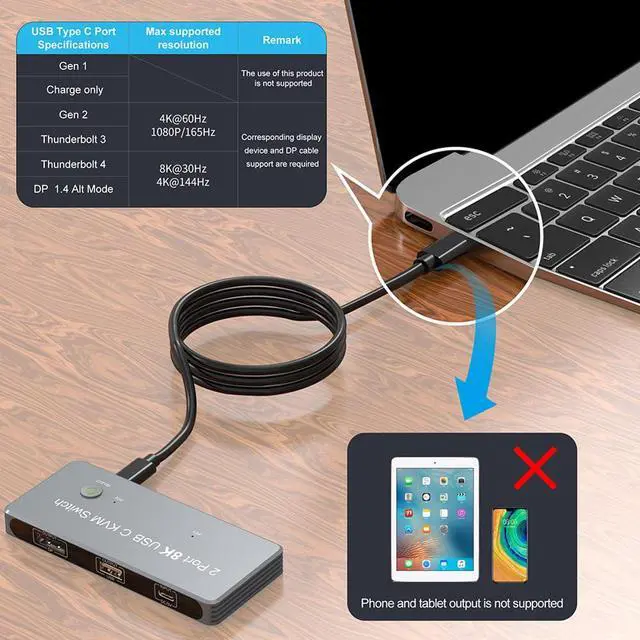

- USB-C Standard: Thunderbolt 3 /USB-C Gen 2 max supports 4K@60Hz,even DisplayPort supports DP 1.4
- DisplayPort Standard: DisplayPort Standard 1.4 Alternate Mode,if USB-C Ports supports Thunderbolt4 ,you can max output 4K@144Hz
+
+
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Jansicotek TJ-A0126
| Brand | Jansicotek |
|---|---|
| Series | TJ-A0126 |
| Model | TJ-A0126 |
| Type | DisplayPort, USB |
|---|---|
| PC Connectors | USB-C cable |
| Computer Connections | 2 Ports |
| Monitor Connections | 1 Port |
| Video Resolution | 7680×4320 |
| PC Selection | Manual Switch |
| AutoScan Interval | 3 seconds |
| Bandwidth | DP 1.4: 32.4Gbps/USB 2.0: 480Mbps |
| LED Indicators | Yes |

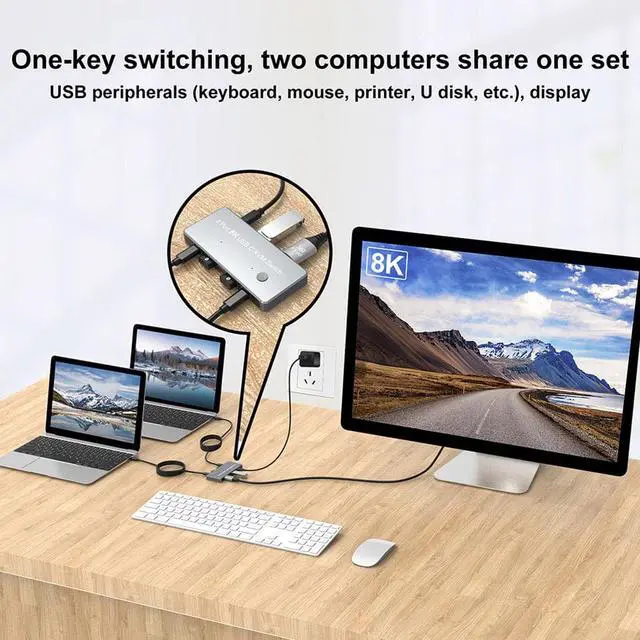

| Application | 2PC Share 1 Monitor and One Keyboard Mouse,KVM Switch Displayport,Support 8K@60Hz 4K@144Hz 3D 1080P |
|---|---|

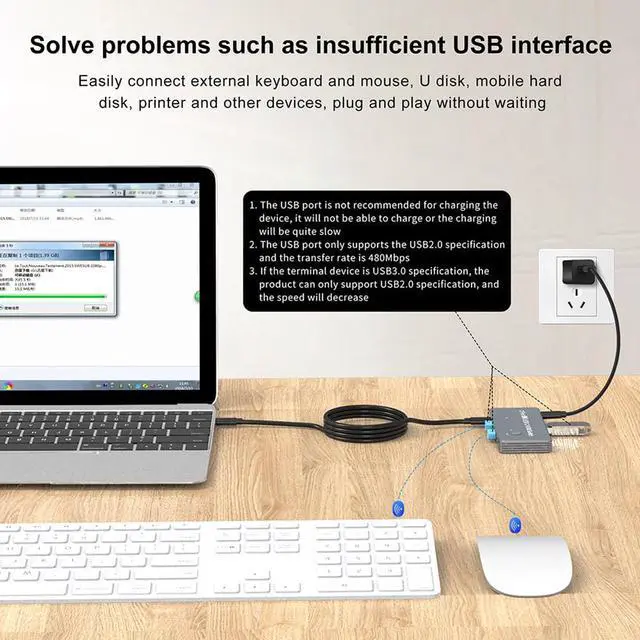

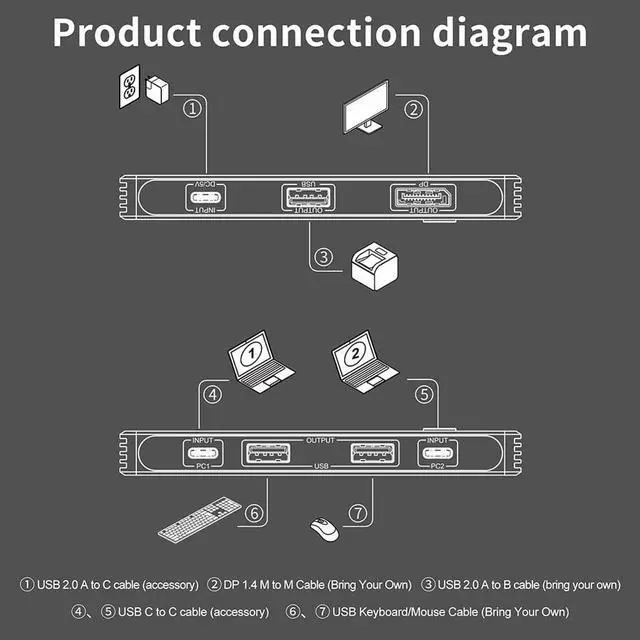

| Features | 2xUSB-C 8K KVM Switch with one DisplayPort 1.4 Port for Video,with this 2 Port 8K KVM Switcher,you are able to connect from the switcher's two PC Input Port to your USB-C PC/Laptops via two standard USB-C Gen-2 Cable,then connect from the switcher's Standard DP 1.4 Port to your DisplayPort Monitors via your own displayport 8k Standard Cable,you can press the "select"button to switch between two of your PCs.Note:You must plug our USB C to USB A cable to power the switcher while working With 3xUSB2.0 Output Port,two Computers share one set,you can connect 3xUSB2.0 Output to your USB Mouse,Keyboard,Printer,Disks,or other usb devices,while you switch from one PC to another PC,Your USB device will be synced to your external display without pluging and unpluging the related USB device repeatedly.The USB Port supports the USB2.0 Specifications and the transfer rate is 480Mbps DisplayPort 1.4 HDR Video Output,with this switch,you can max output 8K@60Hz 4K@144Hz resolution in your external DisplayPort Monitors,This requires that your USB-C pc and DisplayPort cable/Monitors should both supports the max resolution you would like to output,that is,your computer's USB-C port should be thunderbolt 4 and Monitor's DP Port should be DP1.4 Alternate Mode.If laptops with usb-c Gen-2 Port or Thunderbolt 3 Port,it can only max up to 4K@60Hz This USB-C KVM switch equipped with two USB-C Gen-2 Cable as accessories to connect your USB-C Laptops,meanwhile,it includes a USB-A to USB-C Cabler for Power.With Multiple USB Ports,solved the problems of insufficient USB Interface,Two computers share one screen, and connect USB devices such as mouse and keyboard synchronously.Notes:The PC1 Input and PC2 Input only connect to your USB-C PC,these two ports are forbidden to connect to your USB-C Hub Widely used in many occasions:Our This USB-C Switch is easy to use and can be widely used in Studying, Entertainment, Work and other Occasions, ultra-High-Definition Smooth V |
| Dimensions | 5.43 x 5.35 x 1.46 inches |
|---|---|
| Weight | 9.52 Ounces |
| Package Contents | 1 x DP KVM Switch, 2 x USB-C Cable, 1 x USB-A to USB-C power cable |
|---|
