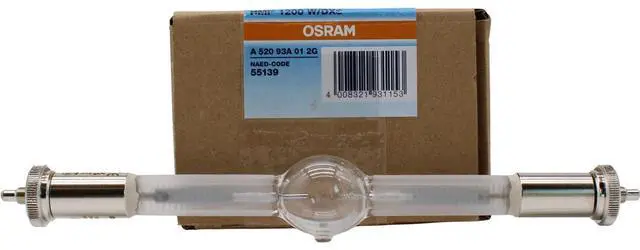

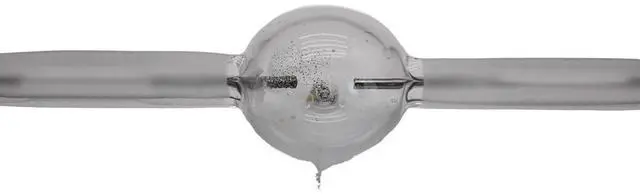

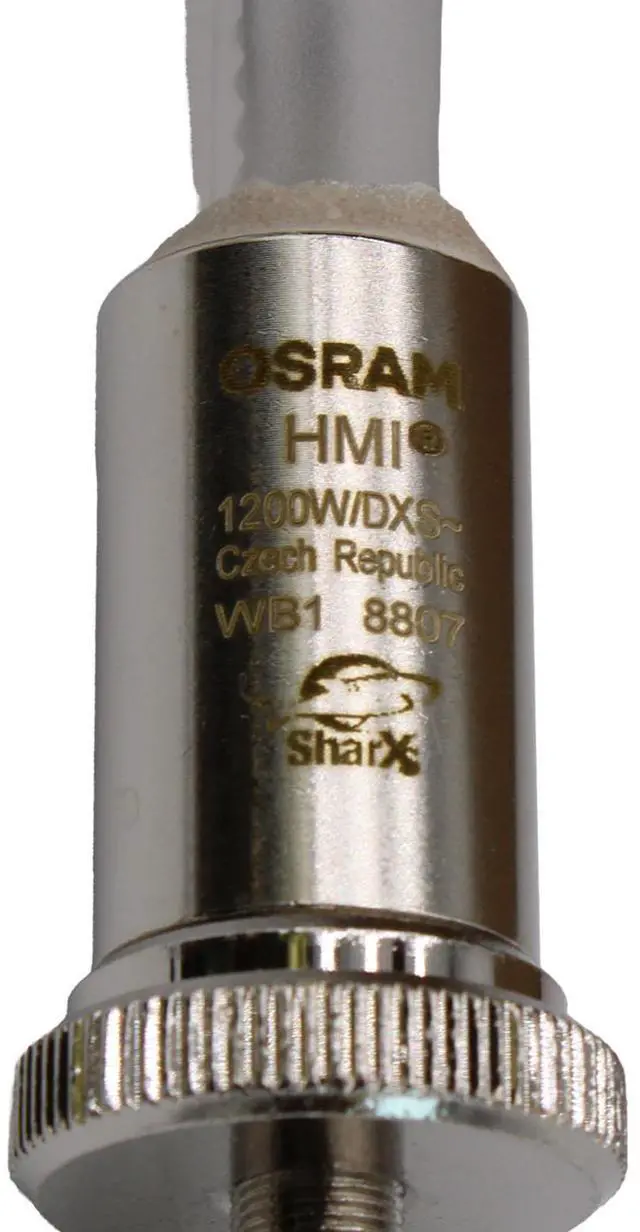

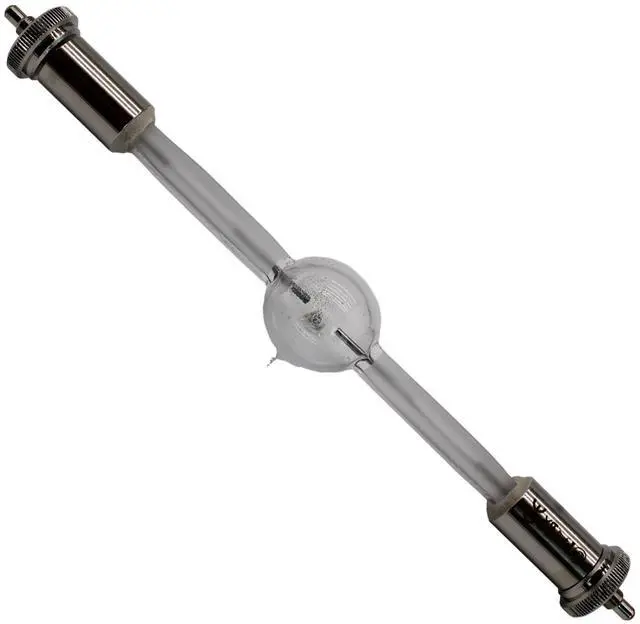

HMI 1200W/DXS SFc15.5 Double Ended Lamp Powered by - 55139

This Osram 55139 HMI 1200 W/DXS Double Ended 1200W / 100V Lamp works with the following units: Clay Paky Golden Scan 4, Clay Paky Golden Scan HPE, Clay Paky Astroscan, Clay Paky Super Scan Zoom, Clay Paky Stage Scan, Clay Paky V. I. P. 1200, Clay Paky Shadow QS-LT, Clay Paky Shadow QS-ST, Clay Paky Shadow Basic HMI 1200, Altman Long Throw Explorer, Altman Explorer Spotlight, Lycian Followspot 1271, ARRI 512-200 (ARRI HMI1200), DESISTI LIGHTING RAFFAELLO 2010, FAL DAYLIGHT 1200EB, FAL NEW OPERA 1200 MK2, FAL OPERA 1200 EB MK2, FAL VOYAGER 1200EB, LAMPO VOGUE 1200 HMI, LAMPO-SAGITTER INFINITY CLUB 1200 HMI, LAMPO-SAGITTER INFINITY LIVE 1200 HMI, LAMPO-SAGITTER INFINITY MSZ 1200 HMI, LAMPO-SAGITTER TRACER 1200 HMI, MOLE RICHARDSON 6151 (HMI MOLE SOLAR-ARC 1200W), MOLE RICHARDSON 6251 MOLE SOLAR-ARC HMI1200, MOLE RICHARDSON 6301 MOLE SOLAR-ARC HMI1200, MOLE RICHARDSON HMI MOLE SOLAR-ARC 1200W, MOLE RICHARDSON MOLE SOLAR-ARC 1200W, OMNISISTEM LANCER 1200 FOLLOWSPOT, OMNISISTEM ORLAND FOLLOWSPOT, OMNISISTEM PR-1211, OMNISISTEM PR-2902 HMI, OMNISISTEM SOLO 1200 MOVING YOKE HMI, OMNISISTEM W1163L, ROBERT JULIAT LUCY, ROBERT JULIAT SUPER KORRIGAN, SGM GALILEO II 1200 SCANNER 1200W, SGM GALILEO IV 1200 SCANNER, SGM NEWTON 1200 FOLLOW SPOT, STRAND LIGHTING FRESNEL QTZCOLOR 10-IN 1200W HMI, STRAND LIGHTING SOFTLIGHTS QTZCOLOR 1200W, STRONG 41080L TRUSS TRUOPER, STRONG 41080M TRUSS TRUOPER, STRONG 41800S TRUSS TRUOPER, STRONG TRUSS TRUOPER, STUDIO DUE PHOTOWALL 1200E, SUNBURST FRESNEL 10 1200HMI, TECHNI-LUX CRESCENDO, TECHNI-LUX EL-CRESCENDO, and more! -
Cross Reference List: - Osram 54066 HMI 1200 W/GS (discontinued and replaced by this bulb) - OSRAM 55139 HMI 1200 W/DXS - PHILIPS MSI 1200 - GE CSR 1200/DE - USHIO UMI - 1200/GSProduct features and benefits - High intensity light providing true color performance with a CRI90 - Longer life with heat dissipating round moly-foil design on lamps 6000W - Mechanically robust with eXtreme Seal (XS) technology, up to 450°C at the pinch seal - Capable of hot restrike ignition - High color stability with average changes in color temperature during lamp life only 1°K/hr - Dimmable down to 40% with stable color using many electronic ballasts - High energy efficiency providing up to 100 LPW - Compression sealed base provides ehanced durability - Areas of application - Studio, TV and film - Professional Photography - Solar Simulation - Technical Data - General product information - Product Number - 55139 - Product Name - HMI1200WDXS 10/CS 1/SKU - Ordering Abbreviation - HMI 1200 W/DXS - Brand Name - OSRAM - Family Brand Name - HMI - General Description - 1, 200 watt, metal halide, double-ended, 6000K - Application - Film, TV Video Production. Studio Lighting - Product Remark - Optimized lamp eXtreme Seal (XS) technology to withstand interior base temperatures of up to 450 degrees celsius.

- Electrical data - Nominal Wattage - 1200 W - Nominal Voltage - 100 V - Current (A) - 13.8 A - Type of Current - AC - Light technical data - Luminous Flux - 110000 lm - Light Center Length - LCL (mm) - 90 mm - Color Temperature - 6000 K - Average Rated Life - 1000 h - Physical attributes - Base - SFc 15.5 - Bulb Shape - KO128 - Maximum Overall Length (mm) - 220 mm - Length l1 (mm) - 220 mm - Length l1 max. (mm) - 220 mm - Length l2 (mm) - 180 mm - Length l2 max. (mm) - 180 mm - Diameter d (in) - 1.063 in - Diameter d (mm) - 27.00 mm - Electrode Gap - cold (mm) - 10 mm - Reflector Coating - 27.00 - Additional product data - Operating Position - Any - Maximum Base Temperature (ºC) - 450 C - Cooling - Convection - Hot Restart - Yes - Class - C (gas) -
