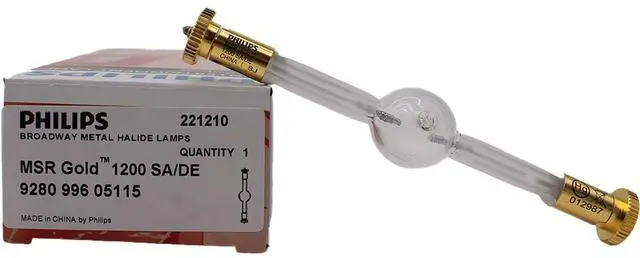

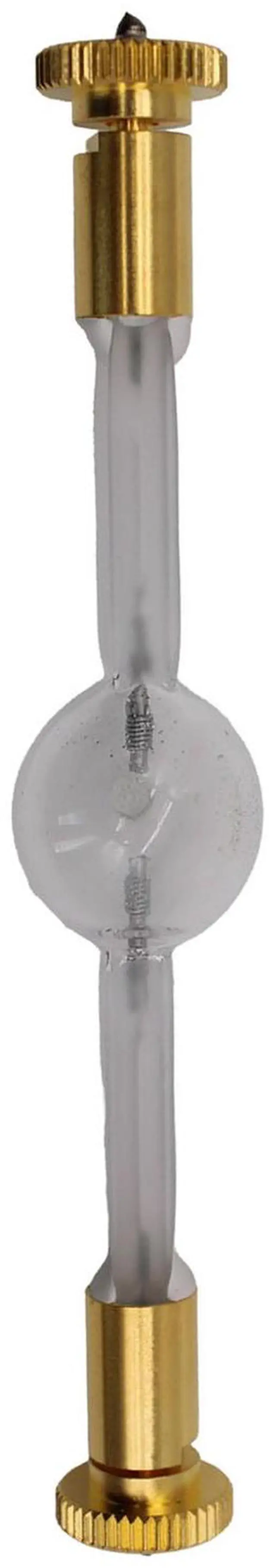

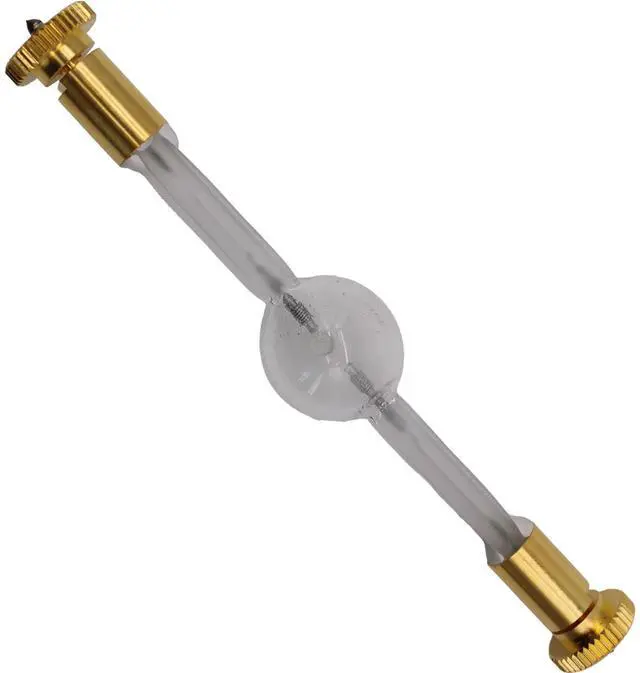

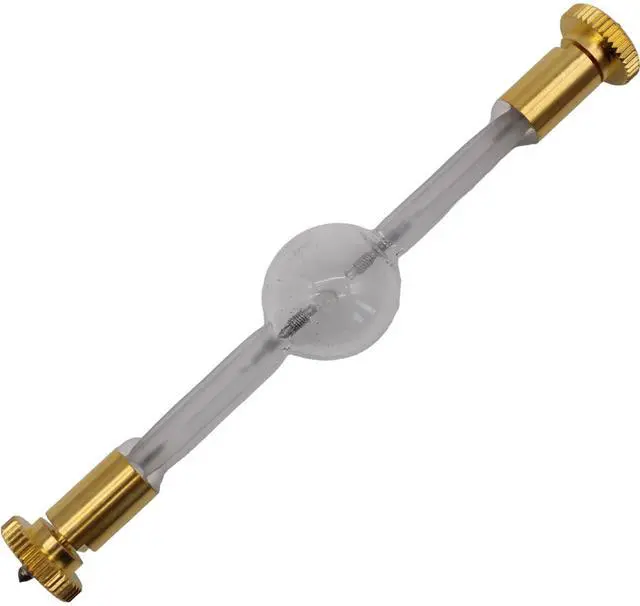

MSR Gold 1200 SA/DE Lamp for the Philips Vari-Lite VL3500Q Spot

1200 SA/DE Replacement bulb for the 28714-4 1200 Watt 100 Volt Metal Halide Lamp.
Applications include: entertainment, effect and architectural lighting.
Jaspertronics OEM MSR 1200 SA/DE Gold metal halide, double ended, 6000K, 109000 Lm, SFC10-4 base
Features: - Enables use at higher temperatures in any burning position. Longer lifetime, fewer early failures, consistent performance over time - Pure, white light; color point close to black body line. Consistent color impression over MSR Range - Reduces early lamp or lamp holder failures

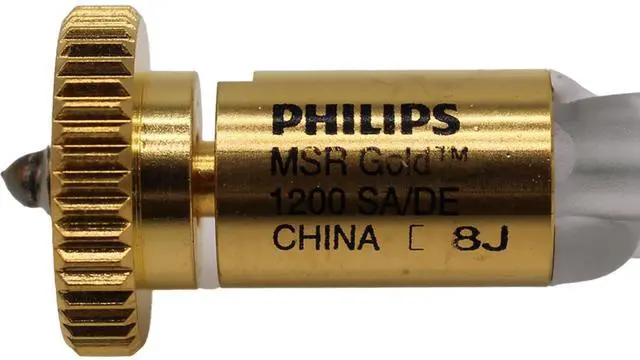

To optimize the total lifetime of the double ended MSR Gold MSR 1200 SA/DE double ended lamps, the caps are plated with gold. This provides superior heat protection and thereby minimizes premature failure of the lamp and lamp holder, as well as ensuring extended consistent performance. In addition, the highly innovative P3 technology, developed by Jaspertronics OEM, allows the lamp to be used at higher temperatures, which further extends service life and consistency of high-quality light output.












SPECIFICATIONS



Volts
100


Lamp Type
Metal Halide


Bulb Shape
T 6.5


Base
SFC 10-4


Rated Life Hours
750


Watts
1200


Current
13.6


Nominal Lumens
110000


MOL (inches)
5.35


MOL (mm)
136


Arc Length (mm)
7


Color Temperature
6000 Kelvin


CRI
85






Product features

eXtreme Seal technology for discharge lamps

Product benefits

Lamp and holder from a single source
Rapid relamping with bayonet lock

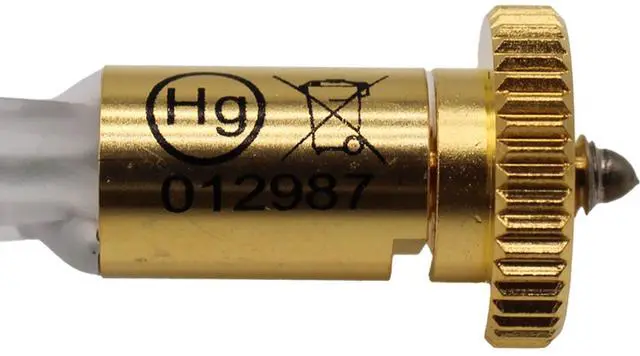

Safety adviceBecause of their high luminance, UV radiation and high internal pressure during operation, Lok-it! lamps may only be operated in enclosed lamp casings specially constructed for the purpose. Appropriate filters must ensure that UV radiation is reduced to an acceptable level. Mercury is released if the lamp breaks. Special safety precautions must be taken. Information on safety and handling is available on request or can be found in the leaflet included with the lamp or in the operating instructions.
The MSR Gold 1200 SA/DE Jaspertronics OEM 287144 is used in following equipment:
Vari-Lite VL3000 Spot Vari-Lite VL3000 Wash Vari-Lite VL3000 Q Spot Vari-Lite VL3000 Q Wash Vari-Lite VL3500 Spot Vari-Lite VL3500 Q Spot Chauvet Followspot 1200 Martin MAC 2000 Profile II Martin MAC 2000 Performance II Lycian 1271 Stark Lite Lycian 1275 Super Star 1.2 Lycian M2 1200 Elation Stage Color DMX-512 Clay Paky Stage Profile Clay Paky Stage Zoom Coemar i-Spot 1200 / 1200 EB Coemar ShowColor 1200 EB Controlite (Amptown) PML Zoom Deliya X-7 F. A. L. Three-Sixty 1200 Pro Fine Art V-2002, 2008, 2009 Fine Art FINE 2000 Wash Fine Art FINE 2000 Spot Fine Art FINE 3000 Bruning 1200 GENI Stratos GENI OBY 2000 GLP Patend Light 1200 Griven Acrobat PE 1200 JB Lighting Varyscan 7 1200HMI JB Lighting Varycolor 7 1200HMI Lycian Stage Lighting 1275 SUPERSTAR 1.2 Martin MAC 2000 Profile Martin MAC 2000 Wash Martin MAC 2000 Beam Pearl River Pilot 1200 Spot Pearl River Pilot 1200 Wash Vari-Lite VL3000Q Spot Vari-Lite VL3500Q Spot Studio Due Excess XS 1200 Martin MAC 2000 Performance Clay Paky Golden Colour 1200 Clay Paky Golden Spot 1200 Clay Paky Stage Color 1200SV Clay Paky Stage Profile 1200SV Clay Paky Stage Profile Plus SV Clay Paky Stage Zoom1200SV Clay Paky VIP 1200 Coemar i Spot 1200 GENI OBY 1200 JB Lighting Varyscan 7 Martin Mac 2000 Vari-Lite Vl 3000 wash PROEL Dreamlight X Y Systems Xy 2001 X Y Systems ZAP Color
