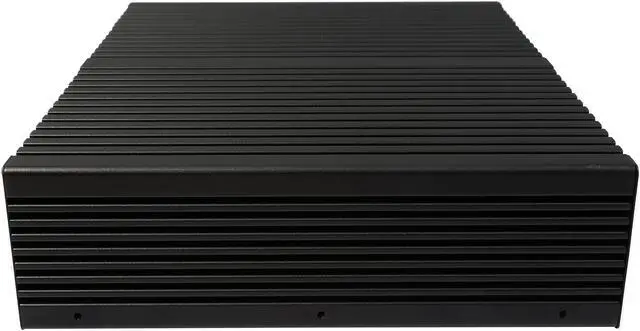

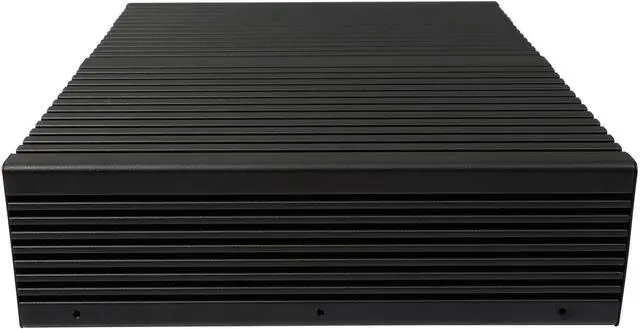

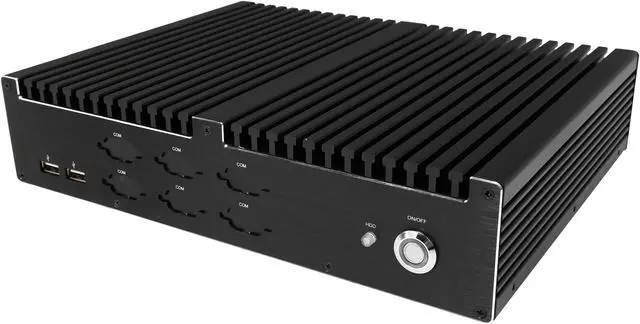

Jetway HBJC501F9QUW-Q87-B Fanless Intel 4th Generation Intel Core i7/i5/i3 Barebone w/TPM IC Onboard, HDMI, DVI-D, VGA Support iAMT9.0 w/ WiFi
- 4th Generation Intel Core i7 / i5 / i3 / Pentium Processor < 45W Socket LGA 1150 (Formerly Haswell)
- Intel Q87
- 4 x 204Pin SO-DIMM DDR3 1600
- Requires Intel Core processor with Intel HD Graphics
Specs
Reviews (1)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the JETWAY HBJC501F9QUW-Q87-B
| Brand | JetWay |
|---|---|
| Model | HBJC501F9QUW-Q87-B |
| Color | Black |
| CPU Type | 4th Generation Intel Core i7 / i5 / i3 / Pentium Processor < 45W |
|---|---|
| CPU Socket | Socket LGA 1150 (Formerly Haswell) |
| North Bridge | Intel Q87 |
|---|
| Memory installed | No Memory |
|---|---|
| Memory slot | 4 x 204Pin SO-DIMM |
| Memory Type Supported | DDR3 1600 |
| Max Memory Supported | 16GB |
| Dual Channel Memory Supported | Yes |
| Other | 1 x PCI-E 2.0 x4 Slot 1 x Shared mSATA/mini-PCI Express Combo slot (Full-size) 1 x Mini-PCI Express Slot (Half-size) |
|---|
| Hard Drive Installed | No Hard Drive |
|---|---|
| Serial ATA | 4 x SATA 6.0Gb/s |
| SATA RAID | RAID 0/1/5/10/JBOD |
| Onboard Video | Requires Intel Core processor with Intel HD Graphics |
|---|
| Onboard Audio | Realtek ALC662 |
|---|
| First LAN | Intel i217LM PHY Gigabit LAN (iAMT 9.0) |
|---|---|
| Second LAN | Intel i211AT PCI-E Gigabit LAN |
| Max LAN Speed | Dual 10/100/1000Mbps |
| 2.5" Internal bays | 1 x 2.5" SATA Drive Bay |
|---|
| Front USB | 2 x USB 2.0 ports |
|---|---|

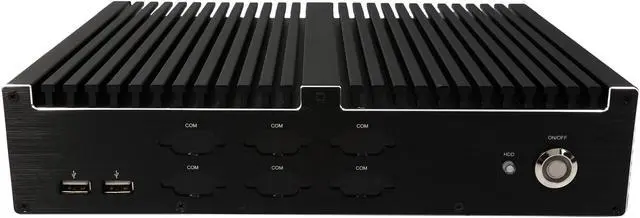

| Other Front Ports | 1 x Power Button 1 x HDD LED 6 x DB9 punchouts |
| COM | 3 x RS232 COM port 1 x RS232/422/485 jumperless COM port |
|---|---|
| VGA | 1 x VGA (up to 1920 x 1080) 1 x DVI-D (up to 1920 x 1080) |
| HDMI | 1 x HDMI (up to 1920 x 1080) |
| Rear USB | 4 x USB 3.0 |
| RJ45 | 2 |
| Rear Audio Ports | 1 x Line-out jack 1 x MIC-in jack |

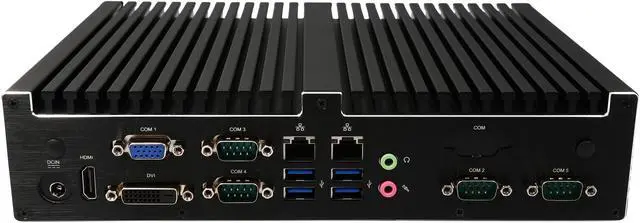

| Other Rear Ports | 1 x +9 ~ +24V DC-in jack (1-pin 2.5mm ID, 5.5mm OD) 2 x SMA Hole for WiFi Antenna These connectors may not be fully usable with chassis closed, but the information is provided for customer alternative uses. 1 x Chassis Intrusion header 1 x AT/ATX mode select jumper 1 x 8-bit GPIO Header |
| Dimensions | 2.3" x 10.24" x 8.19" |
|---|---|
| Environment | Operating Temperature: 0 ~ 40°C Storage Temperature: -20 ~ 85°C |
| Features | Fanless Embedded Barebone System with Planned Lifecycle Through Q1’2018 Fanless Black Aluminum Enclosure Socket LGA1150 Supporting 4th Generation Intel Core i3, i5, i7 Processors (Haswell), Up to 45W Supports DDR3-1600 SODIMM up to 16GB Total Supports up to 3 Displays, HDMI, DVI, VGA 1 * 2.5" SATA3 6Gb/s Internal Drive Bay 1 * Full-size mSATA/mini-PCIE Shared Slot 1 * Half-size mini-PCIE Slot 2 * Intel Gigabit LAN, vPro & iAMT 9.0 Supported Onboard Nuvoton TPM IC 4 * USB 3.0 Ports, 2 * USB 2.0 Ports 4 * Serial Ports (2 * RS232/422/485, 2 * RS232) Watchdog Timer, 120W 19V AC Adapter Includes Wall Mount and DIN Rail Clips Only 58.5 x 208 x 260mm (2.3" x 8.19" x 10.24") |
|---|

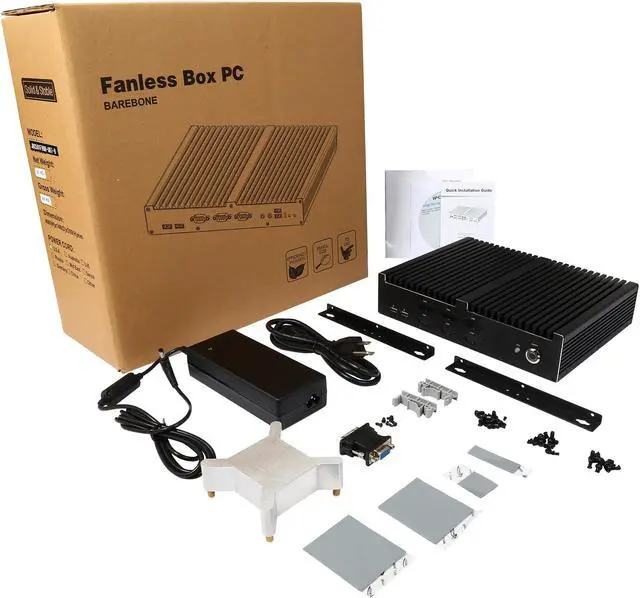

| Package Contents | Standard Accessory: 19V 120W AC-DC Adapter x1 Power Cord x1 Wall Mount Kit DVI-to-VGA adapter x1 DIN RAIL x2 DVD Disk x1 Manual x1 WIFI antenna (with HBJC501F9QUW-Q87-B model) |
|---|
| First Listed on Newegg | March 13, 2015 |
|---|
