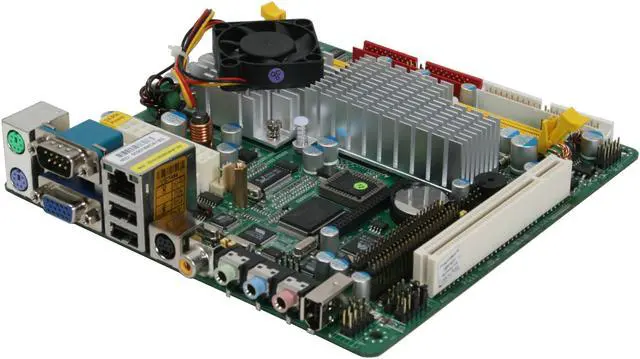

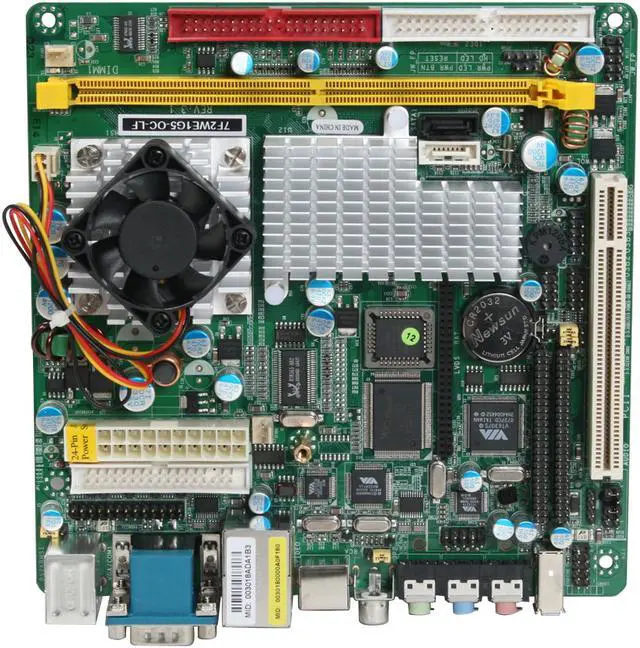

JetWay J7F2WE1G5-OC-LF VIA C7 (1.5GHz) VIA CN700 Mini ITX Motherboard / CPU Combo

(3) Write a Review
  • VIA C7
  • DDR2 533
  • VIA UniChrome Pro
Specs
Reviews (3)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the JETWAY J7F2WE1G5-OC-LF

Model
Brand JetWay
Model J7F2WE1G5-OC-LF
Combo Type Motherboard / CPU Combo
Bundle
CPU VIA C7 (1.5GHz)
With Cooler Yes
Supported CPU
CPU Type VIA C7
FSB 400/800
Chipsets
North Bridge VIA CN700
South Bridge VIA VT8237RP
Memory
Number of Memory Slots 1x240pin
Memory Standard DDR2 533
Maximum Memory Supported 1GB
Expansion Slots
PCI Slots 1 x PCI Slot
Other Slots 2 x AD Connector With Expansion Daughter Boards
Storage Devices
PATA 2 x ATA 100 4 Dev. Max
SATA 2 x SATA 1.5Gb/s
SATA RAID 0/1
Onboard Video
Onboard Video Chipset VIA UniChrome Pro
Onboard Audio
Audio Chipset VIA VT1617A
Audio Channels 6 Channels
Onboard LAN
LAN Chipset VT6103CL PHY
LAN Speed 10/100Mbps
Max LAN Speed 100Mbps

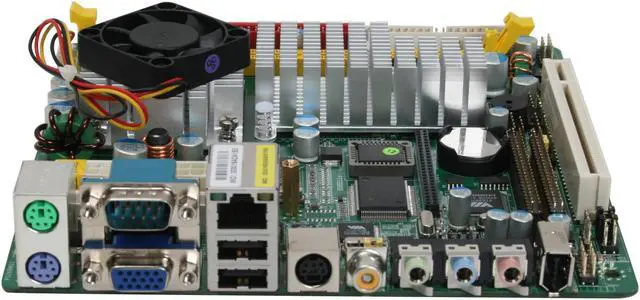

Rear Panel Ports
PS/2 2
COM 1
Video Ports D-Sub + TV-Out
S-Video 1
USB 1.1/2.0 2 x USB 2.0
IEEE 1394 1 x IEEE 1394a
Audio Ports 3 Ports
Internal I/O Connectors
Onboard USB 6 x USB 2.0
Onboard 1394 1 x 1394a
Physical Spec
Form Factor Mini ITX
Dimensions (W x L) 6.7" x 6.7"
Package Contents
Package Contents J7F2WE1G5-OC-LF
Driver Disk
User Manual

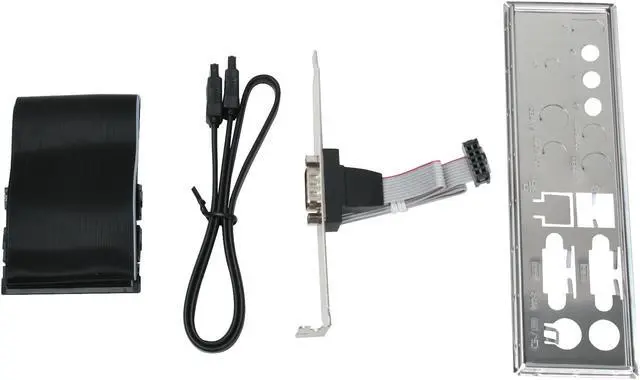

Rear I/O Panel Shield
IDE/PATA Cable
SATA Cable
COM Bracket
Additional Information
First Listed on Newegg December 27, 2007

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 2 years
  • Limited Warranty period (labor): 2 years
