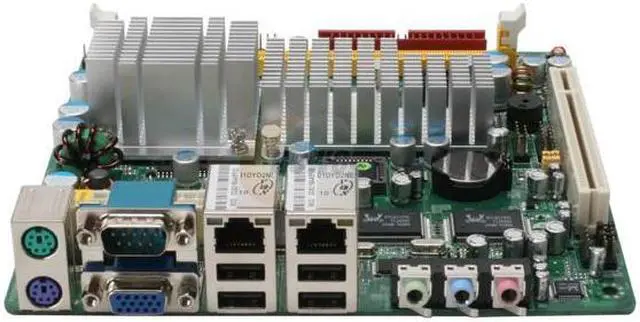

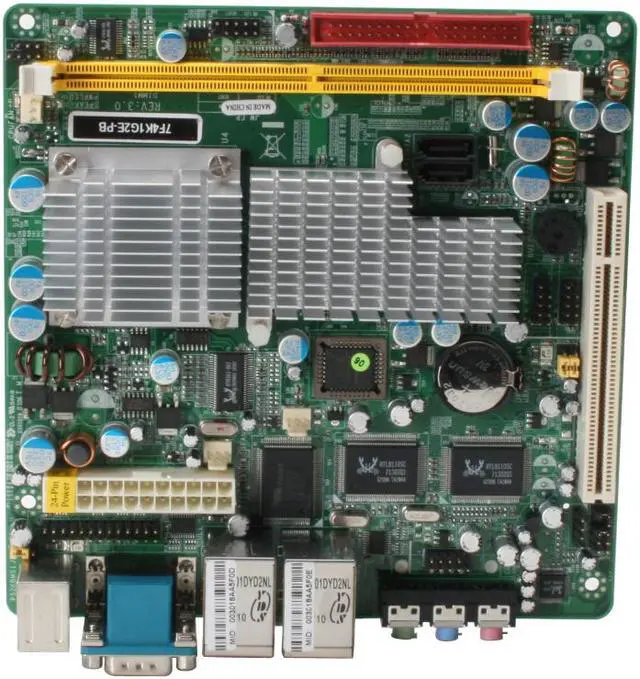

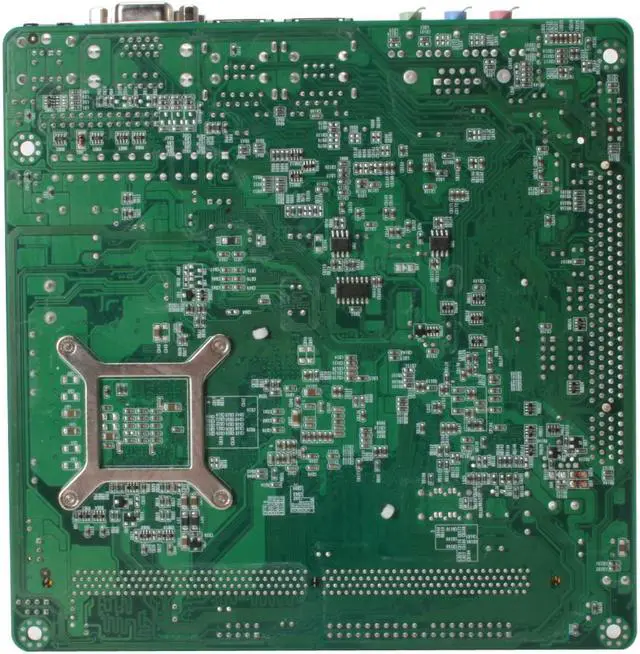

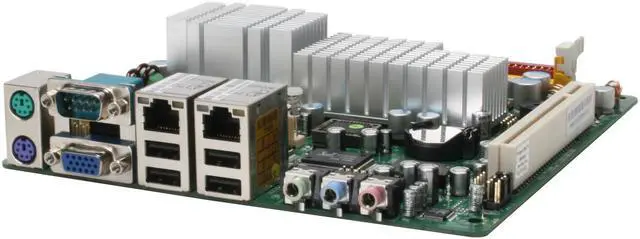

JetWay J7F4K1G2E-PB Embedded VIA NanoBGA C7 VIA CN700 Mini ITX Motherboard / CPU Combo
- VIA C7
- DDR2 400
- S3 Graphics UniChrome Pro IGP
Specs
Reviews (16)
Any questions? Our AI mode will help you find out quickly.
Try me now
Learn more about the JETWAY J7F4K1G2E-PB
| Brand | JetWay |
|---|---|
| Model | J7F4K1G2E-PB |
| Combo Type | Motherboard / CPU Combo |
| CPU | Embedded VIA NanoBGA C7 |
|---|
| CPU Type | VIA C7 |
|---|---|
| FSB | 133/100 MHz |
| North Bridge | VIA CN700 |
|---|---|
| South Bridge | VIA VT8237RP |
| Number of Memory Slots | 1x240pin |
|---|---|
| Memory Standard | DDR2 400 |
| Maximum Memory Supported | 1GB |
| PCI Slots | 1 x PCI Slot |
|---|
| PATA | 1 x ATA 100 2 Dev. Max |
|---|---|
| SATA | 2 x SATA 1.5Gb/s |
| SATA RAID | 0/1 |
| Onboard Video Chipset | S3 Graphics UniChrome Pro IGP |
|---|
| Audio Channels | 6 Channels |
|---|
| LAN Chipset | Realtek 8110SC |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| Second LAN Chipset | VIA VT6103CL |
| Second LAN Speed | 10/100Mbps |
| Max LAN Speed | 1Gbps + 100Mbps |
| PS/2 | 2 |
|---|---|
| COM | 1 |
| Video Ports | D-Sub |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 3 Ports |
| Onboard USB | 6 x USB 2.0 |
|---|
| Form Factor | Mini ITX |
|---|---|
| Dimensions (W x L) | 6.7" x 6.7" |
| First Listed on Newegg | July 18, 2007 |
|---|
